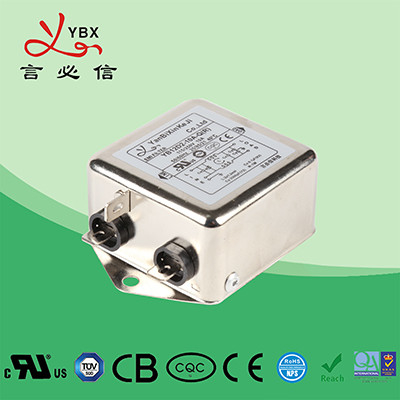

Wholesale AC EMI FILTER noise filter power line 6A,10A EMC two-stage enhanced performance

Wholesale AC EMI FILTER noise filter power line 6A,10A EMC two-stage enhanced performance

three phase emi filter

3 phase emc filter

Place of Origin:

China

Brand Name:

YBX

Certification:

cUL,UL, CE, TUV, ROHS, ISO

Model Number:

YB27D2-6A-Q

Contact Us

Request A Quote
Product Details
Item:
YB27D2-6A-Q
Rated Voltage:
115V/250V
Rated Current:
1A-100A
Environmental Temp:
40°C
Temperature Range:
25 / 085 / 21
Operating Frequency:
50/60HZ
Line To Line:
1450VDC
Line To Ground:
2250VDC Or 2000VAC
MOQ:
Negotiated
Certificate:
CUL, UL, CE, TUV, ROHS, ISO
Payment & Shipping Terms
Minimum Order Quantity
Negotiated
Price
Negotiable
Packaging Details
56.5*28.5*22.5CM
Delivery Time
15-25 days
Payment Terms
T/T, L/C
Supply Ability
50000pcs per month
Product Description

Wholesale AC EMI FILTER noise filter power line 6A,10A EMC two-stage enhanced performance



Technical Specification:



Item Single-Phase EMI Filter
Model Singe-Phase EMI Filter
Transfer Function Low Pass
Package Type Surface Mount
Nominal Center Frequency 10K-30MHZ
Insertion Loss 50~100dB
Input Impedance 50Ω
Rated Voltage 115V/250V
Rated Current 1A-100A
Environmental Temperature 40°C
Temperature Range 25 / 085 / 21
Operating Frequency 50/60HZ
Line to Line 1450VDC
Line to Ground 2250VDC or 2000VAC
Maximum Leakage Current 250VAC 50/60HZ 0.4-0.8mA Max
MOQ negotiation
Price

negotiation

Lead Time 10~25 weekday for Low Pass EMI Filter



Features:



--  Designed 2 stage enhanced filtering to prevent the power supply may produce interference to the device;

--  Various terminal options allow you to select.

--  There are a variety of parts and combinations to meet different customer's EMC tests

--  Customized products according to customer's requirements



Typical Applications:



--  Electrical and electronic equipment

--  Medical equipment

--  Building automation

--  Office automation and datacom equipment



Rule of Nomination:



YB    24     D2    -    6A    -    Q

            ¦         ¦                ¦             ¦

      circuit  case    current      Q: fast-on

                                                 S: screw

                                                 W: wire-lead

Electrical schematic:


Wholesale AC EMI FILTER noise filter power line 6A,10A EMC two-stage enhanced performance 0
Mechanical Dimension(Unit: mm)

Wholesale AC EMI FILTER noise filter power line 6A,10A EMC two-stage enhanced performance 1




Insertion loss table(In 50ohm system according to IEC/CISPR No.17)

Wholesale AC EMI FILTER noise filter power line 6A,10A EMC two-stage enhanced performance 2



Factory environment:



Wholesale AC EMI FILTER noise filter power line 6A,10A EMC two-stage enhanced performance 3

Wholesale AC EMI FILTER noise filter power line 6A,10A EMC two-stage enhanced performance 4

Wholesale AC EMI FILTER noise filter power line 6A,10A EMC two-stage enhanced performance 5



Certification and Patent:

Wholesale AC EMI FILTER noise filter power line 6A,10A EMC two-stage enhanced performance 6

Wholesale AC EMI FILTER noise filter power line 6A,10A EMC two-stage enhanced performance 7



Single Phase Filter:
cUL:20190321-E471748
TUV:B0899310001Rev.01
CQC:19001226449
CE:SZAIS180620005-01
ROHS:MMCRHRWM60371744
Three Phase Filter:
cUL:20190325-E502442
ENEC:ENEC-02580
CE:SZAIS180620005-01
ROHS:MMCRHRWM60371744



Sample

--- Sample Fee: Negotiated

--- Sample Time: 3~5 days



Payment

--- Payment terms: Western Union, D/P, T/T,L/C

--- Please remember to leave the correct contact information for delivery.



Our Advantages:



  • We are a listed company. NO:667344, brand guarantee, reliable quality
  • We have UL; cUL; TUV; CQC; CE; ROHS; ISO9001:2015; REACH certification to ensure the product quality
  • We have the relevant professional experimental equipment, so we can provide a free diagnostic conducting test for you.
  • Free EMC rectification technical support and provide free test samples
  • Automation technology, scale production, excellent price
  • Good service, fast delivery!
  • After-sales service: free replacement within three months, free maintenance within 6 years, life-long maintenance
  • Cooperate with the top scientific research laboratory
  • We have a professional R&D team
