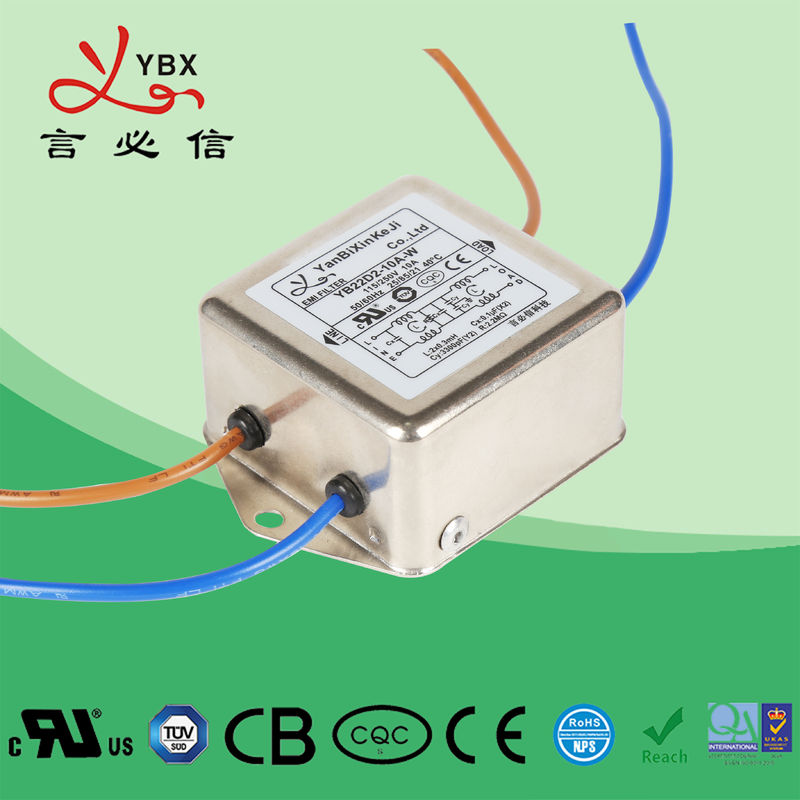

Datacom Equipment AC Line Noise Filter EMI EMC 120V 250VAC Metal Case

Datacom Equipment AC Line Noise Filter EMI EMC 120V 250VAC Metal Case

emc line filter

led emi filter

Place of Origin:

China

Brand Name:

YBX

Certification:

cUL, TUV, CQC, CE, ROHS

Model Number:

YB22D2-6A-S

Contact Us

Request A Quote
Product Details
Item:
YB22D2-6A-S
Current:
1A-20A
Voltage:
125V/250VAC
Frequency:
50/60HZ
Packaging:
Carton
MOQ:
50pcs
Type:
EMI Filter
Case:
Metal
Payment & Shipping Terms
Minimum Order Quantity
50pcs
Price
Negotiable
Packaging Details
56.5*28.5*22.5cm
Delivery Time
20-25 days
Payment Terms
T/T, L/C
Supply Ability
10000 Piece/Pieces per Month Ac 220V General Purpose Noise Filter
Product Description



6A EMI EMC Filter Noise Passive Line Filter for Datacom Equipment 120V/250VAC



Technical Specification:



Item Power line Filter
Model Power line Filter YB-D
Transfer Function Low Pass
Package Type Surface Mount
Nominal Center Frequency 10K-30MHZ
Insertion Loss 60~90dB
Input Impedance 50Ω
Rated Voltage 115V/250V
Rated Current 1~10A
Environmental Temperature 40°C
Temperature Range 25 / 085 / 21
Operating Frequency 50/60HZ
Line to Line 1450VDC
Line to Ground 2250VDC
Maximum Leakage Current 250VAC/60HZ 0.8mA Max
MOQ 50pcs
Price USD2~9.8/Meter
Lead Time 5~20 weekday



Features:



--  YB22 have designed two-stage filtering, with good differential and common-mode attenuation



--  Various terminal options allow you to select



--  There are a variety of parts and combinations to meet different customer's EMC tests



--   Excellent differential and common-mode attenuation







Typical Applications:



1. Electrical and electronic equipment



2. Medical equipment



3. Datacom equipment



4. Office automation equipment



Rule of Nomination:



YB    22    E4   -   10A    -     Q            ( R 5 )

            ¦        ¦               ¦              ¦                   ¦ ¦

     circuit  case     current connection optional



Tabulates:



Model No. Rated Current
@40°C

Terminal Options*

Leakage current 250V/50Hz Electrical Schematic

Rated Voltage(V) Operating Frequency(Hz)


YB22E4-1A 1A~4A Q S W





















<0.8mA

Fig.1





















115/250V





















50/60Hz

YB22E4-6A 6A Q S W Fig.1
YB22E4-8A 8A Q S W Fig.1
YB22E4-10A 10A Q S W Fig.1
YB22E4-15A 15A Q S - Fig.1
YB22D1-1A 1A~4A Q - W Fig.1
YB22D1-6A 6A Q - W Fig.1
YB22D2-6A 6A Q S W Fig.1
YB22D2-8A 8A Q S W Fig.1
YB22D2-10A 10A Q S W Fig.1
YB22D2-15A 15A Q S - Fig.1
YB22D3-8A 8A Q S W Fig.1
YB22D3-10A 10A Q S W Fig.1
YB22D3-15A 15A Q S - Fig.1
YB22D4-10A 10A Q S W Fig.1
YB22D4-15A 15A Q S - Fig.1
YB22D4-20A 20A Q S - Fig.1
YB22D5-15A 15A Q S - Fig.1
YB22D5-20A 20A Q S - Fig.1
YB22D5-30A 30A - S - Fig.1
YB22D6-20A 20A - S - Fig.1
YB22D6-30A 30A - S - Fig.1
YB22F1-20A 20A - S - Fig.1
YB22F1-30A 30A - S - Fig.1
YB22F2-30A 30A - S - Fig.1
YB22F2-40A 40A - S - Fig.1
YB22F2-50A 50A - S - Fig.1
YB22F3-50A 50A - S - Fig.1



Medical Type Tabulates:

Model No. Rated Current
@40°C

Terminal Options

Medical equipment

Leakage current 250V/50Hz Electrical Schematic Rated Voltage(V) Operating Frequency(Hz)


YB22E4-1A-x(5) 1A~4A Q S W 5































<5μA

Fig.2































115/250V































50/60Hz

YB22E4-6A-x(5) 6A Q S W 5 Fig.2
YB22E4-8A-x(5) 8A Q S W 5 Fig.2
YB22E4-10A-x(5) 10A Q S W 5 Fig.2
YB22E4-15A-x(5) 15A Q S W 5 Fig.2
YB22D1-1A-x(5) 1A~4A Q - W 5 Fig.2
YB22D1-6A-x(5) 6A Q - W 5 Fig.2
YB22D2-6A-x(5) 6A Q S W 5 Fig.2
YB22D2-8A-x(5) 8A Q S W 5 Fig.2
YB22D2-10A-x(5) 10A Q S W 5 Fig.2
YB22D2-15A-x(5) 15A Q S - 5 Fig.2
YB22D3-8A-x(5) 8A Q S W 5 Fig.2
YB22D3-10A-x(5) 10A Q S W 5 Fig.2
YB22D3-15A-x(5) 15A Q S - 5 Fig.2
YB22D4-10A-x(5) 10A Q S W 5 Fig.2
YB22D4-15A-x(5) 15A Q S - 5 Fig.2
YB22D4-20A-x(5) 20A Q S - 5 Fig.2
YB22D5-15A-x(5) 15A Q S - 5 Fig.2
YB22D5-20A-x(5) 20A Q S - 5 Fig.2
YB22D5-30A-x(5) 30A - S - 5 Fig.2
YB22D6-20A-x(5) 20A Q S - 5 Fig.2
YB22F1-20A-x(5) 20A Q S - 5 Fig.2
YB22F1-30A-x(5) 30A - S - 5 Fig.2
YB22F2-30A-x(5) 30A - S - 5 Fig.2
YB22F2-40A-x(5) 40A - S - 5 Fig.2
YB22F2-50A-x(5) 50A - S - 5 Fig.2
YB22F3-50A-x(5) 50A - S - 5 Fig.2

Datacom Equipment AC Line Noise Filter EMI EMC 120V 250VAC Metal Case 0*Q: Fast-on 6.35x0.8mm        Datacom Equipment AC Line Noise Filter EMI EMC 120V 250VAC Metal Case 1S: Screw lug          Datacom Equipment AC Line Noise Filter EMI EMC 120V 250VAC Metal Case 2W: UL1015 18awg

Electrical schematic:



Datacom Equipment AC Line Noise Filter EMI EMC 120V 250VAC Metal Case 3

                         Fig.1



Datacom Equipment AC Line Noise Filter EMI EMC 120V 250VAC Metal Case 4

                          Fig. 2



Mechanical Dimension(Unit: mm)



Datacom Equipment AC Line Noise Filter EMI EMC 120V 250VAC Metal Case 5




Case E3 E4 D1 D2 D3 D4 D5 F1 F2 F3 F4 Tolerances
A 32 44.5 51 51 63 63 73 72 98 120 150 ±1
B 46 50.5 33 51 51 51 56 65 80 100 105 ±1
C 22.5 30 29 21 29 38 44.5 39 41 50 60 ±1
D 54 61.5 60 63 75 75 87 75 95 115 120 ±0.15
E 62 70.5 68 72 85 85 98 45 50 80 90 ±1
F 24 28 20 27 25 27 30 35 50 60 60 ±0.5
G 12.5 10.5 10 10 10 15.5 16 22 24 26 35 ±0.5
H 4.5 6 4.5 4.5 5 4.5 4.5 4.2 4.2 4*6 4*6 ±0.15
I   4.5           4.2*6.2 4.2*6.2 4*6 4*6 ±0.15
J               M4/M6 M4/M6 M4/M6 M4/M6
K 6.3*0.8 6.3*0.8 UL 1015 6.3*0.8 6.3*0.8 6.3*0.8 6.3*0.8 M4 M4 M4 M4 ±0.15
L               35 50 60 60 ±2





Insertion loss table(In 50ohm system according IEC/CISPR No.17)

           Common mode                            -------- differential mode

                              1A                                                                                   3A

    Datacom Equipment AC Line Noise Filter EMI EMC 120V 250VAC Metal Case 6                       Datacom Equipment AC Line Noise Filter EMI EMC 120V 250VAC Metal Case 7



                               6A                                                                                    8A

    Datacom Equipment AC Line Noise Filter EMI EMC 120V 250VAC Metal Case 8                       Datacom Equipment AC Line Noise Filter EMI EMC 120V 250VAC Metal Case 9



                            10A                                                                                      20A

   Datacom Equipment AC Line Noise Filter EMI EMC 120V 250VAC Metal Case 10                          Datacom Equipment AC Line Noise Filter EMI EMC 120V 250VAC Metal Case 11



                              30A

   Datacom Equipment AC Line Noise Filter EMI EMC 120V 250VAC Metal Case 12
