Double Stage Single Phase EMI EMC Filter / Electrical Power Line Filters

Double Stage Single Phase EMI EMC Filter / Electrical Power Line Filters

    • Double Stage Single Phase EMI EMC Filter / Electrical Power Line Filters
    • Double Stage Single Phase EMI EMC Filter / Electrical Power Line Filters
    • Double Stage Single Phase EMI EMC Filter / Electrical Power Line Filters
  • Double Stage Single Phase EMI EMC Filter / Electrical Power Line Filters

    Product Details:

    Place of Origin: China
    Brand Name: YBX
    Certification: cUL, TUV, CQC, CE, ROHS
    Model Number: YB22E4-6A-S

    Payment & Shipping Terms:

    Minimum Order Quantity: 50pcs
    Price: Negotiable
    Packaging Details: 56.5*28.5*22.5cm
    Delivery Time: 20-25 days
    Payment Terms: T/T, L/C
    Supply Ability: 10000 Piece/Pieces per Month Ac 220V General Purpose Noise Filter
    Contact Now
    Detailed Product Description
    Name: YB22E4-6A-S Current: 1A-20A
    Temperature Range: 25/085/21 Case: Metal
    3dB Bandwidth: 5-10% MOQ: 50pcs
    Brand Name: YBX Warranty Period: 5 Years

    50 60Hz 120 250VAC Single Phase Double Stage EMI Power Line Noise Electrical Filter



    Technical Specification:



    Item Power line Filter
    Model Power line Filter YB-D
    Transfer Function Low Pass
    Package Type Surface Mount
    Nominal Center Frequency 10K-30MHZ
    Insertion Loss 60~90dB
    Input Impedance 50Ω
    Rated Voltage 115V/250V
    Rated Current 1~30A
    Environmental Temperature 40°C
    Temperature Range 25 / 085 / 21
    Operating Frequency 50/60HZ
    Line to Line 1450VDC
    Line to Ground 2250VDC
    Maximum Leakage Current 250VAC/60HZ 0.8mA Max
    MOQ 50pcs
    Price USD1~8.8/Meter
    Lead Time 5~20 weekday



    Features:



    YB22 have designed two-stage filtering, with good differential and common-mode attenuation;



    Various terminal options allow you to select;



    There are a variety of parts and combinations to meet different customer's EMC tests.



    Typical Applications:



    1. Electrical and electronic equipment



    2. Medical equipment



    3. Datacom equipment



    4. Office automation equipment



    Rule of Nomination:



    YB    22    E4   -   10A    -     Q            ( R 5 )

                ¦        ¦               ¦              ¦                   ¦ ¦

         circuit  case     current connection optional



    Tabulates:



    Model No. Rated Current
    @40°C

    Terminal Options*

    Leakage current 250V/50Hz Electrical Schematic

    Rated Voltage(V) Operating Frequency(Hz)


    YB22E4-1A 1A~4A Q S W





















    <0.8mA

    Fig.1





















    115/250V





















    50/60Hz

    YB22E4-6A 6A Q S W Fig.1
    YB22E4-8A 8A Q S W Fig.1
    YB22E4-10A 10A Q S W Fig.1
    YB22E4-15A 15A Q S - Fig.1
    YB22D1-1A 1A~4A Q - W Fig.1
    YB22D1-6A 6A Q - W Fig.1
    YB22D2-6A 6A Q S W Fig.1
    YB22D2-8A 8A Q S W Fig.1
    YB22D2-10A 10A Q S W Fig.1
    YB22D2-15A 15A Q S - Fig.1
    YB22D3-8A 8A Q S W Fig.1
    YB22D3-10A 10A Q S W Fig.1
    YB22D3-15A 15A Q S - Fig.1
    YB22D4-10A 10A Q S W Fig.1
    YB22D4-15A 15A Q S - Fig.1
    YB22D4-20A 20A Q S - Fig.1
    YB22D5-15A 15A Q S - Fig.1
    YB22D5-20A 20A Q S - Fig.1
    YB22D5-30A 30A - S - Fig.1
    YB22D6-20A 20A - S - Fig.1
    YB22D6-30A 30A - S - Fig.1
    YB22F1-20A 20A - S - Fig.1
    YB22F1-30A 30A - S - Fig.1
    YB22F2-30A 30A - S - Fig.1
    YB22F2-40A 40A - S - Fig.1
    YB22F2-50A 50A - S - Fig.1
    YB22F3-50A 50A - S - Fig.1



    Medical Type Tabulates:

    Model No. Rated Current
    @40°C

    Terminal Options

    Medical equipment

    Leakage current 250V/50Hz Electrical Schematic Rated Voltage(V) Operating Frequency(Hz)


    YB22E4-1A-x(5) 1A~4A Q S W 5































    <5μA

    Fig.2































    115/250V































    50/60Hz

    YB22E4-6A-x(5) 6A Q S W 5 Fig.2
    YB22E4-8A-x(5) 8A Q S W 5 Fig.2
    YB22E4-10A-x(5) 10A Q S W 5 Fig.2
    YB22E4-15A-x(5) 15A Q S W 5 Fig.2
    YB22D1-1A-x(5) 1A~4A Q - W 5 Fig.2
    YB22D1-6A-x(5) 6A Q - W 5 Fig.2
    YB22D2-6A-x(5) 6A Q S W 5 Fig.2
    YB22D2-8A-x(5) 8A Q S W 5 Fig.2
    YB22D2-10A-x(5) 10A Q S W 5 Fig.2
    YB22D2-15A-x(5) 15A Q S - 5 Fig.2
    YB22D3-8A-x(5) 8A Q S W 5 Fig.2
    YB22D3-10A-x(5) 10A Q S W 5 Fig.2
    YB22D3-15A-x(5) 15A Q S - 5 Fig.2
    YB22D4-10A-x(5) 10A Q S W 5 Fig.2
    YB22D4-15A-x(5) 15A Q S - 5 Fig.2
    YB22D4-20A-x(5) 20A Q S - 5 Fig.2
    YB22D5-15A-x(5) 15A Q S - 5 Fig.2
    YB22D5-20A-x(5) 20A Q S - 5 Fig.2
    YB22D5-30A-x(5) 30A - S - 5 Fig.2
    YB22D6-20A-x(5) 20A Q S - 5 Fig.2
    YB22F1-20A-x(5) 20A Q S - 5 Fig.2
    YB22F1-30A-x(5) 30A - S - 5 Fig.2
    YB22F2-30A-x(5) 30A - S - 5 Fig.2
    YB22F2-40A-x(5) 40A - S - 5 Fig.2
    YB22F2-50A-x(5) 50A - S - 5 Fig.2
    YB22F3-50A-x(5) 50A - S - 5 Fig.2

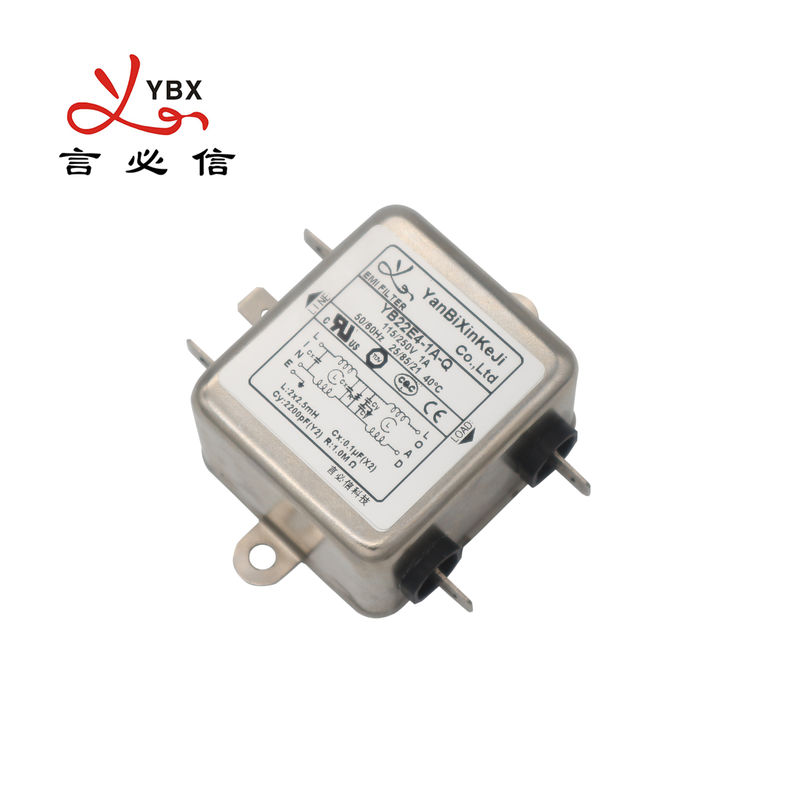

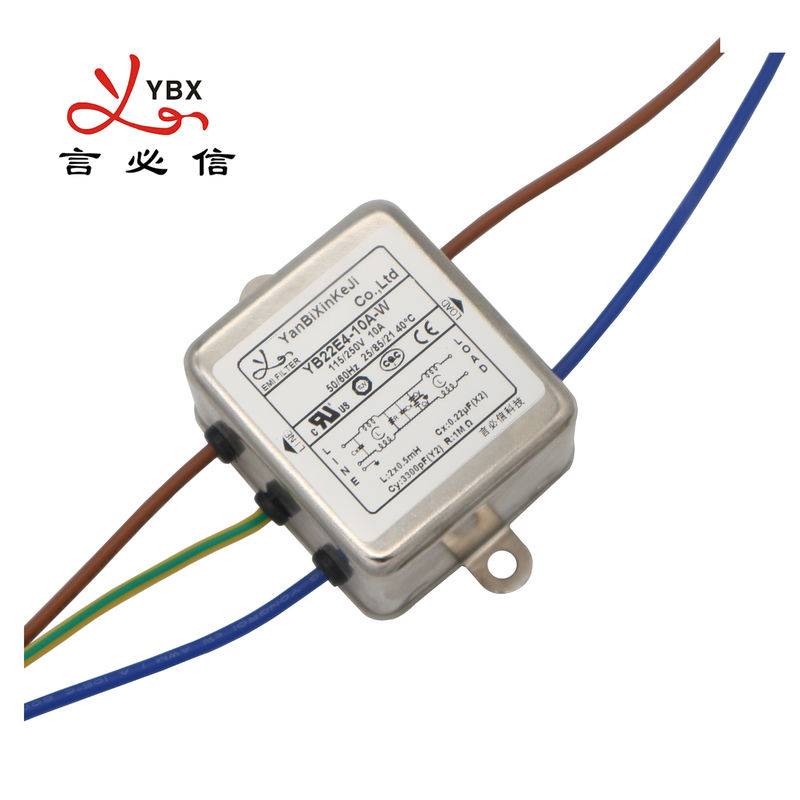

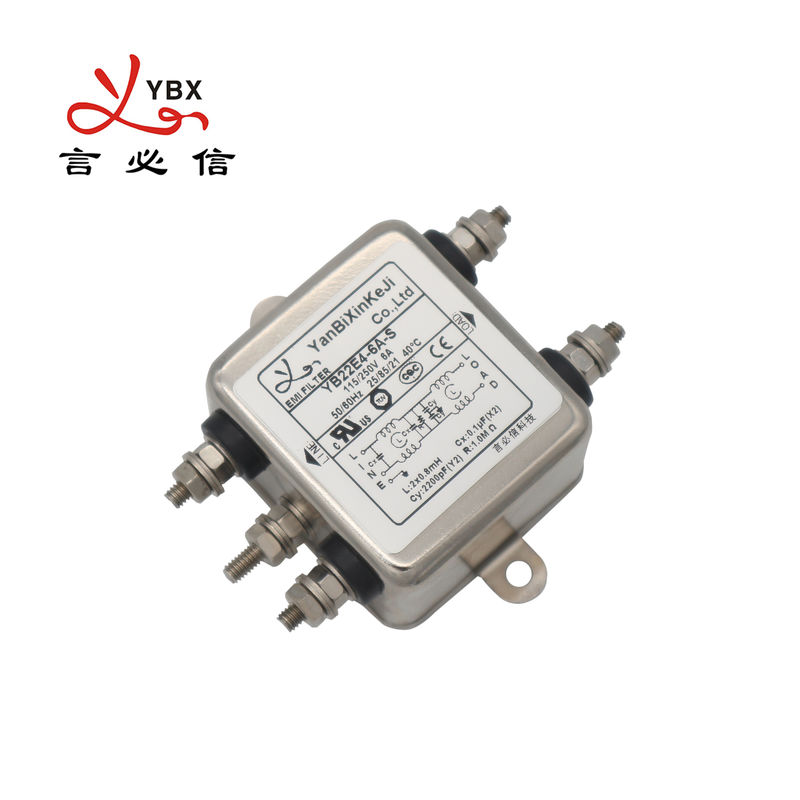

    Double Stage Single Phase EMI EMC Filter / Electrical Power Line Filters*Q: Fast-on 6.35x0.8mm        Double Stage Single Phase EMI EMC Filter / Electrical Power Line FiltersS: Screw lug          Double Stage Single Phase EMI EMC Filter / Electrical Power Line FiltersW: UL1015 18awg

    Electrical schematic:



    Double Stage Single Phase EMI EMC Filter / Electrical Power Line Filters

                             Fig.1



    Double Stage Single Phase EMI EMC Filter / Electrical Power Line Filters

                              Fig. 2



    Mechanical Dimension(Unit: mm)



    Double Stage Single Phase EMI EMC Filter / Electrical Power Line Filters




    Case E3 E4 D1 D2 D3 D4 D5 F1 F2 F3 F4 Tolerances
    A 32 44.5 51 51 63 63 73 72 98 120 150 ±1
    B 46 50.5 33 51 51 51 56 65 80 100 105 ±1
    C 22.5 30 29 21 29 38 44.5 39 41 50 60 ±1
    D 54 61.5 60 63 75 75 87 75 95 115 120 ±0.15
    E 62 70.5 68 72 85 85 98 45 50 80 90 ±1
    F 24 28 20 27 25 27 30 35 50 60 60 ±0.5
    G 12.5 10.5 10 10 10 15.5 16 22 24 26 35 ±0.5
    H 4.5 6 4.5 4.5 5 4.5 4.5 4.2 4.2 4*6 4*6 ±0.15
    I   4.5           4.2*6.2 4.2*6.2 4*6 4*6 ±0.15
    J               M4/M6 M4/M6 M4/M6 M4/M6
    K 6.3*0.8 6.3*0.8 UL 1015 6.3*0.8 6.3*0.8 6.3*0.8 6.3*0.8 M4 M4 M4 M4 ±0.15
    L               35 50 60 60 ±2





    Insertion loss table(In 50ohm system according IEC/CISPR No.17)

               Common mode                            -------- differential mode

                                  1A                                                                                   3A

        Double Stage Single Phase EMI EMC Filter / Electrical Power Line Filters                       Double Stage Single Phase EMI EMC Filter / Electrical Power Line Filters



                                   6A                                                                                    8A

        Double Stage Single Phase EMI EMC Filter / Electrical Power Line Filters                       Double Stage Single Phase EMI EMC Filter / Electrical Power Line Filters



                                10A                                                                                      20A

       Double Stage Single Phase EMI EMC Filter / Electrical Power Line Filters                          Double Stage Single Phase EMI EMC Filter / Electrical Power Line Filters



                                  30A

       Double Stage Single Phase EMI EMC Filter / Electrical Power Line Filters
