EMI EMC Power Low Pass Filter Metal Case Current 1A 3A 6A 8A 10A 15A

EMI EMC Power Low Pass Filter Metal Case Current 1A 3A 6A 8A 10A 15A

emi power line filter

emi rfi power line filter

Place of Origin:

China

Brand Name:

YBX

Certification:

cUL, TUV, CQC, CE, ROHS

Model Number:

YB11A1-3A-S

Contact Us

Request A Quote
Product Details
P/N:
YB11A1-3A-S
Voltage:
115V/250V
Current:
1A 3A 6A 8A 10A 15A
Environmental Temperature:
40°C
Case:
Metal Case
Line To Line:
1450VDC
Line To Ground:
2000VAC
Certificate:
ISO9001:2008 CUL TUV CQC CE ROHS
Payment & Shipping Terms
Minimum Order Quantity
100pcs
Price
Negotiable
Packaging Details
56.5*28.5*22.5cm(one box)
Delivery Time
15-25 days
Payment Terms
L/C, T/T
Supply Ability
500000 Piece/Pieces per Month
Product Description

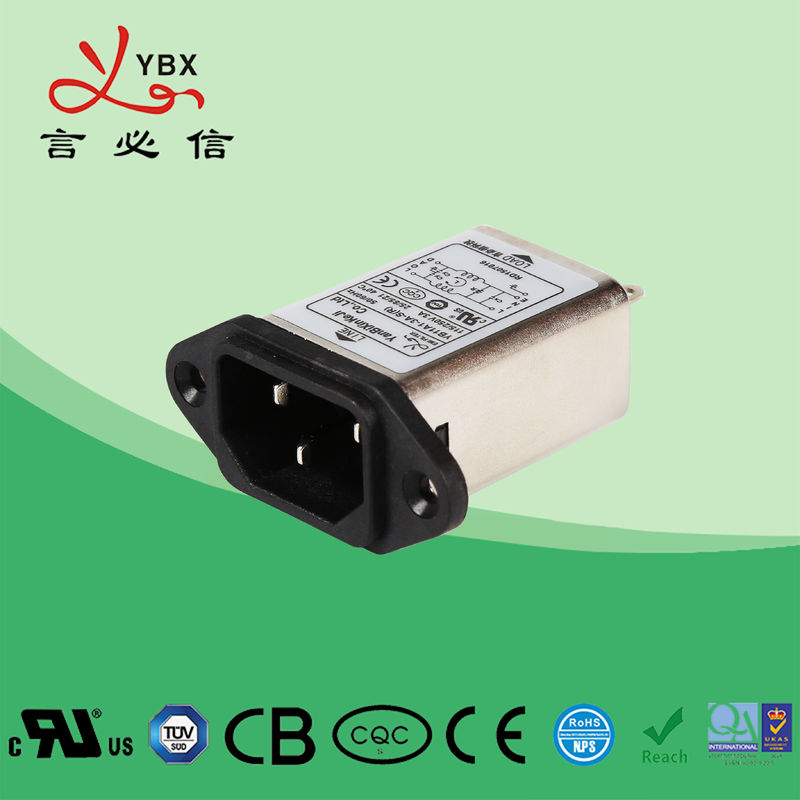

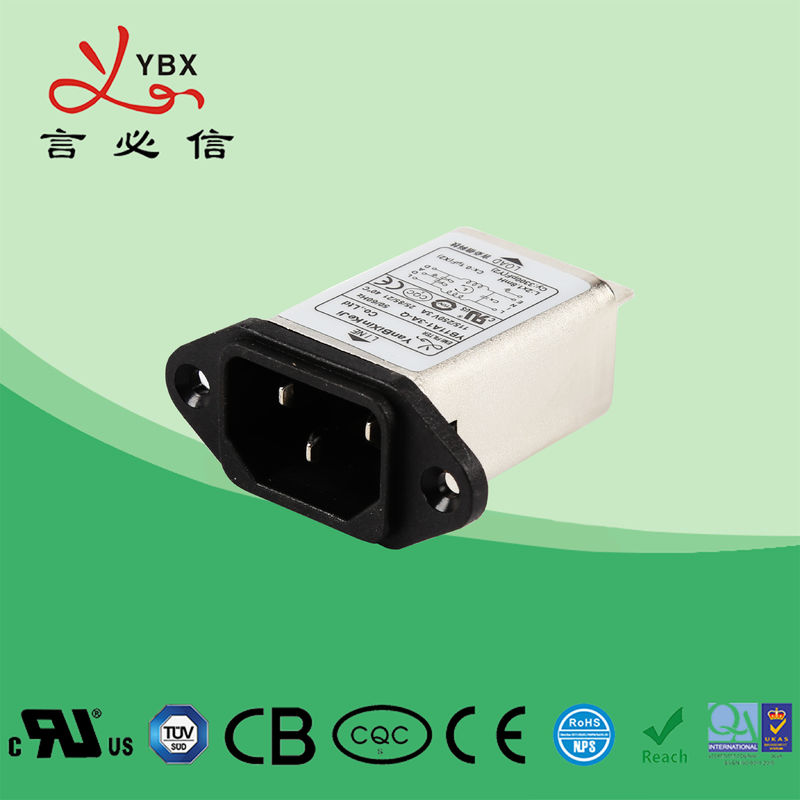

EMI EMC Power Low Pass Filter For Medical Equipment 3A 120V/250V



Technical Specification:



Item Emi Power Filter
Model Emi Power Filter YB-A
Transfer Function Low Pass
Package Type Surface Mount
Nominal Center Frequency 10K-30MHZ
Insertion Loss 60~90dB
Input Impedance 50Ω
Rated Voltage 125VAC 250VAC
Rated Current 1A 3A 6A 10A
Environmental Temperature 40°C
Temperature Range 25 / 085 / 21
Operating Frequency 50/60HZ
Line to Line 1450VDC
Line to Ground 2250VDC
Maximum Leakage Current 115VAC/50HZ 0.3uA Max
MOQ 500pcs
Price USD1~2/Meter
Lead Time 5~15 weekday





Features:



1. Excellent performance/compact structure



2. Optional medical versions((R5) type)



3. Quick connect(6.35*0.8mm),solder or wire



4. High performance and high attenuation power filters with IEC 320 socket



5. (R5) types comply with the requirements of IEC/EN60601-1 for safety clearance, leakage current and high hipot testing.



6. There are a variety of parts and combinations to meet different customer's EMC tests.



Typical Applications:



-- Specially designed for LCD and PDP TV,medical applications,general electrical appliances.



-- Medical equipment



-- Test and measurement equipment



-- Small and medium-sized machines and household equipment



Rule of Nomination:



YB    11     A1   -   10A   -    Q         (  R  5  G  )

            ¦         ¦              ¦             ¦                    ¦ ¦ ¦

       circuit  case   current  connection  optional



Tabulates:



Model No. Rated Current
@40°C
Terminal Options* Bleeder resistor (optional) G (optional) Leakage current 250V/50Hz Electrical Schematic Rated Voltage Operating Frequency (Hz)





YB11A1-1A 1A Q S W - -













<0.8mA

Fig.1













115/250V













50/60Hz

YB11A1-2A 2A Q S W - - Fig.1
YB11A1-3A 3A Q S W - - Fig.1
YB11A1-4A 4A Q S W - - Fig.1
YB11A1-6A 6A Q S W - - Fig.1
YB11A1-8A 8A Q S W - - Fig.1
YB11A1-10A 10A Q S W - - Fig.1
YB11A1-15A 15A Q S W - - Fig.1
YB11A2-1A 1A Q S W - - Fig.1
YB11A2-2A 2A Q S W - - Fig.1
YB11A2-3A 3A Q S W - - Fig.1
YB11A2-4A 4A Q S W - - Fig.1
YB11A2-6A 6A Q S W - - Fig.1
YB11A2-8A 8A Q S W - - Fig.1
YB11A2-10A 10A Q S W - - Fig.1
YB11A2-15A 15A Q S W - - Fig.1



Electrical schematic:

EMI EMC Power Low Pass Filter Metal Case Current 1A 3A 6A 8A 10A 15A 0

Mechanical Dimension(Unit: mm)



EMI EMC Power Low Pass Filter Metal Case Current 1A 3A 6A 8A 10A 15A 1





























Case A B C D E F G H I J K L M N
A1 58 28.5 21 50 40 22.4 12.7 11.8 13.5 3.2 6.35*0.8
A2 58 28.5 21 52 40 25 12.7 11.8 13.5 3.2 6.35*0.8
Tolerances

±1 ±1 ±1 ±1 ±0.15 ±1 ±0.5 ±0.5 ±0.5 ±1 ±0.15



Insertion loss table(In 50ohm system according IEC/CISPR No.17)



                      Common mode                                                           -------- differential mode



                           1A                                                                                       3A

EMI EMC Power Low Pass Filter Metal Case Current 1A 3A 6A 8A 10A 15A 2                             EMI EMC Power Low Pass Filter Metal Case Current 1A 3A 6A 8A 10A 15A 3



                        6A                                                                                              8A

EMI EMC Power Low Pass Filter Metal Case Current 1A 3A 6A 8A 10A 15A 4                              EMI EMC Power Low Pass Filter Metal Case Current 1A 3A 6A 8A 10A 15A 5



                                                                                                                                                                                                                                                               10A                                                                                           15A

EMI EMC Power Low Pass Filter Metal Case Current 1A 3A 6A 8A 10A 15A 6                              EMI EMC Power Low Pass Filter Metal Case Current 1A 3A 6A 8A 10A 15A 7
