Low Pass UL 94V-0 500VDC 250VAC Electronic Noise Filter

Low Pass UL 94V-0 500VDC 250VAC Electronic Noise Filter

250VAC Electronic Noise Filter

UL 94V-0 Electronic Noise Filter

500VDC Electronic Noise Filter

Place of Origin:

China

Brand Name:

YBX

Certification:

cUL,TUV,CQC,CE,ROHS

Model Number:

YB27T5-4A-W

Contact Us

Request A Quote
Product Details
Rated Voltage Max.::
250VAC,50/60Hz
Operating Frequency::
DC To 400Hz
Rated Currents::
1~10A@40°C
L-N::
500VDC
L/N-G::
2000VAC/2250VDC
Climatic Category::
-25°C~+85°C
Flammability Corresponding To::
UL 94V-0
Transfer Function:
Low Pass
Model:
YB27T5-4A-W
Payment & Shipping Terms
Minimum Order Quantity
100PCS
Price
Negotiable
Packaging Details
56.5*28.5*21.5cm(one box)
Delivery Time
10-20 days
Payment Terms
T/T
Supply Ability
500000 Piece/Pieces per Month
Product Description

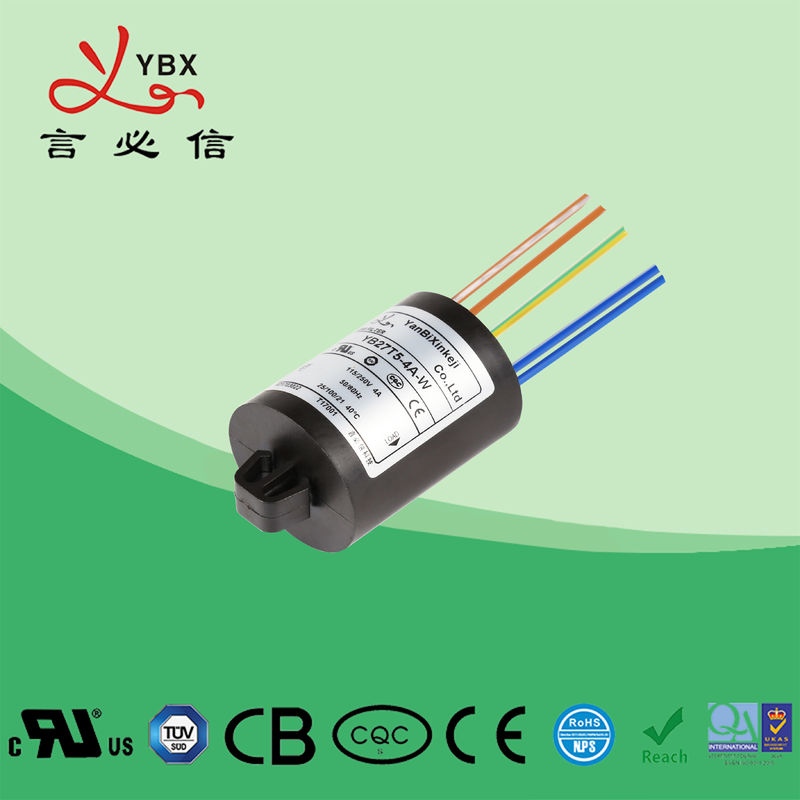

Low Pass UL 94V-0 500VDC 250VAC Electronic Noise Filter



Yanbixin 250V 4A Plastic Power Supply Noise Filter For White Household Appliance



Typical Applications:



1. Electrical and electronic equipment



2. Medical equipment



3. Datacom equipment



4. Office automation equipment



Our Company



1. Customized:We have a professional R&D team; our aims is we won't let customers

spend any extra money.

2. Listed company:National high-tech enterprises, brand assurance, reliable quality, and

we have the relevant product certifications.

3. Rectification test: We cooperate with top scientific research laboratories to provide free

EMC rectification technical support, samples; and free conduction test.

4. Scale production:Automation technology, scale production, great price,excellent, service,

fast delivery! Free replacement within three months, free maintenance within six years,

life-long maintenance!



Characteristics

(1) Voltage Rating............................................................................................115/250VAC

(2) Current Rating:

A. @115VAC............................................................................................... 16A RMS Max.

B. @250VAC............................................................................................... 16A RMS Max.

(3) Oprating Frequency:50/60Hz

(4) Leakage Current: each line to ground

A. 115VAC/60Hz........................................................................................... 1mA Max.

B. 250VAC/50Hz...........................................................................................2mA Max.

(5) Hipot Rating(for one minute)

A. Line to ground............................................................................................ 2250VDC

B. Line to line.................................................................................................. 500VDC

(6) IR: 50M ohm A7 500VDC any input or output to ground

(7) Temperature Range: -25℃~+85℃







Product Picture



Low Pass UL 94V-0 500VDC 250VAC Electronic Noise Filter 0



Physical Dimensions of EMI filter:

Low Pass UL 94V-0 500VDC 250VAC Electronic Noise Filter 1



Case A B C D E F G
T5 38 51 50   18wag
T6 32 54 47 16.5 10 12
Tolerances
公差
±0.5 ±1 ±1 ±0.5 ±0.15 ±0.15

Electrical Schematic

Low Pass UL 94V-0 500VDC 250VAC Electronic Noise Filter 2



Tabulates of EMI filter:
Model No. Rated Current
@40°C
Terminal Options Leakage current 250V/50Hz Electrical Schematic Rated Voltage(V)  Operating Frequency(Hz)

Low Pass UL 94V-0 500VDC 250VAC Electronic Noise Filter 3 Low Pass UL 94V-0 500VDC 250VAC Electronic Noise Filter 4 Low Pass UL 94V-0 500VDC 250VAC Electronic Noise Filter 5
YB24T5-1A 1A Q - W <0.8mA Fig.1 115/250V 50/60Hz
YB24T5-4A 4A Q - W Fig.1
YB24T5-10A 10A Q - W Fig.1
YB27T6-1A 1A Q - W Fig.1
YB27T6-4A 4A Q - W Fig.1
YB27T6-10A 10A Q - W Fig.1





Insertion loss table(In 50ohm system according IEC/CISPR No.17)

Common mode -------- differential mode



                                                         10A

Low Pass UL 94V-0 500VDC 250VAC Electronic Noise Filter 6



                                                 16A

Low Pass UL 94V-0 500VDC 250VAC Electronic Noise Filter 7









Our Patents


Low Pass UL 94V-0 500VDC 250VAC Electronic Noise Filter 8



Our Advantages



1. After years of efforts of the company's personnel, products successively obtained the cUL,
TUV,CQC, CE, ROSH certifications.

2. We have a professional R&D team; our aims is we won't let customers spend any extra money!

3. National high-tech enterprises, brand assurance, reliable quality, and we have the relevant

product certifications.

4. We cooperate with top scientific research laboratories to provide free EMC rectification technical

support, samples; and free conduction test.

5. Automation technology, scale production, great price,excellent, service, fast delivery! Free replacement

within three months, free maintenance within six years, life-long maintenance!



Typical Applications

1. Washing machine



2. Refrigerator



3. Vending machine



4. Dish washer and other white goods



Packaging and Shipping

Packaging

Power Line Filter: CTN/300pcs

N/G W.: 13.5/14.3KG

Measures:0.565*0.285*0.215m
