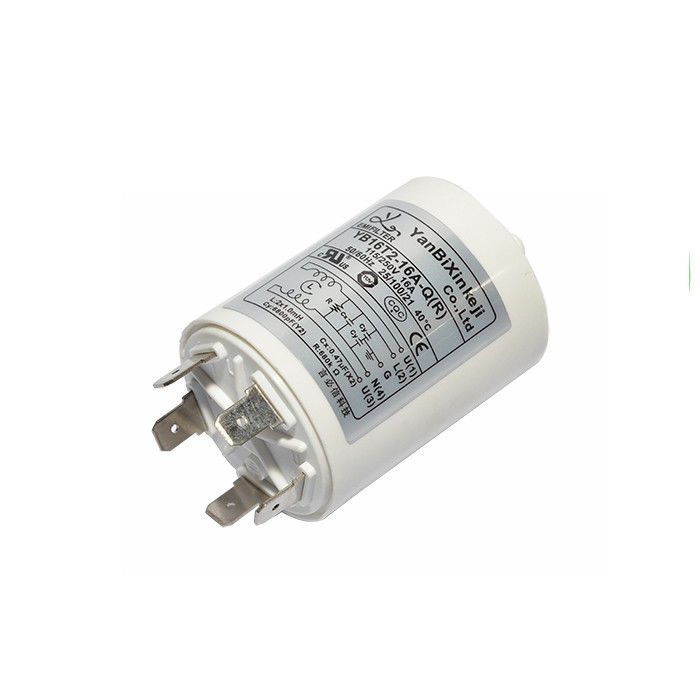

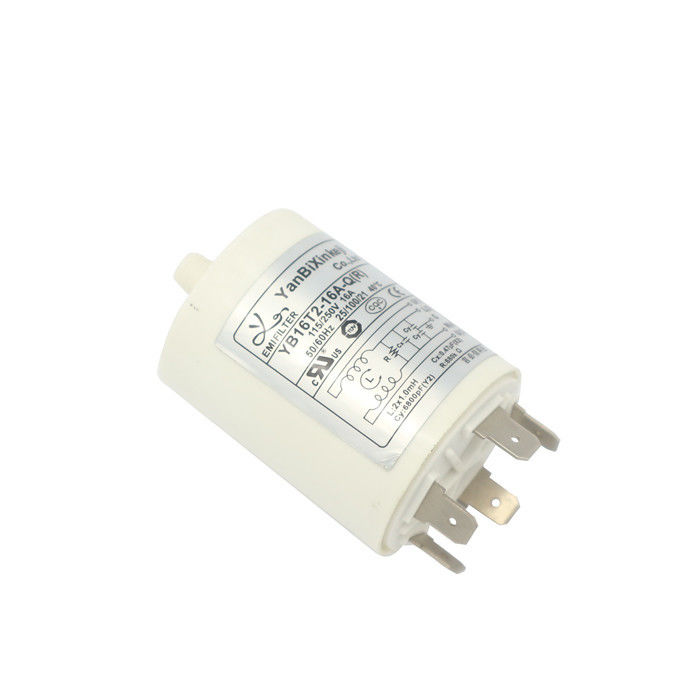

Single Phase Low Pass Emi Suppression Filter White Plastic Material
White plastic single phase low pass emi suppression filter for fridge and washing machines
Description
The role of the filter is to reduce power interference, and power interference can be divided into two categories: normal mode and common mode.Normal mode is the noise between two sets of input power lines, this kind of noise is usually generated when shutting down and starting up. The common mode refers to the interference caused by poor grounding of equipment, or radio and refrigerator motor electromagnetic, fluorescent energy-saving lamp ballast, washing machine, fan thyristor speed control, etc.
Feature
It is a device used to eliminate interference and noise, filtering the input or output to obtain pure direct current. The circuit that effectively filters out the frequency point of a specific frequency or the frequency other than the frequency point is a filter, and its function is to obtain a specific frequency or eliminate a specific frequency
Specification
|
Item |
EMI FILTER |
Rated Current |
16A |
|
Model |
YB16T2-16A-Q(R) |
Environmental Temperature |
40°C |
|
Transfer Function |
Low Pass |
Temperature Range |
25 / 085 / 21 |
|
Package Type |
Surface Mount |
Operating Frequency |
50/60HZ |
|
Nominal Center Frequency |
10K-30MHZ |
Line to Line |
1450VDC |
|
Insertion Loss |
50~100dB |
Line to Ground |
2250VDC |
|
Rated Voltage |
115/250VAC |
Maximum Leakage Current |
220VAC/50-60HZ 3-10mA Max |
|
Flammability corresponding to |
UL 94V-0 |
MOQ |
Negotiable |
|
Lead Time |
3-7 days |
Price |
Negotiable |
Advantage
The filter is a frequency selection device that can pass specific frequency components in the signal while greatly attenuating other frequency components. Using the frequency selection function of the filter, interference noise can be filtered out or spectrum analysis can be performed. In other words, any device or system that can pass specific frequency components in a signal and greatly attenuate or suppress other frequency components is called a filter.
Naming Rule
YB 16-------T2---------16A-------------S/T/B
| | | |
circuit case current connection
S: Screw
T: Terminal Block
B: Copper bar
Electrical Schematic
Mechanical Dimension
Factory Picture
Our Services
|
Before-sale |
After-sale |
|
1. All inquires will be replied with 8 hours. 7D/24H service, please feel free to contact us with Email/TM/Skype |
1. All EMI filters will be tested and adjusted before shipping. |
|
2. Strong technical team and professional sales. |
2. After receiving the products, any questions we will try our best to solve. |
|
3. Customized packaging is acceptable. |
3. Free replacement within three months, free maintenance within six years, life-long maintenance! |
|
4. We supply free samples and EMC technical rectification services |
|
