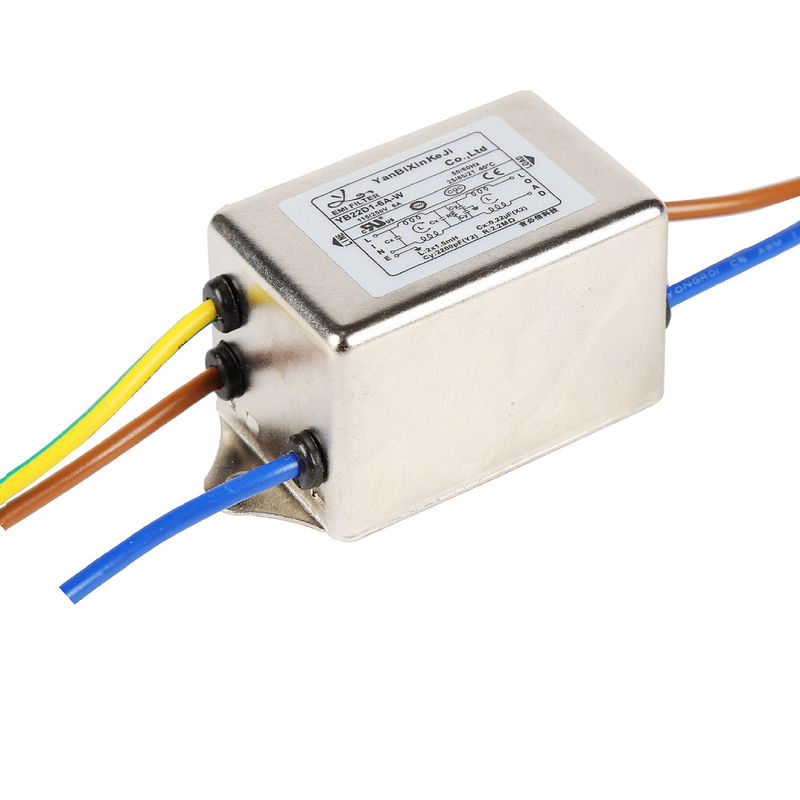

Metal 120V 250V Single Phase RFI Filter Two Stage EMI EMC Filter

Metal 120V 250V Single Phase RFI Filter Two Stage EMI EMC Filter

250V Single Phase RFI Filter

120V Single Phase RFI Filter

120V EMI EMC Filter

Place of Origin:

China

Brand Name:

YBX

Certification:

cUL, TUV, CQC, CE, ROHS

Model Number:

YB22D1-3A-W

Contact Us

Request A Quote
Product Details
Item:
YB22D1-3A-W
Rated Current:
1A-10A
Case:
Metal
Certificate:
ISO9001 CUL UL TUV CQC CE ROHS
Rated Voltage Max:
250VAC,50/60Hz
Operating Frequency:
DC To 400Hz
Rated Currents:
1~50A@40°C
Hipot Rating:
L-N 1450VDC L/N-G 2000VAC/2250VDC
Climatic Category:
-25°C~+85°C(25/85/21)
Flammability Corresponding To:
UL 94V-0
Payment & Shipping Terms
Minimum Order Quantity
Negotiable
Price
Negotiable
Packaging Details
56.5*28.5*22.5cm
Delivery Time
20-25 days
Payment Terms
T/T, L/C
Supply Ability
100000 Piece/Pieces per Month Ac 220V General Purpose Noise Filter
Product Description

Metal 120V 250V Single Phase RFI Filter Two Stage EMI EMC Filter



3A 120V 250V Electrical Noise Filter, RFI two-stage EMI EMC filter



Technical Specification:

Item Power line Filter
Model YB22D1-3A-W
Transfer Function Low Pass
Package Type Surface Mount
Nominal Center Frequency 10K-30MHZ
Insertion Loss 60~90dB
Input Impedance 50Ω
Rated Voltage 115V/250V
Rated Current 1~10A
Environmental Temperature 40°C
Temperature Range 25 / 085 / 21
Operating Frequency 50/60HZ
Line to Line 1450VDC
Line to Ground 2250VDC
Maximum Leakage Current 250VAC/60HZ 0.8mA Max
MOQ Negotiated
Price Negotiated
Lead Time 5~15 weekday



Features:



--  Designed 2 stage enhanced filtering to prevent the power supply may produce interference to the device



--  Various terminal options allow you to select



--  There are a variety of parts and combinations to meet different customer's EMC tests



--  Customized products according to customer's requirements.



Typical Applications:



--  Electrical and electronic equipment



--  Medical equipment



--  Building automation



--  Office automation and datacom equipment



Rule of Nomination:



YB    22    D1   -    3A    -   W/Q            (  5  )

            ¦        ¦               ¦              ¦                   ¦ ¦

     circuit  case     current connection optional






Metal 120V 250V Single Phase RFI Filter Two Stage EMI EMC Filter 0*Q: Fast-on 6.35x0.8mm            Metal 120V 250V Single Phase RFI Filter Two Stage EMI EMC Filter 1  S: Screw lug           Metal 120V 250V Single Phase RFI Filter Two Stage EMI EMC Filter 2 W: UL1015 18awg

Electrical schematic:



Metal 120V 250V Single Phase RFI Filter Two Stage EMI EMC Filter 3







Mechanical Dimension(Unit: mm)



Metal 120V 250V Single Phase RFI Filter Two Stage EMI EMC Filter 4






Insertion loss table(In 50ohm system according to IEC/CISPR No.17)

                                 Common mode                            -------- differential mode



                                   1A                                                                               3A

         Metal 120V 250V Single Phase RFI Filter Two Stage EMI EMC Filter 5



Factory pictures:

Metal 120V 250V Single Phase RFI Filter Two Stage EMI EMC Filter 6

Metal 120V 250V Single Phase RFI Filter Two Stage EMI EMC Filter 7

Metal 120V 250V Single Phase RFI Filter Two Stage EMI EMC Filter 8

Metal 120V 250V Single Phase RFI Filter Two Stage EMI EMC Filter 9

Metal 120V 250V Single Phase RFI Filter Two Stage EMI EMC Filter 10



FAQ:



Q: What are the main products of your company?

A: IEC inlet socket EMI filter, single-phase filter, Three-phase RFI filter, house appliance noise filter, Medical equipment filter, inver/converter EMC filter, etc.



Q: How is the quality of your product?

A: All our products have pass UL, TUV, CE, ROHS, ISO9001 approval. which ensures the quality of the product.



Q: What are services available for pre-batch orders?

A: Free samples and EMC technical rectification services are supplied before-sale



Q: What are services available after-sale?

A: Free replacement within three-month, free maintenance within six-year, life-long maintenance.



Q: What facilities do you have?

A: We have our own laboratory and production base to establish large-scale production.



Q: What the delivery time for 1000pcs of EMI FILTER?

A: Normally 15-20 days, but we can coordinate for a better delivery time if it is urgent.
