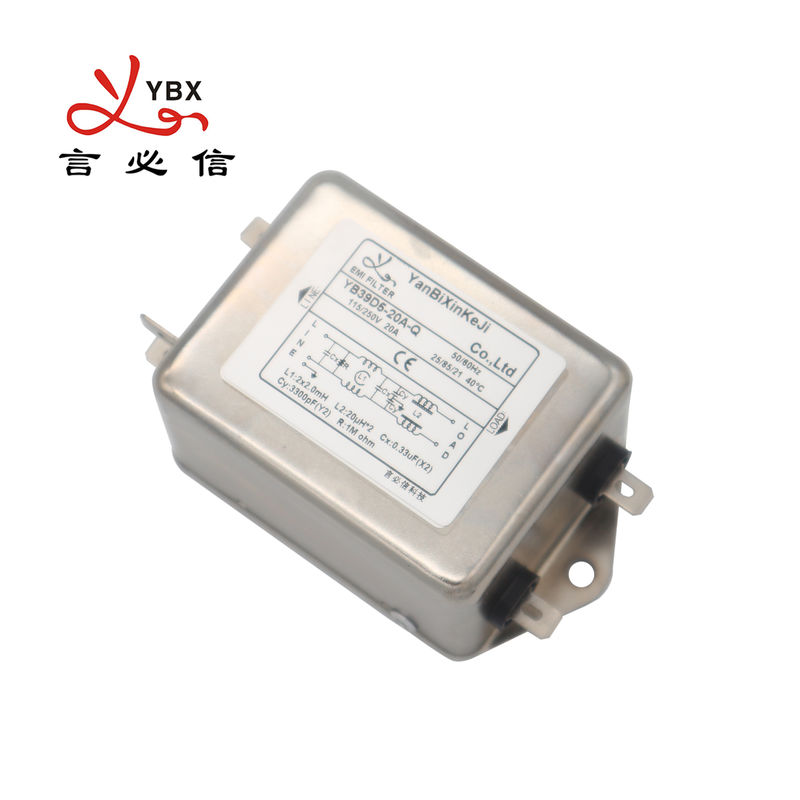

1450VDC Low Pass Emi Power Line Filter Single Phase for Datacom equipment

1450VDC Low Pass Emi Power Line Filter Single Phase for Datacom equipment
1450VDC Low Pass Emi Power Line Filter Single Phase for Datacom equipment
1450VDC Low Pass Emi Power Line Filter Single Phase for Datacom equipment 1450VDC Low Pass Emi Power Line Filter Single Phase for Datacom equipment

Large Image :  1450VDC Low Pass Emi Power Line Filter Single Phase for Datacom equipment

Product Details:
Place of Origin: China
Brand Name: YBX
Certification: cUL,TUV,CQC,CE,ROHS, ISO9001
Model Number: YB11E1-6A-W
Payment & Shipping Terms:
Minimum Order Quantity: 500PCS
Price: Negotiable
Packaging Details: 56.5*28.5*22.5cm(one box)
Delivery Time: 10-15 days
Supply Ability: 1000000 Piece/Pieces per Month

1450VDC Low Pass Emi Power Line Filter Single Phase for Datacom equipment

Description
Rated Voltage Max: 250VAC,50/60Hz Operating Frequency: DC To 400Hz
Rated Currents: 1~10A@40°C L-N: 1450VDC
L/N-G: 2000VAC/2250VDC Climatic Category: -25°C~+85°C(25/85/21)
Flammability Corresponding To: UL 94V-0 Transfer Function: Low Pass
Frequency: 50/60HZ
High Light:

1450VDC Emi Power Line Filter

,

250VAC Emi Power Line Filter

,

250VAC power line filter

1450VDC Low Pass Emi Power Line Filter Single Phase For Datacom Equipment



90dB Low Pass EMI Filter 50.60HZ AC Power Noise Filter





Technical Specification:



Item Power line Filter
Model Power line Filter YB-E
Transfer Function Low Pass
Package Type Surface Mount
Nominal Center Frequency 10K-30MHZ
Insertion Loss 60~90dB
Input Impedance 50Ω
Rated Voltage 115V/250V
Rated Current 1~15A
Environmental Temperature 40°C
Temperature Range 25 / 085 / 21
Operating Frequency 50/60HZ
Line to Line 1450VDC
Line to Ground 2250VDC
Maximum Leakage Current 250VAC/60HZ 0.8mA Max
MOQ 300pcs
Price Negotiable
Lead Time 10~20 workday



Features:



-- Rated currents from 1 to 10A



-- General-purpose filtering performance



-- Optional medical versions((R5) type)



-- Customized products according to customer's requirements.



Typical Applications:



-- Electrical and electronic equipment



-- Medical equipment



-- Datacom equipment



-- Office automation equipment



Rule of Nomination:



YB 11 E1 - 6A - Q ( R 5 )

¦ ¦ ¦ ¦ ¦ ¦

circuit case current connection optional



Tabulates:

Model No. Rated Current
@40°C
Terminal Options* Bleeder resistor(optional) Leakage current 250V/50Hz Electrical Schematic Rated Voltage(V)  Operating Frequency(Hz)

1450VDC Low Pass Emi Power Line Filter Single Phase for Datacom equipment 0 1450VDC Low Pass Emi Power Line Filter Single Phase for Datacom equipment 1 1450VDC Low Pass Emi Power Line Filter Single Phase for Datacom equipment 2
YB11E1-1A 1A Q - W - <0.8mA Fig.1 115/250V 50/60Hz
YB11E1-2A 2A Q - W - Fig.1
YB11E1-3A 3A Q - W - Fig.1
YB11E1-4A 4A Q - W - Fig.1
YB11E1-6A 6A Q - W - Fig.1
YB11E1-8A 8A Q - W - Fig.1
YB11E1-10A 10A Q - W - Fig.1
YB11E2-1A 1A Q - W - Fig.1
YB11E2-2A 2A Q - W - Fig.1
YB11E2-3A 3A Q - W - Fig.1
YB11E2-4A 4A Q - W - Fig.1
YB11E2-6A 6A Q - W - Fig.1
YB11E2-8A 8A Q - W - Fig.1
YB11E2-10A 10A Q - W - Fig.1
YB11E3-1A 1A Q - W - Fig.1
YB11E3-2A 2A Q - W - Fig.1
YB11E3-3A 3A Q - W - Fig.1
YB11E3-4A 4A Q - W - Fig.1
YB11E3-6A 6A Q - W - Fig.1
YB11E3-8A 8A Q - W - Fig.1
YB11E3-10A 10A Q - W - Fig.1

Medical Type Tabulates:

Model No. Rated Current
@40°C


Terminal Options

Bleeder resistor(optional)R(MΩ) Medical equipment
5
Leakage current 250V/50Hz Electrical Schematic

Rated Voltage(V)  Operating Frequency(Hz)

1450VDC Low Pass Emi Power Line Filter Single Phase for Datacom equipment 3 1450VDC Low Pass Emi Power Line Filter Single Phase for Datacom equipment 4 1450VDC Low Pass Emi Power Line Filter Single Phase for Datacom equipment 2
YB11E1-1A-x(5) 1A Q - W 1 5 <5μA Fig.2 115/250V 50/60Hz
YB11E1-2A-x(5) 2A Q - W 1 5 Fig.2
YB11E1-3A-x(5) 3A Q - W 1 5 Fig.2
YB11E1-4A-x(5) 4A Q - W 1 5 Fig.2
YB11E1-6A-x(5) 6A Q - W 1 5 Fig.2
YB11E1-8A-x(5) 8A Q - W 1 5 Fig.2
YB11E1-10A-x(5) 10A Q - W 1 5 Fig.2
YB11E2-1A-x(5) 1A Q - W 1 5 Fig.2
YB11E2-2A-x(5) 2A Q - W 1 5 Fig.2
YB11E2-3A-x(5) 3A Q - W 1 5 Fig.2
YB11E2-4A-x(5) 4A Q - W 1 5 Fig.2
YB11E2-6A-x(5) 6A Q - W 1 5 Fig.2
YB11E2-8A-x(5) 8A Q - W 1 5 Fig.2
YB11E2-10A-x(5) 10A Q - W 1 5 Fig.2
YB11E3-1A-x(5) 1A Q - W 1 5 Fig.2
YB11E3-2A-x(5) 2A Q - W 1 5 Fig.2
YB11E3-3A-x(5) 3A Q - W 1 5 Fig.2
YB11E3-4A-x(5) 4A Q - W 1 5 Fig.2
YB11E3-6A-x(5) 6A Q - W 1 5 Fig.2
YB11E3-8A-x(5) 8A Q - W 1 5 Fig.2
YB11E3-10A-x(5) 10A Q - W 1 5 Fig.2
YB11E3-15A-x(5) 15A Q - W 1 5 Fig.2





1450VDC Low Pass Emi Power Line Filter Single Phase for Datacom equipment 6*Q: Fast-on 6.35x0.8mm 1450VDC Low Pass Emi Power Line Filter Single Phase for Datacom equipment 7S: Screw lug 1450VDC Low Pass Emi Power Line Filter Single Phase for Datacom equipment 8W: UL1015 18awg1450VDC Low Pass Emi Power Line Filter Single Phase for Datacom equipment 9T: Terminal block





Electrical schematic:





Fig.1  Standard type



1450VDC Low Pass Emi Power Line Filter Single Phase for Datacom equipment 10

Fig. 2 R5 type

1450VDC Low Pass Emi Power Line Filter Single Phase for Datacom equipment 11



Mechanical Dimension(Unit: mm)



1450VDC Low Pass Emi Power Line Filter Single Phase for Datacom equipment 12

Case A B C D E F G H I J K
E1 24 44 19 54.5 64.5 23 9.5 4.5     6.3*0.8
E2 44 29 22 40 50 15 8 4.5 3.5   UL1015
E3 32 46 22.5 54 62 24 12.5 4.5     6.3*0.8
Tolerances
公差
±1 ±1 ±1 ±0.15 ±1 ±0.5 ±0.5 ±0.15 ±0.15   ±0.15


Insertion loss table(In 50ohm system according IEC/CISPR No.17)

Common mode -------- differential mode

                                          1A

                                                                                                                                          3A

 1450VDC Low Pass Emi Power Line Filter Single Phase for Datacom equipment 131450VDC Low Pass Emi Power Line Filter Single Phase for Datacom equipment 14



                                      6A

                                                                                                                                          8A

 1450VDC Low Pass Emi Power Line Filter Single Phase for Datacom equipment 151450VDC Low Pass Emi Power Line Filter Single Phase for Datacom equipment 16



                                           10A

 1450VDC Low Pass Emi Power Line Filter Single Phase for Datacom equipment 17
