Yanbixin Sales Small Size EMI EMC Filter 115V/250V Singel Phase Filter For Measurement Equipment
We have the relevant product's certificates,multiple installation options are available, product can be customized working with the top research LABS to provide free EMC diagnostic test
Technical Specification:
| Item | YB-E2 Single phase filter |
| Model | YB11E2-6A-Q |
| Transfer Function | Low Pass |
| Package Type | Surface Mount |
| Nominal Center Frequency | 10K-30MHZ |
| Insertion Loss | 60~90dB |
| Input Impedance | 50Ω |
| Rated Voltage | 115V/250V |
| Rated Current | 3~30A |
| Environmental Temperature | 40°C |
| Temperature Range | 25 / 085 / 21 |
| Operating Frequency | 50/60HZ |
| Line to Line | 1450VDC |
| Line to Ground | 2250VDC |
| Maximum Leakage Current | 250VAC/60HZ 0.8mA Max |
Features:
-- Rated currents from 3 to 30A
-- General purpose filtering performance
-- Optional medical versions((R5) type)
-- Customized products according to customer's requirements.
Typical Applications:
-- Electrical and electronic equipment
-- Medical equipment
-- Datacom equipment
-- Office automation equipment
Filter Selection Table:
| Part No. | Case | Rated Currents (A) | Output Connections |
| YB11E2-3A | E2 | 3 | Fast-on terminal |
| YB11E2-6A | E2 | 6 | |
| YB11E2-10A | E2 | 10 | M4/M6/M8 Screw |
| YB11E2-15A | E2 | 15 | |
| YB11E2-20A | E2 | 20 | Wire |
*Q: Fast-on 6.35x0.8mm S: Screw lug W: UL1015 18awg
Tabulates:
| Model No. | Rated Current @40°C |
Terminal Options* | Bleeder resistor(optional) | Leakage current 250V/50Hz | Electrical Schematic | Rated Voltage(V) | Operating Frequency(Hz) | ||
| YB11E1-3A | 3A | Q | - | W | - | <0.8mA | Fig.1 | 115/250V | 50/60Hz |
| YB11E1-6A | 6A | Q | - | W | - | Fig.1 | |||
| YB11E1-10A | 10A | Q | S | W | - | Fig.1 | |||
| YB11E2-3A | 3A | Q | S | W | - | Fig.1 | |||
| YB11E2-6A | 6A | Q | S | W | - | Fig.1 | |||
| YB11E2-10A | 10A | Q | S | - | - | Fig.1 | |||
| YB11E2-15A | 15A | Q | S | - | - | Fig.1 | |||
| YB11E2-20A | 20A | Q | S | W | - | Fig.1 | |||
| YB11E3-3A | 3A | Q | S | - | - | Fig.1 | |||
| YB11E3-6A | 6A | Q | S | - | - | Fig.1 | |||
| YB11E3-10A | 10A | - | S | - | - | Fig.1 | |||
| YB11E3-15A | 15A | - | S | - | - | Fig.1 | |||
Electrical Schematic & Mechanical Dimension(Unit: mm)

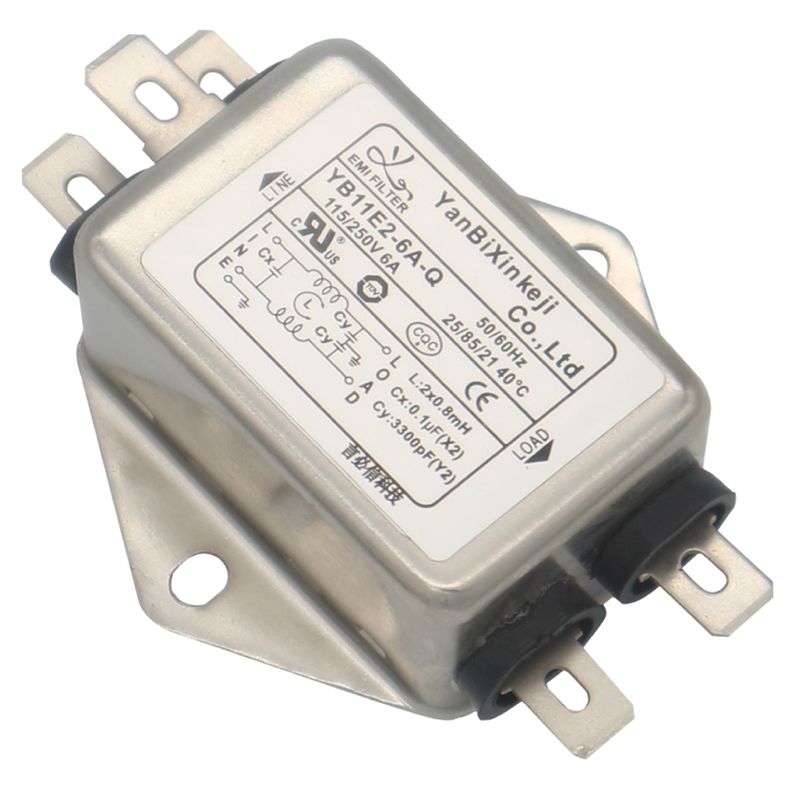

YB11E3-3A-Q EMI Filter Picture:
Insertion loss table(In 50ohm system according IEC/CISPR No.17)
FAQ
1. What is an EMI power filter?
A: EMI power filters are electromagnetic interference mitigating components used to reduce the disturbances in a power line. They are commonly made of inductors and capacitors and are collectively called passive EMI power filters.
2. Why do we need EMI filter?
A: Electromagnetic compatibility (EMC) is an important indicator to measure the quality of electronic products, and it has increasingly become the key in the design of electronic products. In the design process of the power system, the introduction of electromagnetic compatibility design can improve the overall anti-interference ability of the power system, extend the service life of the system, and ensure the safety of use. Therefore, the electromagnetic interference filter is a device that provides good electromagnetic compatibility.
3. Where should I place my EMI filter?
A: A power line or mains EMI filter is placed at the power entry point of the equipment that it is being installed into to prevent noise from exiting or entering the equipment. Essentially, an EMI filter is made up of two basic types of components–capacitors and inductors.
4. How does EMI filter works?
A: EMI, or Electro-Magnetic Interference, is defined as unwanted electrical signals and can be in the form of conducted or radiated emissions. The capacitors provide a low impedance path to divert the high frequency noise away from the input of the filter, either back into the power supply, or into the ground connection.
