380V/440V Three Phase Filter M4 Screw Or Fast-on Terminal EMI Filter For Motor Drive

380V/440V Three Phase Filter M4 Screw Or Fast-on Terminal EMI Filter For Motor Drive

three phase emi filter

3 phase power line filter

Place of Origin:

China

Brand Name:

YBX

Certification:

cUL, ENEC, CE, ROHS

Model Number:

YX82G1-6A-Q

Contact Us

Request A Quote
Product Details
Rated Voltage:
380V/440V
Rated Current:
1A-100A
Environmental Temp:
40°C
Operating Frequency:
50/60HZ
Line To Line:
1450VDC
Line To Ground:
2250VDC Or 2000VAC
MOQ:
5pcs
Payment & Shipping Terms
Minimum Order Quantity
5pcs
Price
Negotiable
Packaging Details
56.5*28.5*22.5CM
Delivery Time
15-25 days
Supply Ability
2000pcs per month
Product Description

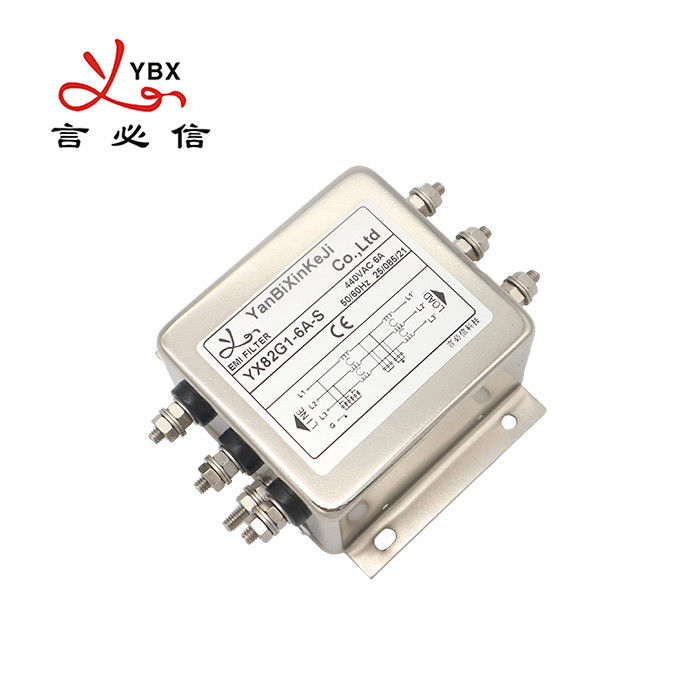

High Quality 380V 3 Phase Emi Filter 3 Wire RFI Filter With M4 Screw Output



Technical Specification:



Item 3 Phase EMI Filter
Model YX82G1-10A-Q
Transfer Function Low Pass
Package Type Surface Mount
Nominal Center Frequency 150K-30MHZ
Insertion Loss 60~90dB
Input Impedance 50Ω
Rated Voltage 380V/440V
Rated Current 1A-100A
Environmental Temperature 40°C
Temperature Range 25 / 085 / 21
Operating Frequency 50/60HZ
Line to Line 1450VDC
Line to Ground 2250VDC or 2000VAC
Maximum Leakage Current 115VAC/60HZ 1.4mA Max. 250VAC/60HZ 2.5mA Max
MOQ 5pcs
Price

USD4.8~88/Meter

Lead Time 3~15 weekday for Low Pass EMI Filter



Features:



--  Protection against interference of voltage.



--  YX82 filters provide a broadband common and differential-mode attenuation performance, it still can be available when the interference is larger.



--  Customized products according to customer's requirements.



Typical Applications:



--  For photovoltaic systems and industrial applications



--  Three-phase motor drives



--  UPS/SMPS



--  Industrial automation equipment



Rule of Nomination:



YX 82 G2 - 10A - Q
| | |   |   |
Three Phase Circuit Dimension   Current   Output Connection
  82:82 circuit G2   10A : 10 amp   Q:fast-on tab 250
        15A : 15 amp   W:wire
        20A : 20 amp   S:Solder Lug Terminals




380V/440V Three Phase Filter M4 Screw Or Fast-on Terminal EMI Filter For Motor Drive 0*Q: Fast-on 6.35x0.8mm               380V/440V Three Phase Filter M4 Screw Or Fast-on Terminal EMI Filter For Motor Drive 1  S: Screw lug            380V/440V Three Phase Filter M4 Screw Or Fast-on Terminal EMI Filter For Motor Drive 2 T: Terminal block



Tabulates:



Model No. Rated Current
@40°C


Terminal Options*

Leakage current 440V/50Hz Electrical Schematic

Rated Voltage(V) Operating Frequency(Hz)


YX81G1-1A 1A Q S T <1.0mA Fig.1 250/440V 50/60Hz
YX81G1-3A 3A Q S T Fig.1
YX81G1-6A 6A Q S T Fig.1
YX81G1-10A 10A Q S T Fig.1
YX81G1-20A 20A Q S T Fig.1
YX81G1-30A 30A - S T Fig.1
YX81G2-30A 30A - S T <2.0mA Fig.1
YX81G2-40A 40A - S T Fig.1
YX81G3-40A 40A - S T <5.0mA Fig.1
YX81G3-50A 50A - S T Fig.1
YX81G3-60A 60A - S T Fig.1
YX81G5-80A 80A - S T <7.0mA Fig.1
YX81G5-100A 100A - S T Fig.1
YX81G6-200A 200A - S T <10.0mA Fig.1



Electrical Schematic:

380V/440V Three Phase Filter M4 Screw Or Fast-on Terminal EMI Filter For Motor Drive 3

Mechanical Dimension(Unit: mm)

380V/440V Three Phase Filter M4 Screw Or Fast-on Terminal EMI Filter For Motor Drive 4380V/440V Three Phase Filter M4 Screw Or Fast-on Terminal EMI Filter For Motor Drive 5

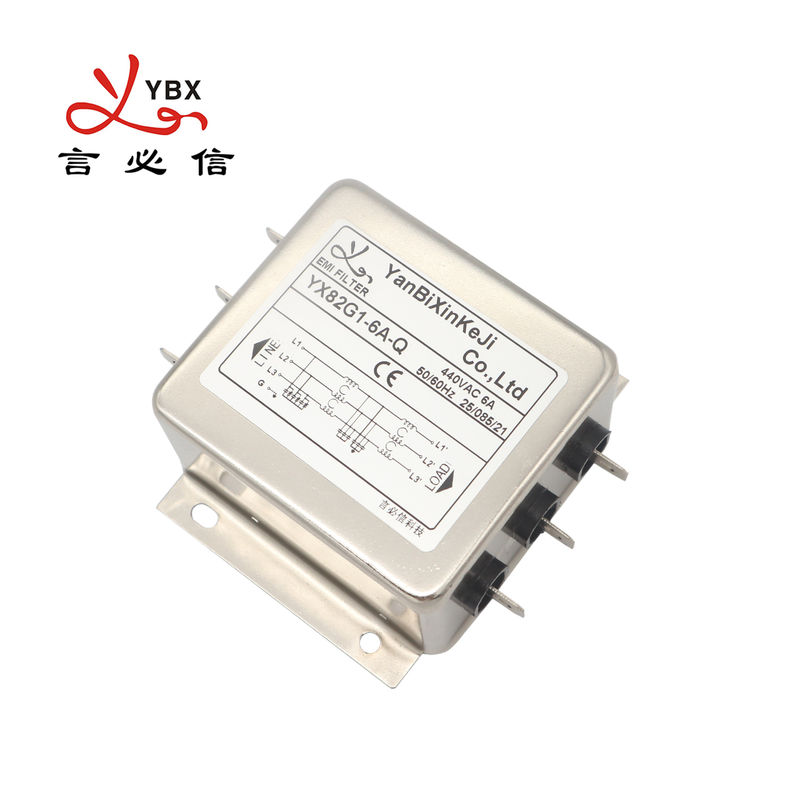

YX82G1-10A-Q Three Phase Filter Picture:

380V/440V Three Phase Filter M4 Screw Or Fast-on Terminal EMI Filter For Motor Drive 6


Case A B C D E F G H I J K L
G1 72 65 39 75 85 35 22   45 M4 M4/M6
G2 98 80 40 95 105 50 20 4.5*6.5 50 M4 M4/M6
G3 120 100 50 115 130 50 28 4*6 60 M4 M4/M6
G5 150 105 60 120 135 55 35 4*6 90 M6 M8
G6 260 170 100 196 220 85 65 8*12 172 M8 M10
Tolerances ±1 ±1 ±1 ±0.15 ±1 ±0.5 ±0.5 ±0.15 ±0.15   ±0.15



Insertion loss table(In 50ohm system according IEC/CISPR No.17)



380V/440V Three Phase Filter M4 Screw Or Fast-on Terminal EMI Filter For Motor Drive 7
