Product Description

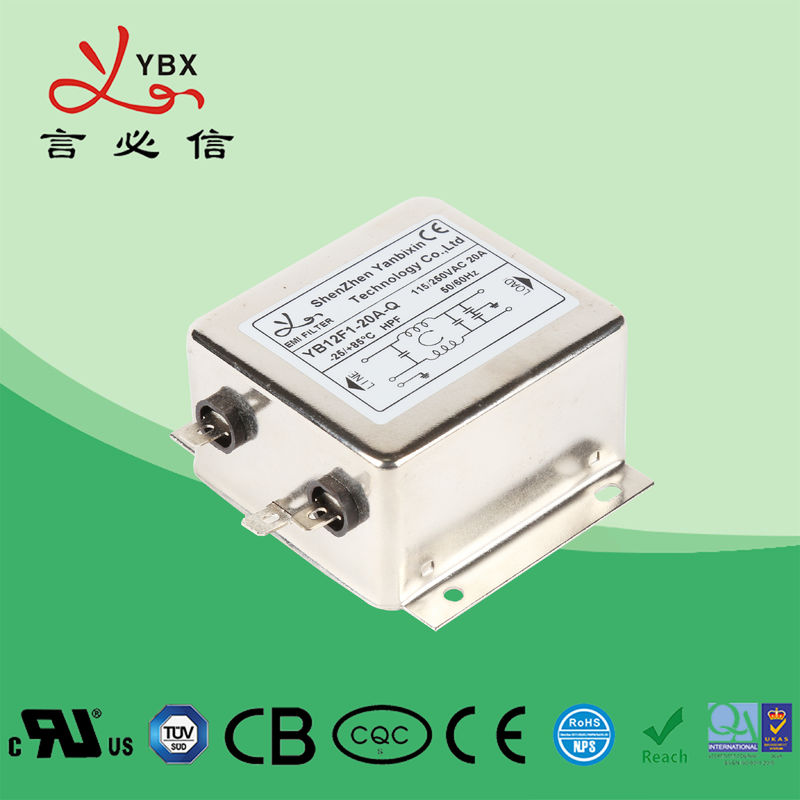

125V, 220VAC 20A Industry Emi Emc Filter for Building Automation

Technical Specification:

Item	Industry EMC Filter
Model	Industry EMC Filter YB-F series
Transfer Function	Low Pass
Package Type	Surface Mount
Nominal Center Frequency	10K-30MHZ
Insertion Loss	60~90dB
Input Impedance	50Ω
Rated Voltage	115V/250V
Rated Current	1~100A
Environmental Temperature	40°C
Temperature Range	25 / 085 / 21
Operating Frequency	50/60HZ
Line to Line	1450VDC
Line to Ground	2250VDC
Maximum Leakage Current	250VAC/60HZ 0.8mA Max
MOQ	50pcs
Price	USD3.5~48.8/Meter
Lead Time	5~15 weekday

Features:

-- Designed 2 stage enhanced filtering to prevent the power supply may produce interference to the device

-- Various terminal options allow you to select the desired connection style

-- Customized products according to customer's requirements.

Typical Applications:

-- Portable electrical and electronic equipment

-- Medical equipment

-- Building automation

-- Small and medium-sized machines and household equipment

-- Single-phase power supply,switch-mode power supply

-- Office automation and datacom equipment

Rule of Nomination:

YB 21 F1 - 10A - Q ( 5 )

¦ ¦ ¦ ¦ ¦ ¦

circuit case current connection optional

Tabulates:

Model No.

Rated Current
@40°C

Terminal Options*

Leakage current 250V/50Hz

Electrical Schematic

Rated Voltage(V)

Operating Frequency(Hz)

YB21F1-25A

25A

<0.8mA

Fig.1

115/250V

50/60Hz

YB21F1-30A

30A

Fig.1

YB21F1-50A

50A

Fig.1

YB21F2-25A

25A

Fig.1

YB21F2-30A

30A

Fig.1

YB21F2-50A

50A

Fig.1

YB21F3-25A

25A

Fig.1

YB21F3-30A

30A

Fig.1

YB21F3-50A

50A

Fig.1

YB22F1-25A

25A

Fig.3

YB22F1-30A

30A

Fig.3

YB22F1-50A

50A

Fig.3

YB22F2-25A

25A

Fig.3

YB22F2-30A

30A

Fig.3

YB22F2-50A

50A

Fig.3

YB22F3-25A

25A

Fig.3

YB22F3-30A

30A

Fig.3

YB22F3-50A

50A

Fig.3

YB35F1-25A

25A

Fig.5

YB35F1-30A

30A

Fig.5

YB35F1-50A

50A

Fig.5

YB35F2-25A

25A

Fig.5

YB35F2-30A

30A

Fig.5

YB35F2-50A

50A

Fig.5

YB35F3-25A

25A

Fig.5

YB35F3-30A

30A

Fig.5

YB35F3-50A

50A

Fig.5

Medical type Tabulates:

Model No.

Rated Current
@40°C

Terminal Options

Medical equipment

Leakage current 250V/50Hz

Electrical Schematic

Rated Voltage(V)

Operating Frequency(Hz)

YB21F1-25A-x(R5)

25A

<5μA

Fig.2

115/250V

50/60Hz

YB21F1-30A-x(R5)

30A

Fig.2

YB21F1-50A-x(R5)

50A

Fig.2

YB21F2-25A-x(R5)

25A

Fig.2

YB21F2-30A-x(R5)

30A

Fig.2

YB21F2-50A-x(R5)

50A

Fig.2

YB21F3-25A-x(R5)

25A

Fig.2

YB21F3-30A-x(R5)

30A

Fig.2

YB21F3-50A-x(R5)

50A

Fig.2

YB22F1-25A-x(R5)

25A

Fig.4

YB22F1-30A-x(R5)

30A

Fig.4

YB22F1-50A-x(R5)

50A

Fig.4

YB22F2-25A-x(R5)

25A

Fig.4

YB22F2-30A-x(R5)

30A

Fig.4

YB22F2-50A-x(R5)

50A

Fig.4

YB22F3-25A-x(R6)

25A

Fig.4

YB22F3-30A-x(R6)

30A

Fig.4

YB22F3-50A-x(R6)

50A

Fig.4

YB35F1-25A-x(R7)

25A

Fig.6

YB35F1-30A-x(R7)

30A

Fig.6

YB35F1-50A-x(R7)

50A

Fig.6

YB35F2-25A-x(R7)

25A

Fig.6

YB35F2-30A-x(R8)

30A

Fig.6

YB35F2-50A-x(R8)

50A

Fig.6

YB35F3-25A-x(R8)

25A

Fig.6

YB35F3-30A-x(R9)

30A

Fig.6

YB35F3-50A-x(R9)

50A

Fig.6

EMC Filter for Sale - Common & Differential Mode | YBX 0 *Q: Fast-on 6.35x0.8mm S: Screw lug W: UL1015 18awg

Electrical schematic:

EMC Filter for Sale - Common & Differential Mode | YBX 3

Fig.1

EMC Filter for Sale - Common & Differential Mode | YBX 4

Fig.2

EMC Filter for Sale - Common & Differential Mode | YBX 5

Fig.3

EMC Filter for Sale - Common & Differential Mode | YBX 6

Fig.4

EMC Filter for Sale - Common & Differential Mode | YBX 7

Fig.5

EMC Filter for Sale - Common & Differential Mode | YBX 8

Fig.6

Mechanical Dimension(Unit: mm)

EMC Filter for Sale - Common & Differential Mode | YBX 9

Case	A	B	C	D	E	F	G	H	I	J	K	L

F1	72	65	39	75	45	85	22	4.2	4.2*6.2	M4/M6	M4	35

F2	98	80	40	95	50	105	24	4.2	4.2*6.2	M4/M6	M4	50

F3	120	100	50	115	80	130	26		4.2*6.2	M4/M6	M4	60

Tolerances	±1	±1	±1	±0.15	±1	±0.5	±0.5	±0.15	±0.15		±0.15	±2

Insertion loss table(In 50ohm system according IEC/CISPR No.17)

Common mode -------- differential mode

1A/3A 6A

EMC Filter for Sale - Common & Differential Mode | YBX 10

8A 10A

EMC Filter for Sale - Common & Differential Mode | YBX 12

20A 30A

EMC Filter for Sale - Common & Differential Mode | YBX 14

50A

EMC Filter for Sale - Common & Differential Mode | YBX 16
