400A Large Current Three Phase EMI Filter 250V/440V RFI Power Filter For Industrial System

400A Large Current Three Phase EMI Filter 250V/440V RFI Power Filter For Industrial System

three phase rfi filter

rfi interference filter

Place of Origin:

China

Brand Name:

YBX

Certification:

cUL, TUV, CQC, CE, ROHS

Model Number:

YX82G8-400A-B

Contact Us

Request A Quote
Product Details
Product:
YBX Three Phase EMI Filter
Rated Current:
1A-600A
Rated Voltage:
380V/440V
Environmental Temperature:
40°C
Operating Frequency:
50/60HZ
Line To Line:
1450DVC
Payment & Shipping Terms
Minimum Order Quantity
5pcs
Price
Negotiable
Packaging Details
56.5*28.5*22.5cm
Delivery Time
20-25 days
Payment Terms
T/T, L/C
Supply Ability
10000 Piece/Pieces per Month
Product Description

400A Large Current Three Phase EMI Filter 380V/440V RFI PowerFilter For Industrial System



Description Of Three Phase EMI Filter:

Three Phase EMI Filter is a device that is used to filter electromagnetic interference (EMI) from the three phase power supply that is delivered to industrial equipment.Three Phase EMI Filter are commonly used in a variety of industrial equipment and machinery, such as motors, pumps, and compressors.



Feature Of Three Phase EMI Filter:

< Anti-interference: Protection against interference of voltage.

< Industriality: Industry standard EMC solution for three-phase PDS filtering

< Three-phase power handling: A three-phase EMI filter is designed to handle the higher power levels and more complex waveforms of three-phase power,.

< High durability: Three-phase EMI filters are often designed to be rugged and durable, with high-quality materials and construction that can withstand tough industrial environments or other demanding applications.



Advantage Of Three Phase EMI Filter:

1. After years of efforts of the company's personnel, our three phase filter successively obtained the TUV,CQC, CE, ROSH certifications.

2. We have a professional EMI Filter R&D team to provide customers with selection and EMI solutions.

3. With 15 years of experience in EMI industry, we are a self-producing and self-marketing company and have advantages in price and delivery time

4. We cooperate with top scientific research laboratories to provide free EMC rectification technical support, samples; and free conduction test.



Technical Specification:

Item YX-82 series three phase filter Rated Current 1A~400A
Model YX82G8-400A-B Rated Voltage 250V/440V
Operating Frequency 50/60HZ Line to Line 2250VDC
Overload Current 1.5x rated current for 1 minute, once per hour Line to Ground 2700VDC
Transfer Function Low Pass Leakage Current 250VAC/50HZ 15mA Max
440VAC/60HZ 25mA Max
Package Type Surface Mount Environmental Temperature 40
Nominal Center Frequency 150K-30MHZ Input Impedance 50Ω
Insertion Loss 50~80dB Lead Time 5~15 weekday
Temperature Range 25 / 085 / 21 Price Negotiable
Flammability corresponding UL 94V-0 MOQ 1pcs



Rule of Nomination:



   YX  --------------- 82 --------G8 --------- 10A ----------Q

      |                       |              |                 |                 |

Three phase   circuit       case        current   Terminal Options



This nomination and the below informations just for your reference, we will make different part number and parameters according to customer's requests.



If you want to know more, pls email or consult us directly, we are ready to provide the service to you anytime!



Thank you!!!



Tabulates:



Model No. Rated Current
@40°C


Terminal Options*

Leakage current 440V/50Hz

Electrical Schematic

Rated Voltage(V) Operating Frequency(Hz)
YX81G5-10A-T 10A - - T

<1.0mA

Fig.1

250/440V

50/60Hz

YX81G520A-T 20A - - T Fig.1
YX81G5-30A-T 30A - - T Fig.1
YX81G5-40A-T 40A - - T Fig.1
YX81G5-50A-T 50A - - T Fig.1
YX81G5-60A-T 60A - - T Fig.1
YX81G5-80A-T 80A - - T

<2.0mA

Fig.1
YX81G5-100A-T 100A - - T Fig.1
YX81G5-120A-T 120A - - T

<5.0mA

Fig.1
YX81G5-160A-T 160A - - T Fig.1

400A Large Current Three Phase EMI Filter 250V/440V RFI Power Filter For Industrial System 0*Q: Fast-on 6.35x0.8mm               400A Large Current Three Phase EMI Filter 250V/440V RFI Power Filter For Industrial System 1  S: Screw lug            400A Large Current Three Phase EMI Filter 250V/440V RFI Power Filter For Industrial System 2 T: Terminal block





400A Large Current Three Phase EMI Filter 250V/440V RFI Power Filter For Industrial System 3

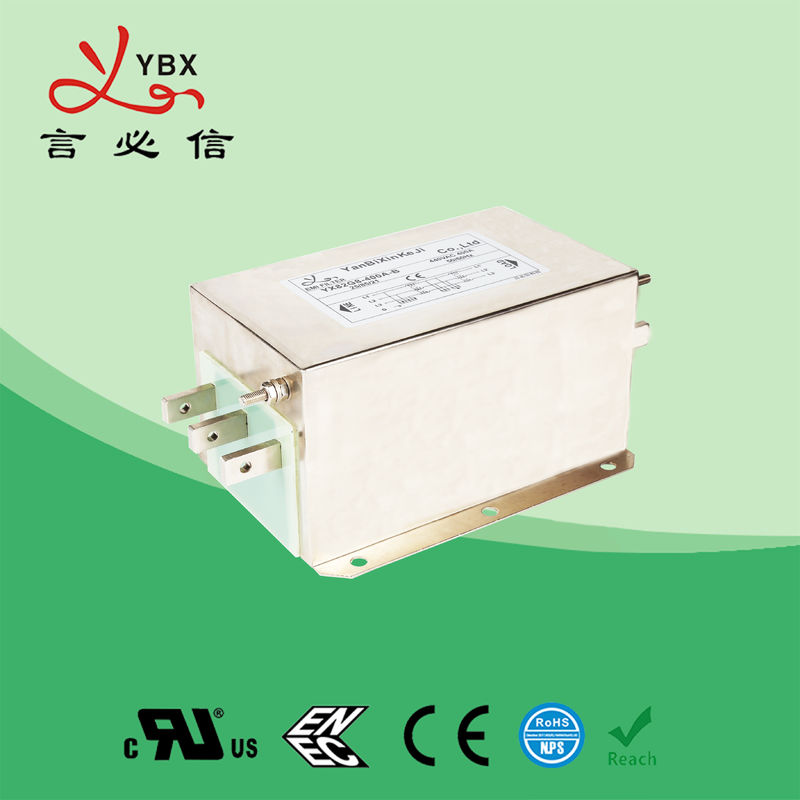

YX82G8-400A-B Picture:



400A Large Current Three Phase EMI Filter 250V/440V RFI Power Filter For Industrial System 4



Insertion loss table(In 50ohm system according IEC/CISPR No.17)



                       Common mode                              -------- differential mode



                             6/10A                                                                20A

  400A Large Current Three Phase EMI Filter 250V/440V RFI Power Filter For Industrial System 5             400A Large Current Three Phase EMI Filter 250V/440V RFI Power Filter For Industrial System 6



                            30A                                                                     40/50A

  400A Large Current Three Phase EMI Filter 250V/440V RFI Power Filter For Industrial System 7              400A Large Current Three Phase EMI Filter 250V/440V RFI Power Filter For Industrial System 8



                         100/200A

   400A Large Current Three Phase EMI Filter 250V/440V RFI Power Filter For Industrial System 9
