3 Phase 4 Wire EMI Filter 380V/520V Three Phase RFI Filter For Industrial Equipment

Foucs on-Power Line Filter, Noise Filter, Line Filter, EMI Filter, EMC Filter

YBX High attenuation M4 Screw Conection Three Phase Three Wire Filter

Three Phase Four Wire Filter:

YX93G3-20A-S is the three-phase four-wire filter.Its connection mode is the M4 screw, and the terminal block can be selected.The maximum rated current up to 100 amps. High reliability designed for industrial equipment usage with Three-phase Three-wire filter or Three-phase Four-wire filter.Good noise attenuation in both forward and reverse directions for common mode and normal mode.Custom-specific versions are available on request.

Features Of Three Phase Filter:

-- The rated current can be offered from 1 to 200 amps.
-- Various output selections such as terminal block,M4 screw terminal.
-- Good noise attenuation in both forward and reverse directions for common mode and normal mode.
-- High reliability designed for industrial equipment usage with 3-Phase 3-Wire and 3-Phase 4-Wire.

Product Parameters:

• Model: YX93G3-20A-S
• Output Mode: M4 Screw
• Rated Voltage: 380/520 VAC
• Rated Currents: Up to 200A
• Operating Frequency: 50/60Hz
• Hipot Rating (Line-To-Line): 1450VDC
• Hipot Rating (Line-To-Ground): 2250VDC
• Operating Temperature: -25 ~ +85°C
• Safety Compliance: CE

Typical Applications:

1. testing and measuring equipment
2. automation equipment
3. servo drives
4. lighting
5. telecom equipment
6. frequency inverters
7. motor drives

Filter Selection Table:

*Q: Fast-on 6.35x0.8mm S: Screw lug T: Terminal block

Naming Rule:

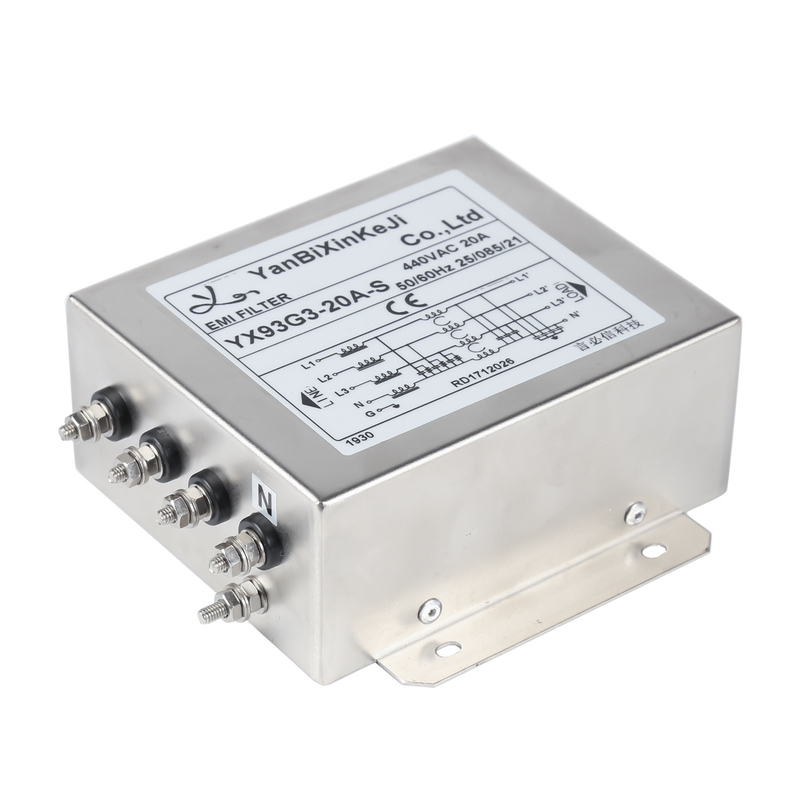

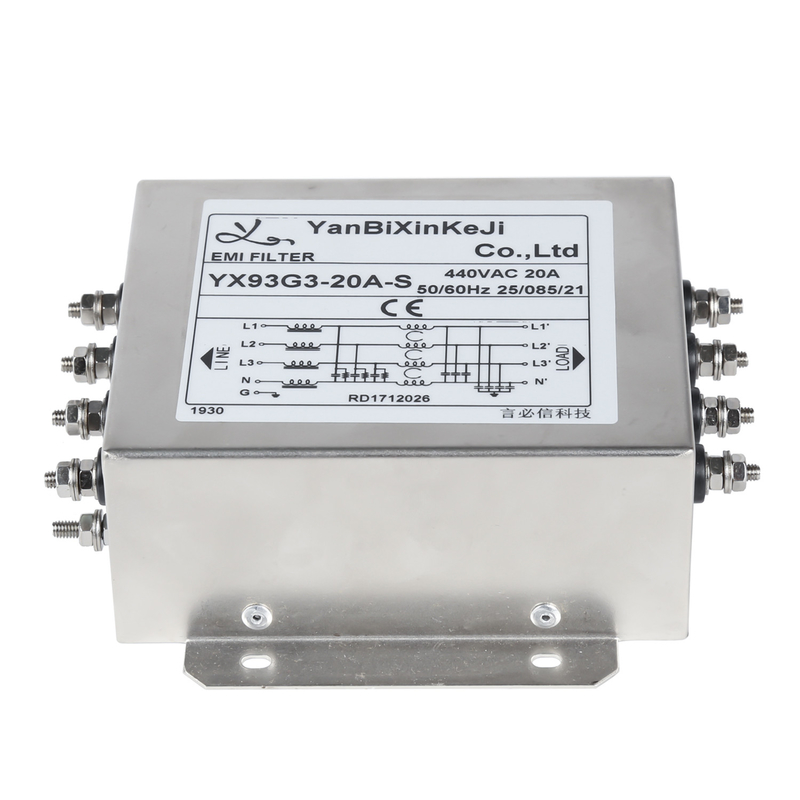

YX93G3-20A-S Filter Picture:

Physical Dimensions:

Electrical Schematic:

Characteristics:

(1) Voltage Rating............................................................................................250/440VAC

(2) Current Rating:

A.@115VAC............................................................................................... 20A RMS Max.

B.@250VAC............................................................................................... 20A RMS Max.

(3) Oprating Frequency:50/60Hz

(4) Leakage Current: each line to ground

A. 115VAC/60Hz........................................................................................... 7mA Max.

B. 250VAC/50Hz...........................................................................................14mA Max.

(5) Hipot Rating(for one minute)

A. Line to ground............................................................................................ 2250VDC

B. Line to line.................................................................................................. 1450VDC

(6) IR: 50M ohm A7 500VDC any input or output to ground
