One Stage Single Phase Filter 6A Low Leakage Current Power Line Filter

One Stage Single Phase Filter 6A Low Leakage Current Power Line Filter

400Hz EMI EMC Filter

400Hz EMI Filter

400Hz EMC Filter

Place of Origin:

China

Brand Name:

YBX

Certification:

cUL,TUV,CQC,CE,ROHS, ISO9001

Model Number:

YB11E1-6A-W

Contact Us

Request A Quote
Product Details
Flammability Corresponding To::
UL 94V-0
Rated Voltage Max.::
250VAC,50/60Hz
Operating Frequency::
DC To 400Hz
L-N::
1450VDC
L/N-G::
2000VAC/2250VDC
Climatic Category::
-25°C~+85°C(25/85/21)
Transfer Function:
Low Pass
Input Impedance:
50Ω
Material:
Hardware
Certification:
UL, TUV,CE, CQC, CB, ISO9001, ROHS,REACH
Payment & Shipping Terms
Minimum Order Quantity
1000PCS
Price
Negotiable
Packaging Details
56.5*28.5*22.5cm(one box)
Delivery Time
15-20days
Supply Ability
100000 Piece/Pieces per Month
Product Description

One Stage Single Phase Filter 6A Low Leakage Current Power Line Filter



YB11E1-6A-W Power Line Filter:

YB11E1-6A-W is the One Stage Power Line Filter. According to different equipment to choose the appropriate output mode, its connection mode can be selected fast-on terminal, M4 screw, electronic wire. The maximum rated current up to 20 amps. Designed with both common mode and differential mode performing high noise suppression.



Features Of Power Line Filter:

-- Rated currents from 1 to 10A

-- General-purpose filtering performance

-- Optional medical versions((R5) type)

-- Customized products according to customer's requirements.



Typical Applications:

-- Electrical and electronic equipment

-- Medical equipment

-- Datacom equipment

-- Office automation equipment



Filter Selection Table:
Part No. Case Rated Currents (A) Output Connections
YB11E1-1A E1 1 Fast-on terminal
YB11E1-3A E1 3
YB11E1-6A E1 6 Wire
YB11E1-8A E1 8
YB11E1-10A E1 10 M4 Screw
YB11E1-20A E1 20

One Stage Single Phase Filter 6A Low Leakage Current Power Line Filter 0*Q: Fast-on 6.35x0.8mm One Stage Single Phase Filter 6A Low Leakage Current Power Line Filter 1 S: Screw lug One Stage Single Phase Filter 6A Low Leakage Current Power Line Filter 2W: UL1015 18awg





Naming Rule:

YB 11 E1 - 6A - W

Our brand Circuit Dimension   Current   Output Connection
  11:11 circuit E1   6A :6 amp   Q:fast-on tab 250
        10A :10 amp   W:wire
        20A :20 amp   S:M4 screw



Technical Specification:

Item Power line Filter
Model Power line Filter YB-E
Transfer Function Low Pass
Package Type Surface Mount
Nominal Center Frequency 10K-30MHZ
Insertion Loss 60~90dB
Input Impedance 50Ω
Rated Voltage 115V/250V
Rated Current 1~10A
Environmental Temperature 40°C
Temperature Range 25 / 085 / 21
Operating Frequency 50/60HZ
Line to Line 1450VDC
Line to Ground 2250VDC
Maximum Leakage Current 250VAC/60HZ 0.8mA Max
MOQ 100pcs

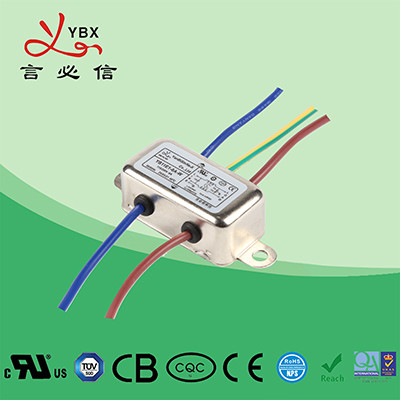

YB11E1-6A-W Product Picture:

One Stage Single Phase Filter 6A Low Leakage Current Power Line Filter 3





Electrical Schematic:

One Stage Single Phase Filter 6A Low Leakage Current Power Line Filter 4



Mechanical Dimension(Unit: mm)

One Stage Single Phase Filter 6A Low Leakage Current Power Line Filter 5

One Stage Single Phase Filter 6A Low Leakage Current Power Line Filter 6



Product Certificates:

One Stage Single Phase Filter 6A Low Leakage Current Power Line Filter 7
