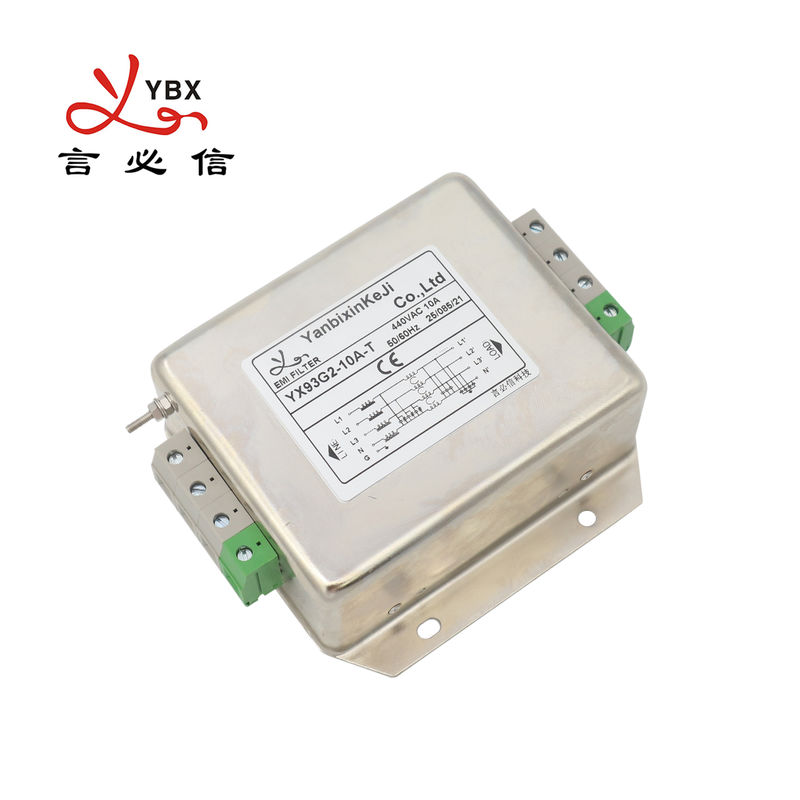

Three Phase Four Line Filter 380V/440V Terminal Block EMI Filter For Lift Traction Machine

Three Phase Four Line Filter 380V/440V Terminal Block EMI Filter For Lift Traction Machine

multi stage EMI EMC filter

Three Phase EMI EMC filter

15A EMI EMC Filter

Place of Origin:

China

Brand Name:

YBX

Certification:

UL, ENEC, CE, ROHS

Model Number:

YX93G2-10A-T

Contact Us

Request A Quote
Product Details
Voltage:
380V/440V
Current:
1A-30A
Temp:
40°C
Frequency:
50/60HZ
Certificate:
UL, ENEC CE ROHS
Overload Current:
1.5x Rated Current For 1 Minute, Once Per Hour
Flammability Corresponding To:
UL 94V-0
Hipot Rating:
L-L 2250VDC L-N 1600VDC L/N-G 4000VDC
Payment & Shipping Terms
Minimum Order Quantity
5pcs
Price
Negotiable
Packaging Details
56.5*28.5*22.5CM
Delivery Time
15-25 days
Supply Ability
2000pcs per month
Product Description

Three Phase Four Line Filter 380V/440V Terminal Block EMI Filter For Lift Traction Machine



Technical Data:



Item Three Phase Four Wire Filter
Model YX93G2-10A-S
Transfer Function Low Pass
Package Type Surface Mount
Nominal Center Frequency 150K-30MHZ
Insertion Loss 60~90dB
Input Impedance 50Ω
Rated Voltage 380V/440V
Rated Current 6A-100A
Environmental Temperature 40°C
Temperature Range 25 / 085 / 21
Operating Frequency 50/60HZ
Line to Line 1450VDC
Line to Ground 2250VDC or 2000VAC
Maximum Leakage Current 250VAC/60HZ 1.4mA Max. 440VAC/60HZ 2.5mA Max
MOQ 5pcs
Price USD4.8~88/Meter
Lead Time 3~15 weekday for Three Phase EMI Filter


Features:



--  Protection against interference of voltage.



--  Advanced two-stage filtering circuits with highly saturating resistant toroidal inductors



--  Customized products according to customer's requirements



Filter Selection Table:



Part No. Case Rated Currents (A) Output Connections
YX93G2-10A G2 10 Fast-on terminal
YX93G2-20A G2 20
YX93G2-30A G2 30 M4/M6/M8 Screw
YX93G2-40A G2 40
YX93G2-50A G2 50 Terminal block



Three Phase Four Line Filter  380V/440V Terminal Block EMI Filter For Lift Traction Machine 0*Q: Fast-on 6.35x0.8mm Three Phase Four Line Filter  380V/440V Terminal Block EMI Filter For Lift Traction Machine 1S: Screw lug Three Phase Four Line Filter  380V/440V Terminal Block EMI Filter For Lift Traction Machine 2T: Terminal block




*Q: Fast-on 6.35x0.8mm  S: solder 4.0x0.8mm   T: Terminal block



Electrical Schematic:

Three Phase Four Line Filter  380V/440V Terminal Block EMI Filter For Lift Traction Machine 3

Mechanical Dimension(Unit: mm)

Three Phase Four Line Filter  380V/440V Terminal Block EMI Filter For Lift Traction Machine 4

Three Phase Four Line Filter  380V/440V Terminal Block EMI Filter For Lift Traction Machine 5

YX93G2-10A-S Three Phase Filter:

Three Phase Four Line Filter  380V/440V Terminal Block EMI Filter For Lift Traction Machine 6


Insertion loss table(In 50ohm system according to IEC/CISPR No.17)



Three Phase Four Line Filter  380V/440V Terminal Block EMI Filter For Lift Traction Machine 7



Shipment:



---Shipping terms: DHL, UPS, FedEx, TNT, EMS

---Port is Shenzhen or as requests.



Factory Pictures:



Three Phase Four Line Filter  380V/440V Terminal Block EMI Filter For Lift Traction Machine 8

Three Phase Four Line Filter  380V/440V Terminal Block EMI Filter For Lift Traction Machine 9



Exhibition Pictures:

Three Phase Four Line Filter  380V/440V Terminal Block EMI Filter For Lift Traction Machine 10

Three Phase Four Line Filter  380V/440V Terminal Block EMI Filter For Lift Traction Machine 11

Three Phase Four Line Filter  380V/440V Terminal Block EMI Filter For Lift Traction Machine 12



Our Advantages:



1. National high-tech enterprises, brand assurance, reliable quality, after years of efforts of the company's personnel, products successively obtained the cUL, TUV, CQC, CE, ROSH certifications.



2. We have a professional R&D team; our aim is we won't let customers spend any extra money!



3. We cooperate with top scientific research laboratories to provide free EMC rectification technical support, samples; and free conduction test.



4. Automation technology, scale production, great price, excellent, service, fast delivery! We supply free samples and free replacement.



5. After-sale: within three months, free maintenance within six years, life-long maintenance!
