IEC Socket Type EMI Filters Low Pass Power Filters 6A Low Leakage Current
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | A-Series Socket Power Filters | Type | EMI Filter |
|---|---|---|---|
| Nominal Center Frequency | 50/60Hz | Insertion Loss | 30-100dB |
| Input Impedance | 50Ω | Rated Current | 1A~10A |
| Rated Voltage | 120/250VAC | Package Type | IEC Socket Type |
| High Light | IEC Socket EMI Filters,Low Leakage Current EMI Filters,EMI Low Pass Power Filters |
||
Product Description
6A Low Leakage Current IEC Socket Type EMI Filters Low Pass Power Filters
1.Product Parameters:
| Item Name | Low Pass IEC Insert EMI Filters |
| Model | YB11A4-6A-Q |
| Transfer Function | Low Pass |
| Package Type | Socket Type |
| Nominal Center Frequency | 150KHz-30MHz |
| Insertion Loss | 30~90dB |
| Input Impedance | 50Ω |
| Rated Voltage | 220V/440v |
| Rated Current | 1A~10A |
| Environmental Temperature | 40°C |
| Temperature Range | -25℃~+85℃ |
| Operating Frequency | 50/60HZ |
| Line to Line | 50VDC |
| Line to Ground | 2250VDC |
| Maximum Leakage Current | 250VAC/60HZ 7mA Max |
| MOQ | 1000pcs |

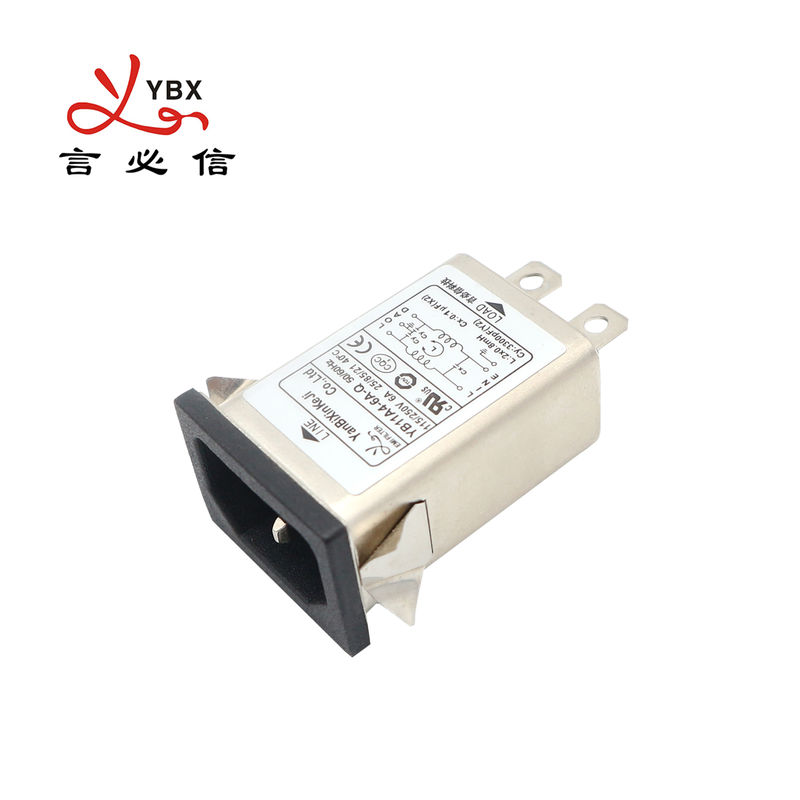

Product Picture:
Physical Dimensional:
Electrical Schematic:
2.Application Field
--LED lighting equipment
--Computer supporting equipment
--Financial equipment
--Fitness equipment
--Mechanical and electrical products
--Medical equipment
--Medical beauty instruments
--New energy vehicles
3.Product Certificates
Our products are fully certified.We have obtained ISO9001,CUL,TUV,CQC, CE, ROSH and other certifications.
4.FAQ
Q1: Are the products in stock? What is the MOQ?
A: Most of the products are in stock, please contact our business. Usually our MOQ is 100 pieces.
Q2: Are you a factory or a trader?
A: We are a manufacturer of EMI filters with 15 years of production experience.
Q3: How long is the delivery time?
A: We ensure fast delivery. Generally, it will take 2-5 days for samples; 10 to 15 for small orders, 15-25days for mass production after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Please contact us for details.
Q4: How about the payment terms?
A: We usually require T/T in advance. If the amount is more than 5000USD, we can do a 30% T/T deposit, a 70% T/T deposit before shipment, and a balance against shipment. And we also accept the L/C, Western Union, Paypal, etc.
Q5: What certifications do you have for your products?
A: We have certificates such as:ISO 9001, CE, TUV, UL, ROHS, ENEC, REACH, etc.
