Yanbixin RFI Power Filter 380V 100A Terminal Block Output Three Phase Filter For UPS

Yanbixin RFI Power Filter 380V 100A Terminal Block Output Three Phase Filter For UPS

rfi power line filter

rfi interference filter

Place of Origin:

China

Brand Name:

YBX

Certification:

cUL, TUV, CQC, CE, ROHS

Model Number:

YX82G6-100A-T

Contact Us

Request A Quote
Product Details
Product Name:
Terminal Block Three Phase Filter
Rated Current:
1A-1500A
Rated Voltage:
380V/440V
Environmental Temperature:
40°C
Operating Frequency:
50/60HZ
Impedance:
100Ω
Operating Temperature:
-20℃ To +80℃
Payment & Shipping Terms
Minimum Order Quantity
5pcs
Price
Negotiable
Packaging Details
56.5*28.5*22.5cm
Delivery Time
20-25 days
Payment Terms
T/T, L/C
Supply Ability
10000 Piece/Pieces per Month
Product Description

RFI Power Filter 440V 100A Terminal Block Output Three Phase Filter For Automation Equipment



Terminal Block Three Phase Filter:

YX82G6-100A-T is the terminal block three phase filter, compact structure, filters high current and voltage EMI. Applicable voltage range 380V~520V, optional current range 3A~100A, the frequency range of processing is 150KHz~30MHz.



Features Of Three Phase Filter:

1. Protection against interference of voltage

2. New connection terminal block, with safety protection

3. Available for Delta or WYE wiring with a variety of terminal connection options
4. High voltage and current rating to cover high power applications

5. There are a variety of parts and combinations to meet different customer's EMC tests



Typical Applications Of Three Phase EMI Filter:

1. For photovoltaic systems and industrial applications

2. Three-phase motor drives

3. UPS/SMPS

4. Industrial automation equipment



YX82G6 EMI Filter Specification:

Item Three Phase Filter
Model YX82G6-100A-T
Transfer Function Low Pass
Package Type Surface Mount
Nominal Center Frequency 150K-30MHZ
Insertion Loss 60~90dB
Input Impedance 100Ω
Rated Voltage 380V/440V
Rated Current 1~100A
Environmental Temperature 40°C
Temperature Range 25 / 085 / 21
Operating Frequency 50/60HZ
Line to Line 1450VDC
Line to Ground 2250VDC
Maximum Leakage Current 250VAC/60HZ 0.8mA Max
MOQ 5pcs



Filter Selection Table:

Part No. Case Rated Currents (A) Output Connections
YX82G6 G6 30 M4 screw/M6 screw
YX82G6 G6 50
YX82G6 G6 60 Terminal block
YX82G6 G6 80
YX82G6 G6 100 Copper bar

Yanbixin RFI Power Filter 380V 100A Terminal Block Output Three Phase Filter For UPS 0*Q: Fast-on 6.35x0.8mm          Yanbixin RFI Power Filter 380V 100A Terminal Block Output Three Phase Filter For UPS 1  S: Screw lug          Yanbixin RFI Power Filter 380V 100A Terminal Block Output Three Phase Filter For UPS 2 T: Terminal block



Naming Rule:

YX 82 G6 - 100A - S
| | |   |   |
Three Phase Circuit Dimension   Current   Output Connection
  82:82 circuit G6   50A :50 amp   S:M4 screw
        80A :80 amp   T:Terminal block
        100A :100 amp   B:Cooper bar



Mechanical Dimension(Unit: mm)

Yanbixin RFI Power Filter 380V 100A Terminal Block Output Three Phase Filter For UPS 3



Electrical Schematic:

Yanbixin RFI Power Filter 380V 100A Terminal Block Output Three Phase Filter For UPS 4

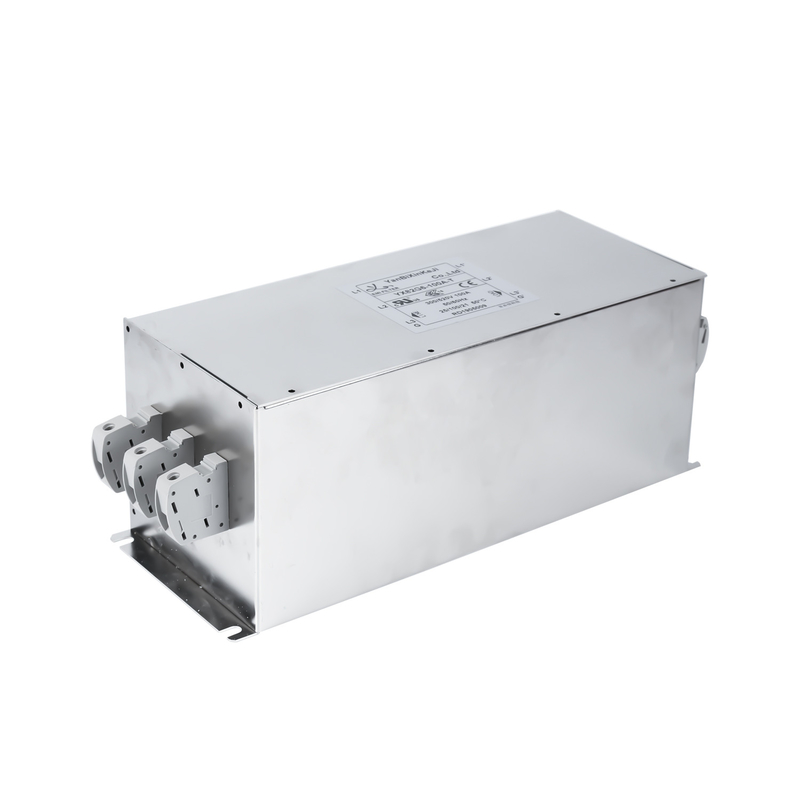

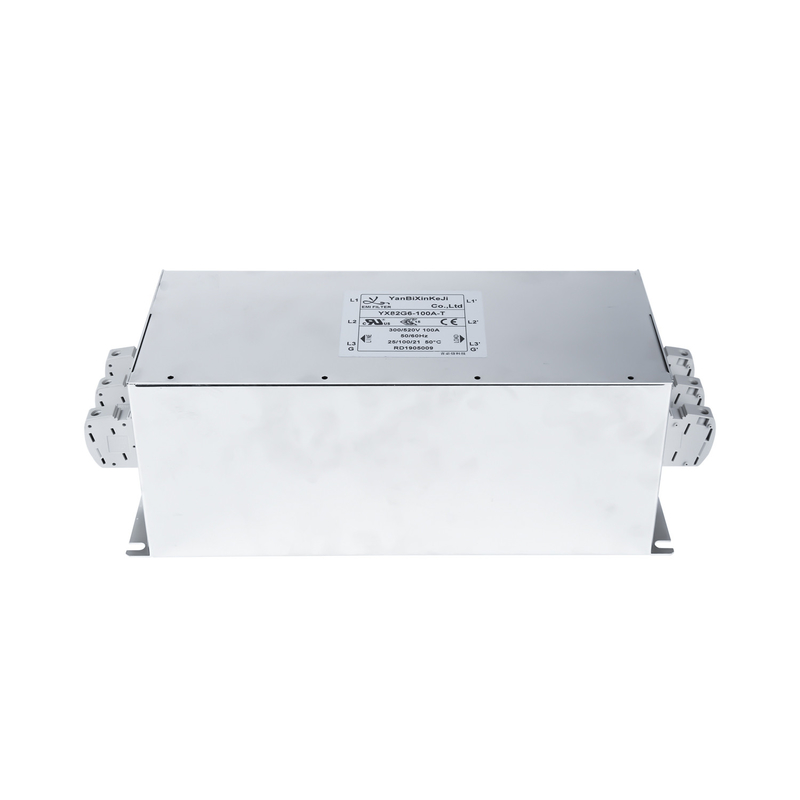

YX82G6-100A-T Three Phase Filter Picture:

Yanbixin RFI Power Filter 380V 100A Terminal Block Output Three Phase Filter For UPS 5



Our EMI Filter Company Strength:

Our company is a collection of electromagnetic compatibility (EMC) & EMI FILTERS research and development, production and sales of high new technical enterprise. After years of efforts of the company's personnel, products successively obtained the cUL,TUV,CQC, CE, ROSH certifications. We have ISO 9001:2015 to ensure the product quality. We became the listed company in 2016; and now we are the top 500 domestic enterprises designated suppliers!
