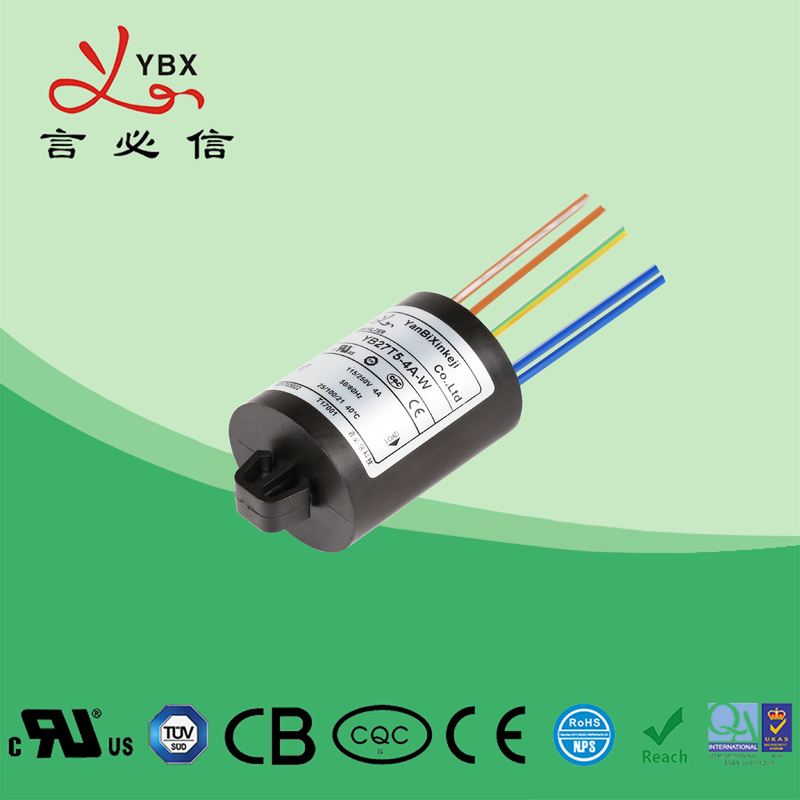

250VAC UL 94V-0 EMI Power Filter For Power Supply Washing Machine

250VAC UL 94V-0 EMI Power Filter For Power Supply Washing Machine
250VAC UL 94V-0 EMI Power Filter For Power Supply Washing Machine

Large Image :  250VAC UL 94V-0 EMI Power Filter For Power Supply Washing Machine

Product Details:
Place of Origin: ShenZhen
Brand Name: YBX
Certification: cUL, TUV, CQC, CE, ROHS
Model Number: YB27T5-4A-W
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Delivery Time: 20-25 days

250VAC UL 94V-0 EMI Power Filter For Power Supply Washing Machine

Description
Rated Voltage Max: 115 / 250 VAC Operating Frequency: 50 / 60Hz
Climatic Category: -25°C~+100°C(25/100/21) Name: EMI Power Filter
Flammability: UL 94V-0 Application: Washing Machine
High Light:

UL 94V-0 EMI Power Filter

,

250VAC EMI Power Filter

,

250VAC emi noise filter

250VAC UL 94V-0 EMI Power Filter For Power Supply Washing Machine



EMI power filters, also called EMI power suppression filters. are an effective way to protect against the harmful impacts of electromagnetic interference. What does an EMI power filter do? When attached to devices or circuits. EMI power filters can suppress electromagnetic noise transmitted through conduction. These filters extract any unwanted current conducted through wiring or cables. while allowing desirable currents to flow freely. So, it is also called an EMI power line filter.



Technical Data Of EMI Filter for Power Supply



Model no. YB27T5-4A-W
Rated Voltage Max.: 115 / 250 VAC
Operating frequency: 50 / 60Hz
Rated currents: 4A
Leakage Current: Each line to ground 115VAC 60Hz
250VAC 50Hz
Hipot Rating : Line to Ground:2250VDC
Line to Line: 500VDC
Climatic category -25°C~+100°C(25/100/21)
Design corresponding to: UL1283, CSA C22.2 No.8,
IEC/EN 60939,
CQC GB 15288/GB 15287-2008
Flammability corresponding to: UL 94V-0
Package: Cartons



Features Of EMI Filter for Power Supply

1. Easy to install with bracket or buckle design

2. There are a variety of parts and combinations to meet different customer's EMC tests

3. Customized products according to customer's requirements

Typical Applications

1. Washing machine

2. Refrigerator

3. Vending machine

4. Dishwasher and other white goods

Electrical schematic Of EMI Filter for Power Supply

emi power filter schematic



Mechanical Dimension(Unit: mm)



emi filter power supplyimage

Insertion loss table(In 50ohm system according to IEC/CISPR No.17)

common-mode --------------- differential mode



emi filter for power supply
