Place of Origin:
ShenZhen
Brand Name:
YBX
Certification:
cUL, TUV, CQC, CE, ROHS
Model Number:
YB27T5-6A-W
Contact Us
250V Washing Machine EMI Filter 4A Plastic Housing Power Filter Wire Lead Output
EMI power filter, also called EMI power suppression filter. are an effective way to protect against the harmful impacts of electromagnetic interference. What does an EMI power filter do? When attached to devices or circuits. EMI power filters can suppress electromagnetic noise transmitted through conduction. These filters extract any unwanted current conducted through wiring or cables. while allowing desirable currents to flow freely. So, it is also called an EMI power line filter.
Technical Data Of EMI Filter
| Model no. | YB27T5-6A-W |
| Rated Voltage Max.: | 115 / 250 VAC |
| Operating frequency: | 50 / 60Hz |
| Rated currents: | 6A |
| Leakage Current: Each line to ground | 115VAC 60Hz |
| 250VAC 50Hz | |
| Hipot Rating : | Line to Ground:2250VDC |
| Line to Line: 500VDC | |
| Climatic category | -25°C~+100°C(25/100/21) |
| Design corresponding to: | UL1283, CSA C22.2 No.8, |
| IEC/EN 60939, | |
| CQC GB 15288/GB 15287-2008 | |
| Flammability corresponding to: | UL 94V-0 |
| Package: | Cartons |
Filter Selection Table:
| Part No. | Case | Rated Currents (A) | Output Connections |
| YB27T5-1A | T5 | 1 | W: Wire Lead |
| YB27T5-4A | T5 | 4 | |
| YB27T5-6A | T5 | 6 | |
| YB27T5-10A | T5 | 10 | |
| YB27T5-16A | T5 | 19 |
W: UL1015 18awg
Features Of EMI Filter For Washing Machine
1. Easy to install with bracket or buckle design
2. There are a variety of parts and combinations to meet different customer's EMC tests
3. Customized products according to customer's requirements
1. Washing machine
2. Refrigerator
3. Vending machine
4. Dishwasher and other white goods
Mechanical Dimension(Unit: mm)

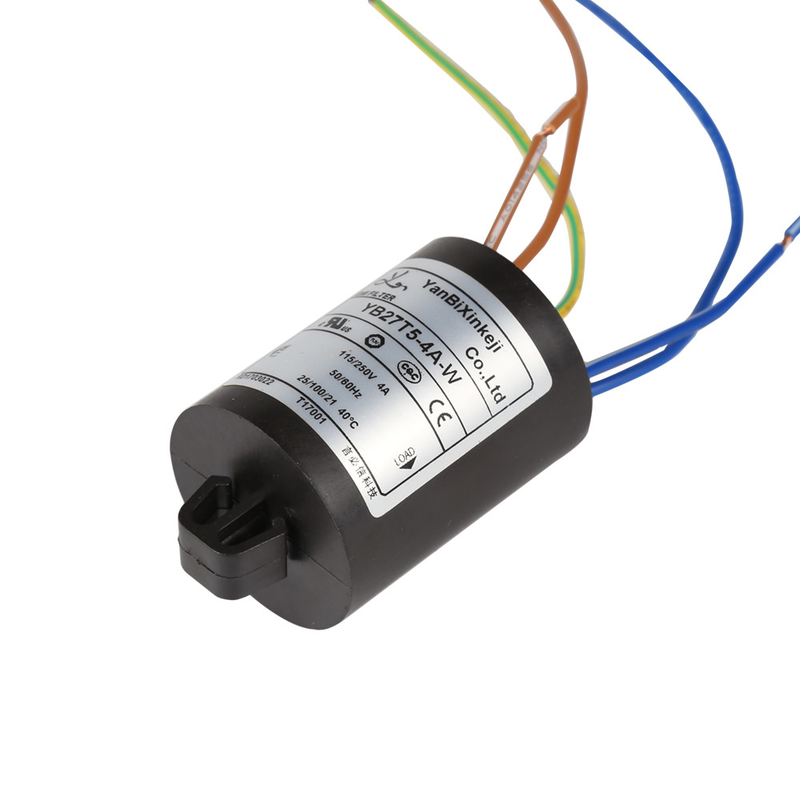

YB27T5-6A-W EMI Filter Product Picture:
A1: You can contact us by email about your order details, or place an order online.
A2: After you confirm our PI, we will request you to pay. T/T and Paypal, .
A3: Replacement. If there are some defective items, we usually credit to our customer or replace in next shipment.
A4: We have spot inspection and finished product inspection. We check the goods when they go into next step production procedure.
