YB22D3 M4 Screw Output EMI Power Filter 10A Two Stage Single Phase Filter

YB22D3 M4 Screw Output EMI Power Filter 10A Two Stage Single Phase Filter

YB22D3 EMI Power Filter

10A EMI Power Filter

Place of Origin:

China

Brand Name:

YBX

Certification:

CQC CE CB TUV ROHSE

Model Number:

YB22D3-10A-S

Contact Us

Request A Quote
Product Details
Product Name:
Two-stage Single Phase Filter
Rated Voltage:
115/250VAC
Rated Current:
3A~20A
Insertion Loss:
30-100dB
Input Impedance:
50Ω
Package Type:
Surface Mount
Payment & Shipping Terms
Minimum Order Quantity
100pcs
Price
Negotiable
Packaging Details
56.5*28.5*22.5cm
Delivery Time
5-8 work day
Payment Terms
T/T, L/C
Supply Ability
60000 Pieces/month
Product Description

YB22D3 M4 Screw Output EMI Filter Ehanced 10A Two-stage Single Phase Filter For Data Equipment



YB22D3 M4 Screw Output EMI Filter Ehanced 10A Two-Stage Single Phase Filter

We have the relevant product's certificates,multiple installation options are available, product can be customized working with the top research LABS to provide free EMC diagnostic test



Technical Specification:



Item Ehanced single phase filter
Model YB22D3-10A-S
Transfer Function Low Pass
Package Type Surface Mount
Nominal Center Frequency 10K-30MHZ
Insertion Loss 60~90dB
Input Impedance 50Ω
Rated Voltage 115V/250V
Rated Current 3~200A
Environmental Temperature 40°C
Temperature Range 25 / 085 / 21
Operating Frequency 50/60HZ
Line to Line 1450VDC
Line to Ground 2250VDC
Maximum Leakage Current 250VAC/60HZ 0.8mA Max



Features:



-- Rated currents from 3 to 30A



-- General purpose filtering performance



-- Optional medical versions((R5) type)



-- Customized products according to customer's requirements.



Typical Applications:



-- Electrical and electronic equipment



-- Medical equipment



-- Datacom equipment



-- Office automation equipment



Filter Selection Table:



Part No. Case Rated Currents (A) Output Connections
YB22D3-3A D3 3 Fast-on terminal
YB22D3-6A D3 6
YB22D3-10A D3 10 M4/M6/M8 Screw
YB22D3-15A D3 15
YB22D3-20A D3 20 Wire



YB22D3 M4 Screw Output EMI Power Filter 10A Two Stage Single Phase Filter 0*Q: Fast-on 6.35x0.8mm YB22D3 M4 Screw Output EMI Power Filter 10A Two Stage Single Phase Filter 1S: Screw lug YB22D3 M4 Screw Output EMI Power Filter 10A Two Stage Single Phase Filter 2W: UL1015 18awg

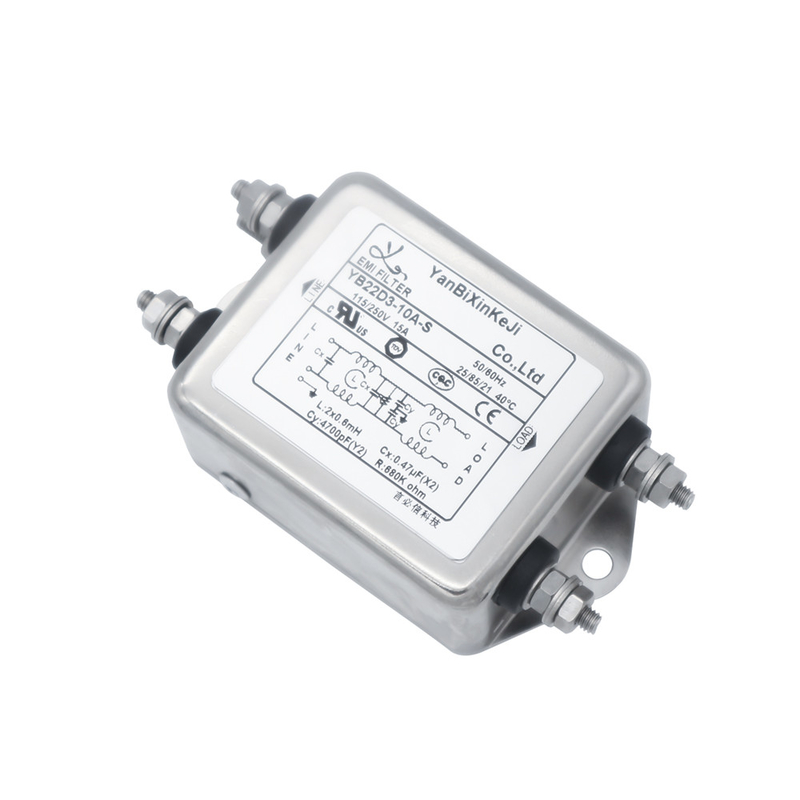

YB22D3-10A-S EMI Filter Picture:



YB22D3 M4 Screw Output EMI Power Filter 10A Two Stage Single Phase Filter 3


Insertion loss table(In 50ohm system according IEC/CISPR No.17)



YB22D3 M4 Screw Output EMI Power Filter 10A Two Stage Single Phase Filter 4



FAQ



1. What is an EMI power filter?



A: EMI power filters are electromagnetic interference mitigating components used to reduce the disturbances in a power line. They are commonly made of inductors and capacitors and are collectively called passive EMI power filters.



2. Why do we need EMI filter?



A: Electromagnetic compatibility (EMC) is an important indicator to measure the quality of electronic products, and it has increasingly become the key in the design of electronic products. In the design process of the power system, the introduction of electromagnetic compatibility design can improve the overall anti-interference ability of the power system, extend the service life of the system, and ensure the safety of use. Therefore, the electromagnetic interference filter is a device that provides good electromagnetic compatibility.



3. Where should I place my EMI filter?



A: A power line or mains EMI filter is placed at the power entry point of the equipment that it is being installed into to prevent noise from exiting or entering the equipment. Essentially, an EMI filter is made up of two basic types of components–capacitors and inductors.



4. How does EMI filter works?



A: EMI, or Electro-Magnetic Interference, is defined as unwanted electrical signals and can be in the form of conducted or radiated emissions. The capacitors provide a low impedance path to divert the high frequency noise away from the input of the filter, either back into the power supply, or into the ground connection.
