Place of Origin:
CHINA
Brand Name:
YBX
Certification:
CUL CQC CE ROHS
Model Number:
YB12D2-20A-Q(R)
Contact Us

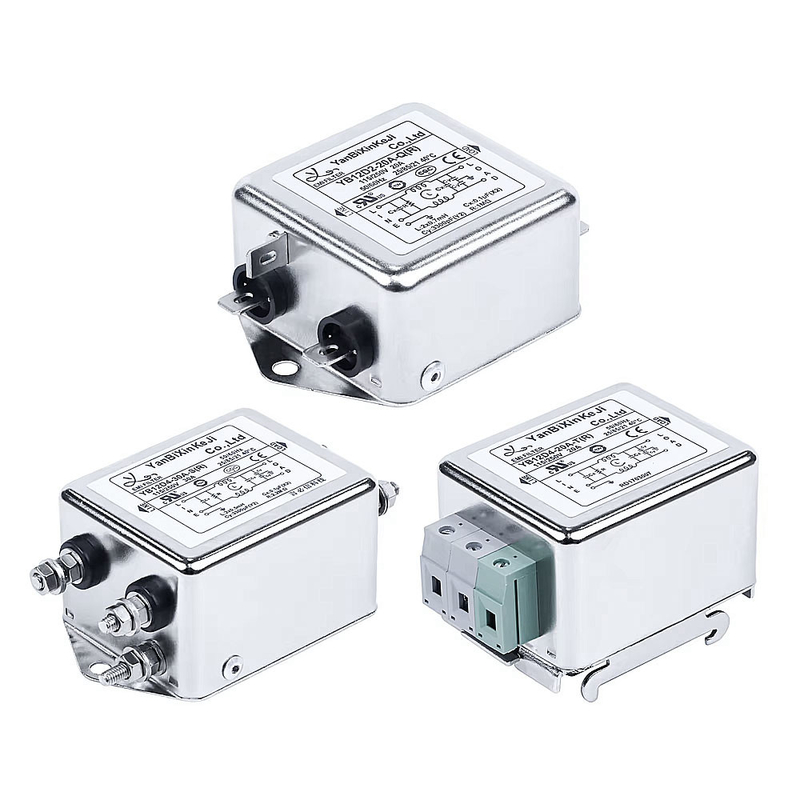

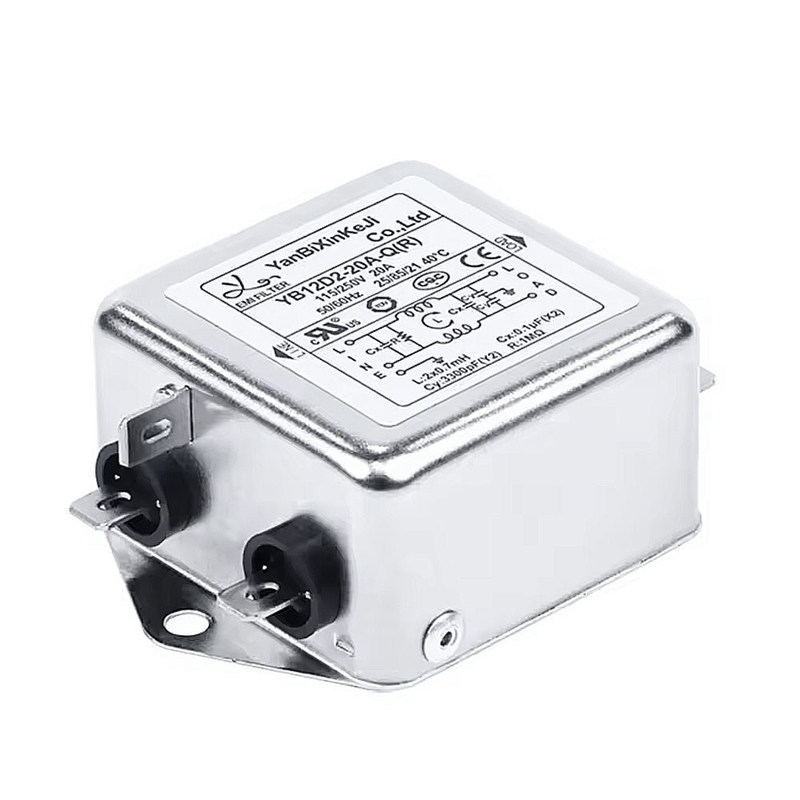

The YB12D2-20A-Q(R) EMI filter for electronic equipment features a low pass transfer function, surface mount package type, and a nominal center frequency range of 10K-30MHz. With an insertion loss of 60~90dB and an input impedance of 50Ω, this filter is suitable for rated voltages of 115V/220V and rated currents ranging from 1A to 100A. It operates effectively at an environmental temperature of 40°C and a temperature range of 25 to 85 degrees Celsius, with an operating frequency of 50/60Hz. The line to line voltage is rated at 1450VDC, while the line to ground voltage can handle 2250VDC or 2000VAC. The maximum leakage current is 1.4mA at 115VAC/60Hz and 2.5mA at 250VAC/60Hz.
| Product name | EMI Filters |
| Transfer Function | Low Pass |
| Package Type | Surface Mount |
| Nominal Center Frequency | 10K-30MHZ |
| Insertion Loss | 60~90dB |
| Rated Voltage | 115V/220V |
| Rated Current | 1A-100A |
| Operating Frequency | 50/60HZ |
Product Features:
