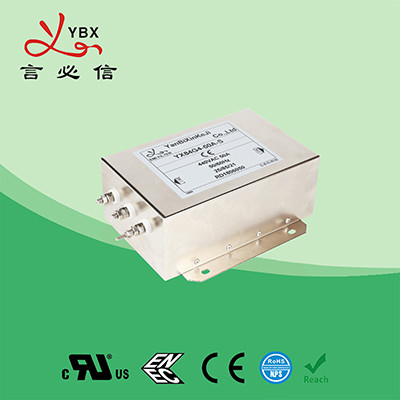

UL 94V-0 440VAC 10A 3 Phase EMI Filter With CE ROHS Approvals

Description
Material: Hardware Item: YBX 3-phase 4-line EMI Filter
Rated Voltage: 250/440VAC,50/60Hz Rated Currents: 10A 30A 40A 50A 60A 80A 100A
Name: 3 Phase EMI Filter Use: Office Equipment
High Light:

10A 3 Phase EMI Filter

,

440VAC 3 Phase EMI Filter

,

10A 3 phase power filter

UL 94V-0 440VAC 10A 3 Phase EMI Filter With CE ROHS Approvals



3-phase 4-line EMI filter with high-frequency attenuation for Office and High power office equipment



Description of EMC filter

1, Rated currents from 3 to 200A

2, High attenuation performance up to 300 MHz

3, Voltage rating 440VAC for worldwide acceptance

4, Approvals: CE, ROHS



Item YBX 3-phase 4-line EMI filter
Part Number YX93G4-60A-S
Rated voltage 250/440VAC,50/60Hz
Operating frequency DC to 60Hz
Rated currents 3~200A@40°C
Hipot Rating L-L 2250VDC
  L-N 1600VDC
  L/N-G 4000VDC
Overload Current: 1.5x rated current for 1 minute, once per hour
Climatic category -25°C~+85°C(25/85/21)
Design corresponding to UL1283, CSA C22.2 No.8,
  IEC/EN 60939,
  CQC GB 15288/GB 15287-2008
Flammability UL 94V-0



Features:

  • Protection against interference of voltage.
  • Advanced two-stage filtering circuits with high saturating resistant toroidal inductors
  • Customized products according to customer's requirements



Typical Applications:

  • Applications requiring high-frequency attenuation
  • High power office equipment
  • Office and data processing equipment

UL 94V-0 440VAC 10A 3 Phase EMI Filter With CE ROHS Approvals 0







Rule of Nomination:

YX   93   G4 -  60A -  S/T/B

         I      I        I         I

Circuit  case current connection



Electrical schematic:

UL 94V-0 440VAC 10A 3 Phase EMI Filter With CE ROHS Approvals 1



Tabulates:



Model No.

Rated Current
@40°C
Terminal Options* Leakage current 440V/50HZ Rated Voltage(V) Operating Frequency(Hz)
UL 94V-0 440VAC 10A 3 Phase EMI Filter With CE ROHS Approvals 2UL 94V-0 440VAC 10A 3 Phase EMI Filter With CE ROHS Approvals 3 UL 94V-0 440VAC 10A 3 Phase EMI Filter With CE ROHS Approvals 4 UL 94V-0 440VAC 10A 3 Phase EMI Filter With CE ROHS Approvals 5
YX93G2-3A 3A Q S T <5.0mA 250/440V 50/60Hz
YX93G2-6A 6A Q S T
YX93G2-10A 10A Q S T
YX93G3-15A 15A Q S T
YX93G3-20A 20A - S T
YX93G3-25A 25A - S T
YX93G3-30A 30A - S T
YX93G5-40A 40A - S T <10.0mA
YX93G5-50A 50A - S T
YX93G4-60A 60A - S T
YX93G4-70A 70A - S T
YX93G4-80A 80A - S T
YX93G4-100A 100A - S T <20.0mA
YX93G4-130A 130A - S T
YX93G6-150A 150A - S T
YX93G6-200A 200A - S T

UL 94V-0 440VAC 10A 3 Phase EMI Filter With CE ROHS Approvals 3*Q: Fast-on 6.35x0.8mm UL 94V-0 440VAC 10A 3 Phase EMI Filter With CE ROHS Approvals 4S: Screw lug UL 94V-0 440VAC 10A 3 Phase EMI Filter With CE ROHS Approvals 5T: Terminal block



Mechanical Dimension(mm):

UL 94V-0 440VAC 10A 3 Phase EMI Filter With CE ROHS Approvals 9

Case G2 G3 G4 G5 G6 Tolerances
公差
A 98 120 200 150 260 ±1
B 80 100 127 105 170 ±1
C 40 50 80 60 100 ±1
D 95 115 150 120 196 ±0.15
E 105 130 170 135 220 ±1
F 50 59 75 60 102 ±0.5
G 20 28 50 35 65 ±0.5
H 4.5*6.5 4*6 6*9 4*6 8*12 ±0.15
I 50 60 117 90 172 ±0.15
J M4 M4 M6/M8 M4/M6 M8
K M4/M6 M4/M6 M8/M10 M6/M8 M10



Insertion loss table(In 50ohm system according to IEC/CISPR No.17)



                      UL 94V-0 440VAC 10A 3 Phase EMI Filter With CE ROHS Approvals 10common-mode                  ---------------differential mode



UL 94V-0 440VAC 10A 3 Phase EMI Filter With CE ROHS Approvals 11

UL 94V-0 440VAC 10A 3 Phase EMI Filter With CE ROHS Approvals 12

UL 94V-0 440VAC 10A 3 Phase EMI Filter With CE ROHS Approvals 13

UL 94V-0 440VAC 10A 3 Phase EMI Filter With CE ROHS Approvals 14

UL 94V-0 440VAC 10A 3 Phase EMI Filter With CE ROHS Approvals 15

UL 94V-0 440VAC 10A 3 Phase EMI Filter With CE ROHS Approvals 16UL 94V-0 440VAC 10A 3 Phase EMI Filter With CE ROHS Approvals 17
