1A-60A Three Phase EMI Filters Three Stage Filtering High Quality

1A-60A Three Phase EMI Filters Three Stage Filtering High Quality

Low Pass Three Phase EMI Filters

100dB Three Phase EMI Filters

Three Phase EMI Filters 1450VDC

Place of Origin:

China

Brand Name:

YBX

Certification:

CUL,TUV,CQC,CE,ROHS,CB,ENEC,REACH

Model Number:

YX84G4-60A-S

Contact Us

Request A Quote
Product Details
Product Name:
Three Phase Phase EMI Filters
Stopband Attenuation:
20~100dB
Rated Current:
1A-60A
Rated Voltage:
120/250VAC
Line To Line:
1450VDC
Line To Ground:
2250VDC
Operating Frequency:
50/60HZ
Application:
Measuring And Testing Instruments
Payment & Shipping Terms
Minimum Order Quantity
500PCS
Price
Negotiable
Packaging Details
56.5*28.5*22.5cm(one box)
Delivery Time
5-8 Work Days
Payment Terms
T/T
Supply Ability
500000 Piece/Pieces per Month
Product Description

High frequency attenuation Low Pass Filter Three Phase Phase EMI Filters



1.Product Parameters:



Product Name Three Phase EMI Filter
Model YX84G4-60A-S
Transfer Function Low Pass
Package Type Surface Mount/Bolts Mount
Nominal Center Frequency 150K-30MHZ
Insertion Loss 100~90dB
Input Impedance 50Ω
Rated Voltage 380V/440V
Rated Current 1~60A
Environmental Temperature 40°C
Temperature Range -25℃~+85℃
Operating Frequency 50/60HZ
Line to Line 1450VDC
Line to Ground 2250VDC
Maximum Leakage Current 250VAC/60HZ 7mA Max
MOQ 1000pcs
Price Ask customer service
Lead Time 5~15 work days

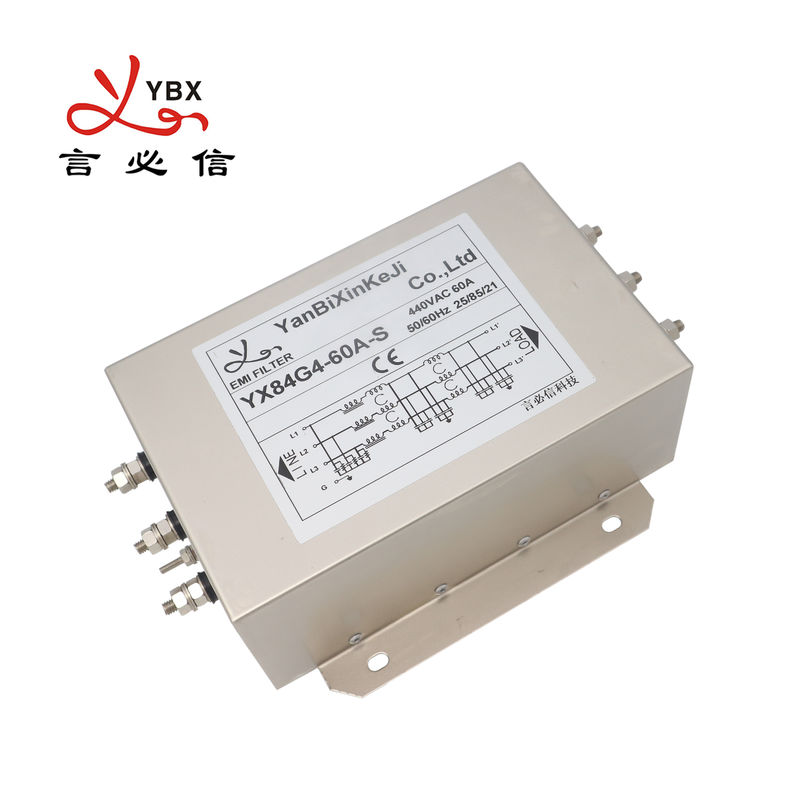

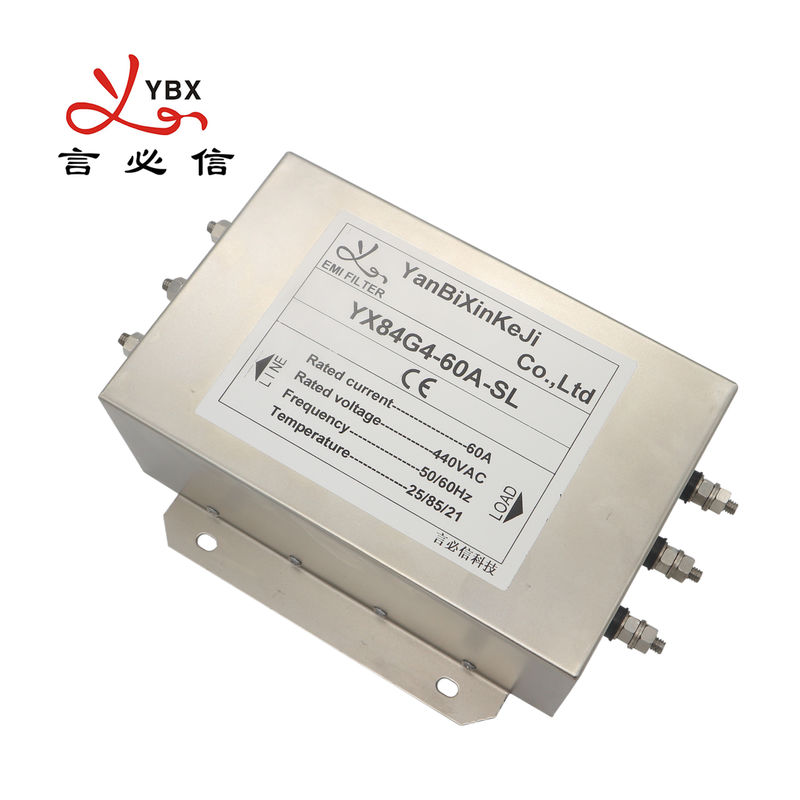

Product picture:

1A-60A Three Phase EMI Filters Three Stage Filtering High Quality 0

1A-60A Three Phase EMI Filters Three Stage Filtering High Quality 1



Physical Dimensional:



1A-60A Three Phase EMI Filters Three Stage Filtering High Quality 2

1A-60A Three Phase EMI Filters Three Stage Filtering High Quality 3



Electrical schematic:



1A-60A Three Phase EMI Filters Three Stage Filtering High Quality 4





2.Application Field



--LED lighting equipment

--Computer supporting equipment

--Financial equipment

--Testing and measuring instruments

--Household electrical equipment

--Fitness equipment

--Mechanical and electrical products

--Medical equipment

--Medical beauty instruments

--New energy vehicles



1A-60A Three Phase EMI Filters Three Stage Filtering High Quality 5



3.Our Strengths

1.After years of efforts of the company's personnel, products successively obtained the cUL,TUV,CQC, CE, ROSH certifications.

2.We have a professional R&D team; our aims is we won't let customers spend any extra money!

3.National high-tech enterprises, brand assurance, reliable quality, and we have the relevant product certifications.

4.We cooperate with top scientific research laboratories to provide free EMC rectification technical support, samples; and free conduction test.

5.Automation technology, scale production, great price,excellent, service, fast delivery! Free replacement within three months, free maintenance within six years, life-long maintenance!





4.Certification



We have obtained ISO9001,CUL,TUV,CQC, CE, ROSH and other certifications.



1A-60A Three Phase EMI Filters Three Stage Filtering High Quality 6



5. FAQ



Q1: Do you support custom products?
A: Yes, we can develop new mold at you need if you can provide us with the samples or drawings and specification.

Q2: Are you a factory or a trader?
A: We are a manufacturer of EMI filters with 15 years of production experience.

Q3: How long is the delivery time?
A: We ensure fast delivery. Generally, it will take 2-5 days for samples; 10 to 15 for small orders, 15-25days for mass production after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Please contact us for details.

Q4: How about the payment terms?
A: We usually require T/T in advance. If the amount is more than 5000USD, we can do a 30% T/T deposit, a 70% T/T deposit before shipment, and a balance against shipment. And we also accept the L/C, Western Union, Paypal, etc.

Q5: What certifications do you have for your products?
A: We have certificates such as:ISO 9001, CE, TUV, UL, ROHS, ENEC, REACH, etc.
