440V Three Phase Four Wire Filter 150A EMI Suppression Filter For Industrial Application

440V Three Phase Four Wire Filter 150A EMI Suppression Filter For Industrial Application

three phase emi filter

3 phase emc filter

Place of Origin:

China

Brand Name:

YBX

Certification:

cUL, ENEC, CE, ROHS, ISO

Model Number:

YX92G6-150A-T

Contact Us

Request A Quote
Product Details
Product Name:
Three Phase Filter
Rated Voltage:
380V/440V
Rated Current:
1A-100A
Case:
Metal Case
Frequency:
50/60HZ
Line To Line:
1450VDC
Line To Ground:
2250VDC Or 2000VAC
MOQ:
5pcs
Payment & Shipping Terms
Minimum Order Quantity
5pcs
Price
Negotiable
Packaging Details
56.5*28.5*22.5CM
Delivery Time
15-25 days
Supply Ability
2000pcs per month
Product Description

440V Three Phase Four Wire Filter 150A EMI Suppression Filter For Industrial Application



Technical Specification:



Item 3 Phase 3 Wire Filter
Model 3 Phase EMI Filter -YX92G series
Transfer Function Low Pass
Package Type Surface Mount
Nominal Center Frequency 150K-30MHZ
Insertion Loss 60~90dB
Input Impedance 50Ω
Rated Voltage 380V/440V
Rated Current 1A-100A
Environmental Temperature 40°C
Temperature Range 25 / 085 / 21
Operating Frequency 50/60HZ
Line to Line 1450VDC
Line to Ground 2250VDC or 2000VAC
Maximum Leakage Current 115VAC/60HZ 1.4mA Max. 250VAC/60HZ 2.5mA Max
MOQ 5pcs
Price

USD4.8~88/Meter

Lead Time 3~15 weekday for Low Pass EMI Filter



Features:



1. Protection against interference of voltage.



2. YX92 filters provide a broadband common and differential-mode attenuation performance, it still can be available when the interference is larger.



3. Customized products according to customer's requirements.



Typical Applications:



1. For photovoltaic systems and industrial applications



2. Three-phase motor drives



3. UPS/SMPS



4. Industrial automation equipment



Rule of Nomination:



YX-----92-------G6--------150A-----------S

            ¦            ¦               ¦                  ¦

      circuit     case      current    connection



Tabulates:



Model No. Rated Current
@40°C


Terminal Options*

Leakage current 440V/50Hz Electrical Schematic

Rated Voltage(V) Operating Frequency(Hz)


YX81G1-1A 1A Q S T <1.0mA Fig.1 250/440V 50/60Hz
YX81G1-3A 3A Q S T Fig.1
YX81G1-6A 6A Q S T Fig.1
YX81G1-10A 10A Q S T Fig.1
YX81G1-20A 20A Q S T Fig.1
YX81G1-30A 30A - S T Fig.1
YX81G2-30A 30A - S T <2.0mA Fig.1
YX81G2-40A 40A - S T Fig.1
YX81G3-40A 40A - S T <5.0mA Fig.1
YX81G3-50A 50A - S T Fig.1
YX81G3-60A 60A - S T Fig.1
YX81G5-80A 80A - S T <7.0mA Fig.1
YX81G5-100A 100A - S T Fig.1
YX81G6-200A 200A - S T <10.0mA Fig.1



Electrical Schematic:

440V Three Phase Four Wire Filter 150A EMI Suppression Filter For Industrial Application 0

Mechanical Dimension(Unit: mm)

440V Three Phase Four Wire Filter 150A EMI Suppression Filter For Industrial Application 1

440V Three Phase Four Wire Filter 150A EMI Suppression Filter For Industrial Application 2

Case A B C D E F G H I J K L
G1 72 65 39 75 85 35 22   45 M4 M4/M6
G2 98 80 40 95 105 50 20 4.5*6.5 50 M4 M4/M6
G3 120 100 50 115 130 50 28 4*6 60 M4 M4/M6
G5 150 105 60 120 135 55 35 4*6 90 M6 M8
G6 260 170 100 196 220 85 65 8*12 172 M8 M10
Tolerances ±1 ±1 ±1 ±0.15 ±1 ±0.5 ±0.5 ±0.15 ±0.15   ±0.15

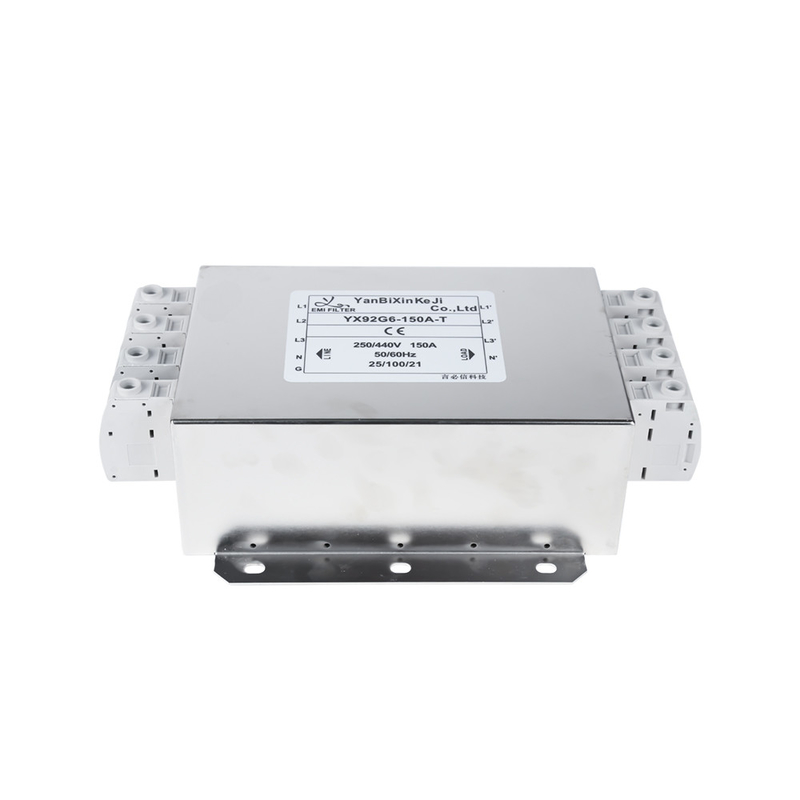

YX92G6-150A-T Three Phase Filter:



440V Three Phase Four Wire Filter 150A EMI Suppression Filter For Industrial Application 3



Insertion loss table(In 50ohm system according IEC/CISPR No.17)



 440V Three Phase Four Wire Filter 150A EMI Suppression Filter For Industrial Application 4
