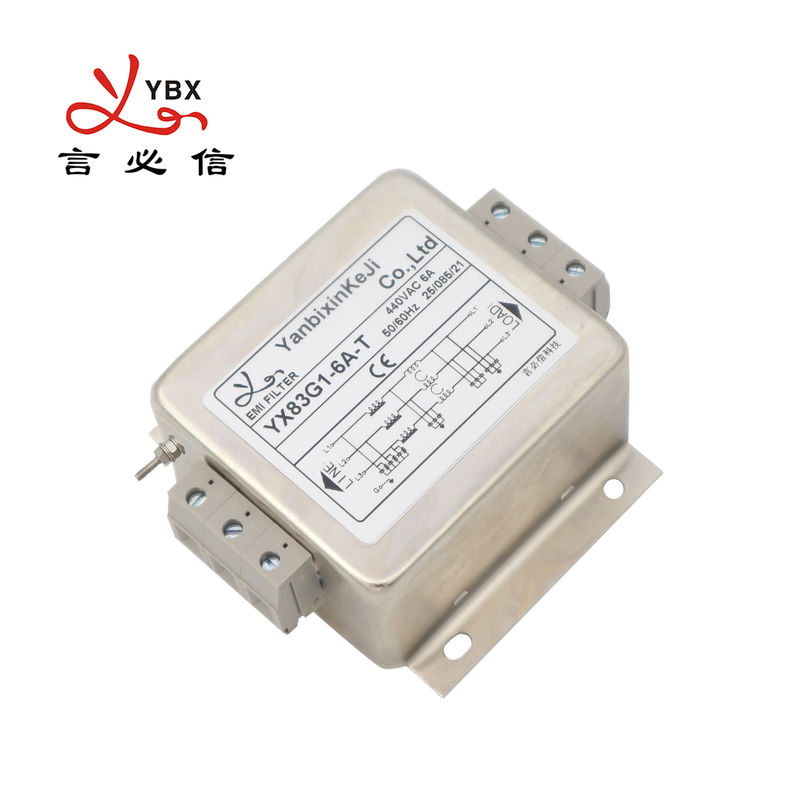

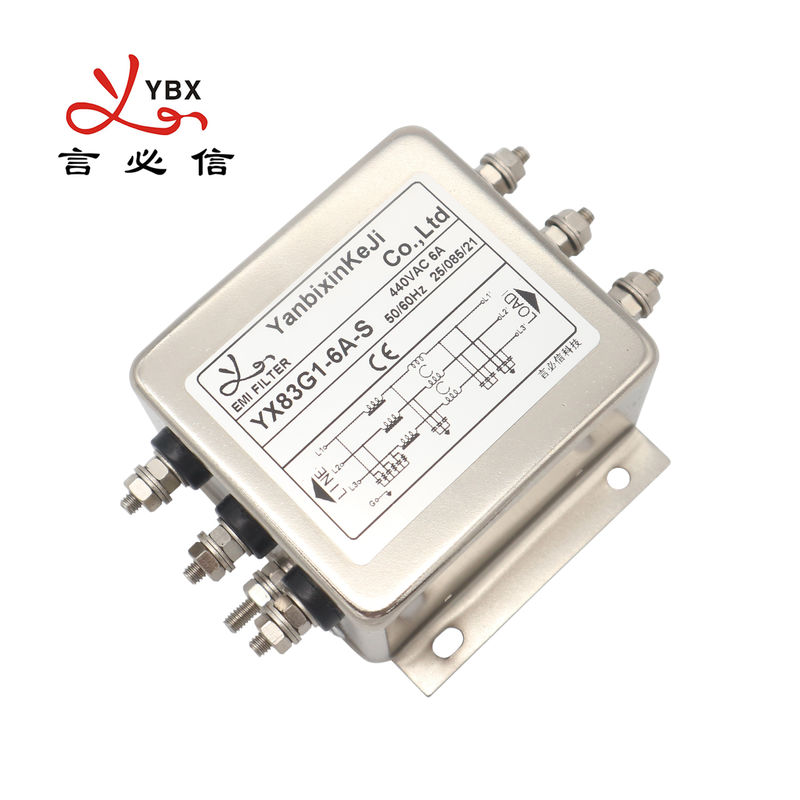

High Performance Three Phase Filter 6A 10A 380V EMI/RFI Filter For Inverter

High Performance Three Phase Filter 6A 10A 380V EMI/RFI Filter For Inverter

three phase emi filter

3 phase emc filter

Place of Origin:

China

Brand Name:

YBX

Certification:

cUL, ENEC, CE, ROHS, ISO

Model Number:

YX83G1-6A-S

Contact Us

Request A Quote
Product Details
Product Name:
Screw Output Three Phase Filter
Voltage:
380V/440V
Current:
6A-100A
Brand:
YBX
Frequency:
50/60HZ
Line To Line:
1450VDC
Line To Ground:
2250VDC
Terminal Output:
Screw Terminal
Payment & Shipping Terms
Minimum Order Quantity
5pcs
Price
Negotiable
Packaging Details
56.5*28.5*22.5CM
Delivery Time
15-25 days
Supply Ability
2000pcs per month
Product Description

Multiband AttenuationThree Phase Filter 6A 10A 380V 30MHz EMI/RFI Filter For Inverter



Technical Specification:



Item Three Phase Filter
Model YX83G1-6A-S
Transfer Function Low Pass
Package Type Surface Mount
Nominal Center Frequency 150K-30MHZ
Insertion Loss 60~90dB
Input Impedance 50Ω
Rated Voltage 380V/440V
Rated Current 6A-100A
Environmental Temperature 40°C
Temperature Range 25 / 085 / 21
Operating Frequency 50/60HZ
Line to Line 1450VDC
Line to Ground 2250VDC or 2000VAC
Maximum Leakage Current 250VAC/60HZ 1.4mA Max. 440VAC/60HZ 2.5mA Max
MOQ 5pcs
Price

USD4.8~88/Meter

Lead Time 3~15 weekday for Three Phase EMI Filter



Features:



--  Protection against interference of voltage



--  YX83 filters provide a broadband common and differential-mode attenuation performance, it still can be available when the interference is larger



--  Customized products according to customer's requirements.



Typical Applications:



--  For photovoltaic systems and industrial applications



--  Three-phase motor drives



--  UPS/SMPS



--  Industrial automation equipment



Filter Selection Table:



Part No. Case Rated Currents (A) Output Connections
YX83G1-10A G1 10 Fast-on terminal
YX83G1-20A G1 20
YX83G1-30A G1 30 M4/M6/M8 Screw
YX83G1-40A G1 40
YX83G1-50A G1 50 Terminal block



High Performance Three Phase Filter 6A 10A 380V EMI/RFI Filter For Inverter 0*Q: Fast-on 6.35x0.8mm High Performance Three Phase Filter 6A 10A 380V EMI/RFI Filter For Inverter 1S: Screw lug High Performance Three Phase Filter 6A 10A 380V EMI/RFI Filter For Inverter 2T: Terminal block



Tabulates:



Model No. Rated Current
@40°C


Terminal Options*

Leakage current 440V/50Hz Electrical Schematic

Rated Voltage(V) Operating Frequency(Hz)


YX83G1-1A 1A Q S T







<1.0mA

Fig.1





250/440V





50/60Hz

YX83G1-3A 3A Q S T Fig.1
YX83G1-6A 6A Q S T Fig.1
YX83G2-10A 10A Q S T Fig.1
YX83G2-15A 15A Q S T Fig.1
YX83G2-20A 20A - S T Fig.1
YX83G3-10A 10A - S T <2.0mA Fig.1
YX83G3-20A 20A - S T Fig.1
YX83G3-30A 30A - S T



<5.0mA

Fig.1
YX83G5-30A 30A - S T Fig.1
YX83G5-50A 50A - S T Fig.1
YX83G5-60A 60A - S T



<7.0mA

Fig.1
YX83G4-100A 100A - S T Fig.1
YX83G4-150A 150A - S T Fig.1
YX83G6-200A 200A - S T <10.0mA Fig.1



Electrical Schematic:

High Performance Three Phase Filter 6A 10A 380V EMI/RFI Filter For Inverter 3

Mechanical Dimension(Unit: mm)


High Performance Three Phase Filter 6A 10A 380V EMI/RFI Filter For Inverter 4



High Performance Three Phase Filter 6A 10A 380V EMI/RFI Filter For Inverter 5



Case A B C D E F G H I J K L
G1 72 65 39 75 85 35 22   45 M4 M4/M6
G2 98 80 40 95 105 50 20 4.5*6.5 50 M4 M4/M6
G3 120 100 50 115 130 50 28 4*6 60 M4 M4/M6
G4 200 127 80 150 170 62 49.5 6*9 117 M6/M8 M8/M10
G5 150 105 60 120 135 55 35 4*6 90 M6 M8
G6 260 170 100 196 220 85 65 8*12 172 M8 M10
Tolerances ±1 ±1 ±1 ±0.15 ±1 ±0.5 ±0.5 ±0.15 ±0.15   ±0.15



Insertion loss table(In 50ohm system according IEC/CISPR No.17)



High Performance Three Phase Filter 6A 10A 380V EMI/RFI Filter For Inverter 6



Working Environment:



High Performance Three Phase Filter 6A 10A 380V EMI/RFI Filter For Inverter 7

High Performance Three Phase Filter 6A 10A 380V EMI/RFI Filter For Inverter 8
