Three Phase Filter 150K-30MHz 380V 50A EMI/RFI Filter For Photovoltaic System

Three Phase Filter 150K-30MHz 380V 50A EMI/RFI Filter For Photovoltaic System

3 phase power line filter

3 phase emc filter

Place of Origin:

China

Brand Name:

YBX

Certification:

cUL, ENEC, CE, ROHS, ISO

Model Number:

YX81G5-50A-T

Contact Us

Request A Quote
Product Details
Product Name:
Terminal Block Three Phase Filter
Type:
EMI Filter
Voltage:
380V/440V
Current:
1A-200A
Frequency:
50/60HZ
Line To Line:
1450VDC
Line To Ground:
2250VDC Or 2000VAC
MOQ:
5pcs
Payment & Shipping Terms
Minimum Order Quantity
5pcs
Price
Negotiable
Packaging Details
56.5*28.5*22.5CM
Delivery Time
15-25 days
Supply Ability
2000pcs per month
Product Description

50A 380VAC 3 Phase Three Line RFI Servo Drive EMC Filter



Technical Specification:



Item 3 Phase EMI Filter
Model 3 Phase EMI Filter -YX81G series
Transfer Function Low Pass
Package Type Surface Mount
Nominal Center Frequency 150K-30MHZ
Insertion Loss 60~90dB
Input Impedance 50Ω
Rated Voltage 380V/440V
Rated Current 1A-100A
Environmental Temperature 40°C
Temperature Range 25 / 085 / 21
Operating Frequency 50/60HZ
Line to Line 1450VDC
Line to Ground 2250VDC or 2000VAC
Maximum Leakage Current 115VAC/60HZ 1.4mA Max. 250VAC/60HZ 2.5mA Max
MOQ 5pcs
Price

USD4.8~88/Meter

Lead Time 3~15 weekday for Low Pass EMI Filter



Features:



1. Protection against interference of voltage



2. YX83 filters provide a broadband common and differential-mode attenuation performance, it still can be available when the interference is larger



3. Customized products according to customer's requirements.



Typical Applications:



--  For photovoltaic systems and industrial applications



--  Three-phase motor drives



--  UPS/SMPS



--  Industrial automation equipment



Rule of Nomination:



YB------81--------G5---------30A-----------T

              ¦            ¦                ¦                 ¦

         circuit    case      current    connection



Tabulates:



Model No. Rated Current
@40°C


Terminal Options*

Leakage current 440V/50Hz Electrical Schematic

Rated Voltage(V) Operating Frequency(Hz)


YX83G1-1A 1A Q S T







<1.0mA

Fig.1















250/440V















50/60Hz

YX83G1-3A 3A Q S T Fig.1
YX83G1-6A 6A Q S T Fig.1
YX83G2-10A 10A Q S T Fig.1
YX83G2-15A 15A Q S T Fig.1
YX83G2-20A 20A - S T Fig.1
YX83G3-10A 10A - S T <2.0mA Fig.1
YX83G3-20A 20A - S T Fig.1
YX83G3-30A 30A - S T



<5.0mA

Fig.1
YX83G5-30A 30A - S T Fig.1
YX83G5-50A 50A - S T Fig.1
YX83G5-60A 60A - S T



<7.0mA

Fig.1
YX83G4-100A 100A - S T Fig.1
YX83G4-150A 150A - S T Fig.1
YX83G6-200A 200A - S T <10.0mA Fig.1

Three Phase Filter 150K-30MHz 380V 50A EMI/RFI Filter For Photovoltaic System 0*Q: Fast-on 6.35x0.8mm          Three Phase Filter 150K-30MHz 380V 50A EMI/RFI Filter For Photovoltaic System 1S: Screw lug           Three Phase Filter 150K-30MHz 380V 50A EMI/RFI Filter For Photovoltaic System 2T: Terminal block



Electrical Schematic:

Three Phase Filter 150K-30MHz 380V 50A EMI/RFI Filter For Photovoltaic System 3
                        Fig.1

Mechanical Dimension(Unit: mm)

Three Phase Filter 150K-30MHz 380V 50A EMI/RFI Filter For Photovoltaic System 4

Case A B C D E F G H I J K L
G1 72 65 39 75 85 35 22   45 M4 M4/M6
G2 98 80 40 95 105 50 20 4.5*6.5 50 M4 M4/M6
G3 120 100 50 115 130 50 28 4*6 60 M4 M4/M6
G4 200 127 80 150 170 62 49.5 6*9 117 M6/M8 M8/M10
G5 150 105 60 120 135 55 35 4*6 90 M6 M8
G6 260 170 100 196 220 85 65 8*12 172 M8 M10
Tolerances ±1 ±1 ±1 ±0.15 ±1 ±0.5 ±0.5 ±0.15 ±0.15   ±0.15



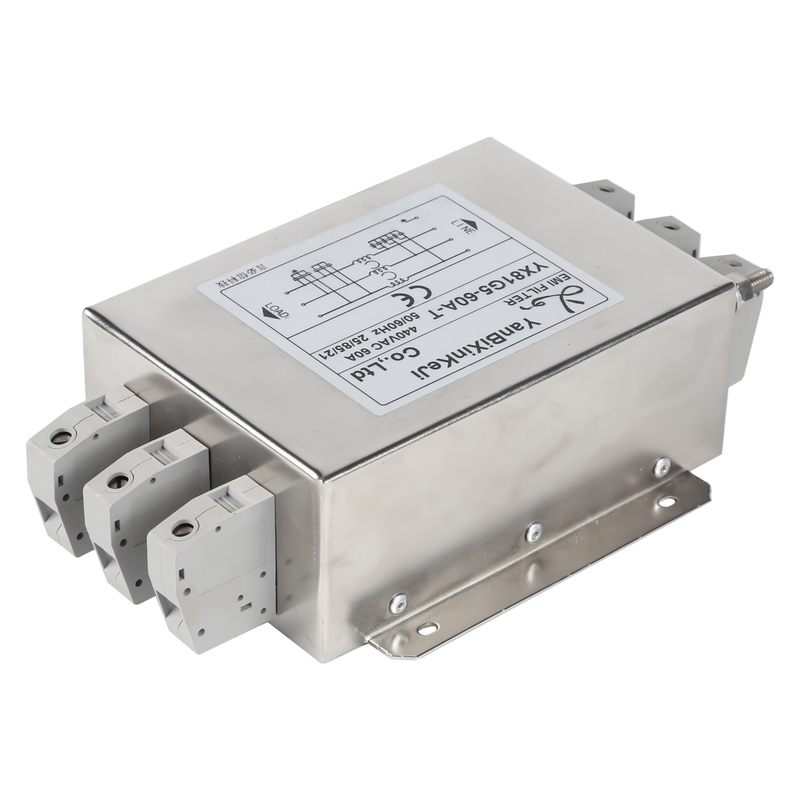

YX81G5-30A-T Product Picture:



Three Phase Filter 150K-30MHz 380V 50A EMI/RFI Filter For Photovoltaic System 5



Insertion loss table(In 50ohm system according IEC/CISPR No.17)



Three Phase Filter 150K-30MHz 380V 50A EMI/RFI Filter For Photovoltaic System 6
