Terminal Block Three Phase Filter Low Pass EMI/RFI Filter For Servo Motor
Terminal Block Three Phase Filter:
YX83G3-30A-T is the three phase filter.High reliability designed for industrial equipment usage with Three-phase Three-wire filter or Three-phase Four-wire filter. Various screw terminals output for different amps is designed for easy installation. Typical applications in testing and measuring equipment, automation equipment, servo drives, lighting, telecom equipment, frequency inverters, motor drives and so on.
Features Of Three Phase Filter:
1. Good noise attenuation in both forward and reverse directions for common mode and normal mode.
2. High reliability designed for industrial equipment usage with 3-Phase 3-Wire and 3-Phase 4-Wire.
3. The rated current can be offered from 10 to 20 amps.
4. Various screw terminals output for different amps is designed for easy installation.
5. Custom-specific versions are available on request.
Technical Specification:
Filter Selection Table:
| Part No. | Case | Rated Currents (A) | Output Connections |
| YX83G3-10A | G3 | 10 | Fast-on terminal |
| YX83G3-15A | G3 | 15 | |
| YX83G3-20A | G3 | 20 | Wire |
| YX83G3-30A | G3 | 30 | |
| YX83G3-40A | G3 | 40 | M4 Screw/M6 Screw |
| YX83G3-50A | G3 | 50 |
*Q: Fast-on 6.35x0.8mm S: Screw lug T: Terminal block
Naming Rule:
| YX | 83 | G3 | - | 30 | - | T |
| ∣ | ∣ | ∣ | ∣ | ∣ | ||
| Three Phase | Circuit | Dimension | Current | Output Connection | ||
| 83:83 circuit | G3 | 10A :10 amp | Q:fast-on tab 250 | |||
| 20A :20 amp | S:M4 screw | |||||
| 30A :30 amp | T:Terminal block |

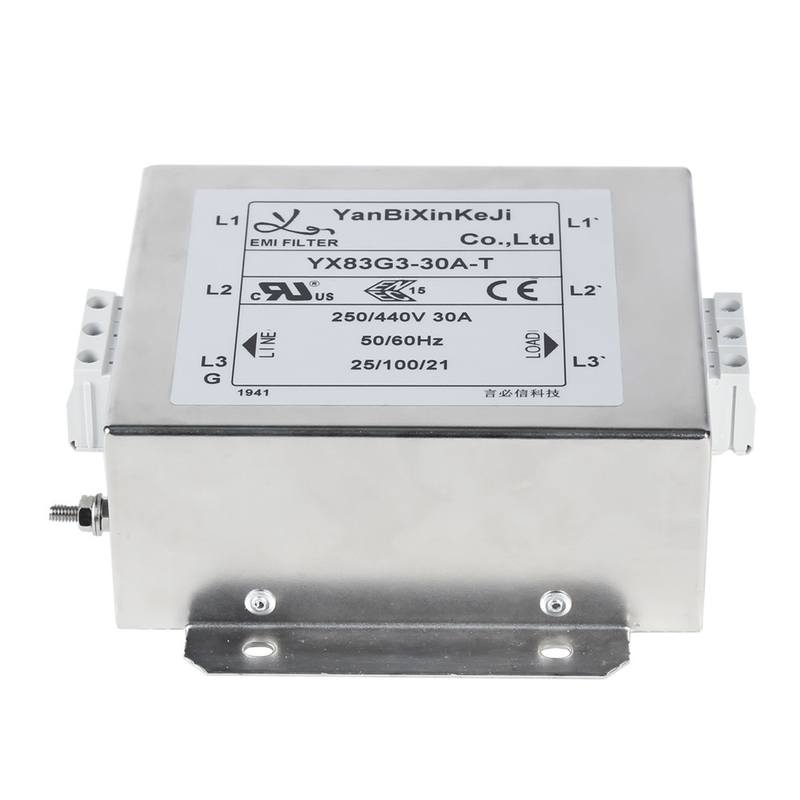

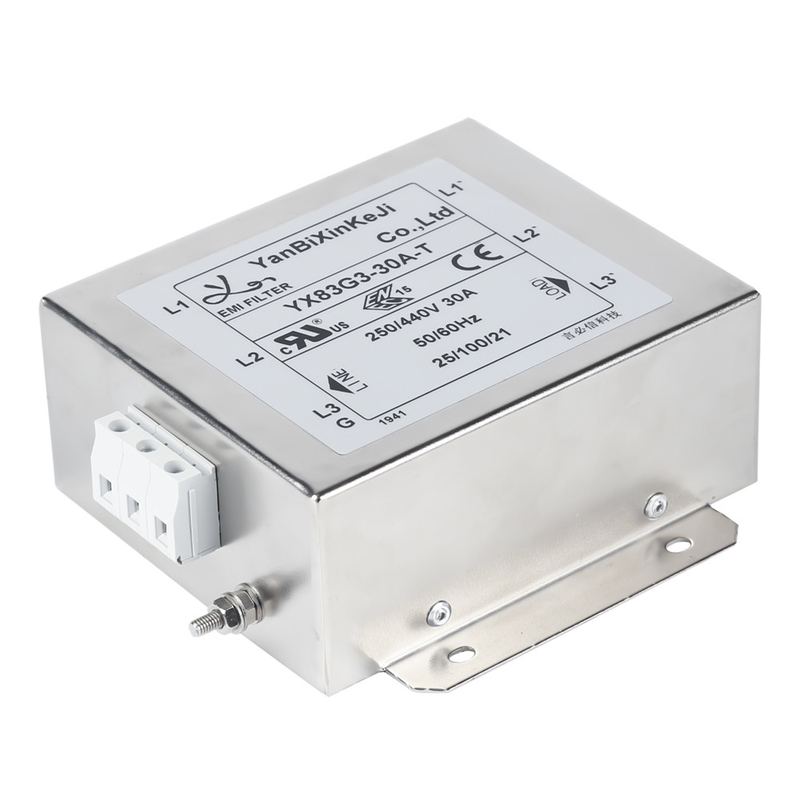

YX83G3-30A-T Filter Picture:
| Case | A | B | C | D | E | F | G | H | I | J | K | L | M | ||||||||||||||||||||||||||||||
| G1 | 72 | 65 | 39 | 75 | 85 | 35 | 22 | 45 | M4 | M4/M6 | |||||||||||||||||||||||||||||||||
| G2 | 98 | 80 | 40 | 95 | 105 | 50 | 20 | 4.5*6.5 | 50 | M4 | M4/M6 | ||||||||||||||||||||||||||||||||
| G3 | 120 | 100 | 50 | 115 | 130 | 50 | 28 | 4*6 | 60 | M4 | M4/M6 | ||||||||||||||||||||||||||||||||
| G4 | 200 | 127 | 80 | 150 | 170 | 62 | 49.5 | 6*9 | 117 | M6/M8 | M8/M10 | ||||||||||||||||||||||||||||||||
| G5 | 150 | 105 | 60 | 120 | 135 | 55 | 35 | 4*6 | 90 | M6 | M8 | ||||||||||||||||||||||||||||||||
| G6 | 260 | 170 | 100 | 196 | 220 | 85 | 65 | 8*12 | 172 | M8 | M10 | ||||||||||||||||||||||||||||||||
| Tolerances | ±1 | ±1 | ±1 | ±0.15 | ±1 | ±0.5 | ±0.5 | ±0.15 | ±0.15 | ±0.15 | ±0.15 | ±2 | |||||||||||||||||||||||||||||||
