YX91G5 50A Terminal Block Output EMI Filter Three Phase Four Wire Filter For UPS
Technical Specification:
| Item | Three Phase Four Wire Filter |
| Model | YX91G5-50A-T |
| Transfer Function | High Pass |
| Package Type | Surface Mount |
| Nominal Center Frequency | 150K-30MHZ |
| Insertion Loss | 60~90dB |
| Input Impedance | 50Ω |
| Rated Voltage | 380V/440V |
| Rated Current | 3A-200A |
| Environmental Temperature | 40°C |
| Temperature Range | 25 / 085 / 21 |
| Operating Frequency | 50/60HZ |
| Line to Line | 1450VDC |
| Line to Ground | 2250VDC or 2000VAC |
| Maximum Leakage Current | 115VAC/60HZ 1.4mA Max. 250VAC/60HZ 2.5mA Max |
| MOQ | 5pcs |
| Price |
USD3.8~98/Meter |
| Lead Time | 3~15 weekday for Low Pass EMI Filter |
Features:
1. It is widely used in household appliances, electric force, telecommunications, machine tool, vessel, textile, printing, Mining machine, Mustic Instrument, etc
2. Advanced two-stage filtering circuits with highly saturating resistant toroidal inductors
3. Customized products according to customer's requirements
4. This power line filters are designed for high performance shielded rooms, insertion loss is more than 100dB from 14KHz to 40GHz.We can offer different type specification power filters, with DC and AC
Typical Applications:
-- Mainframe computer systems
-- High power office equipment
-- Power supplies
-- Office and data processing equipment
Filter Selection Table:
| Part No. | Case | Rated Currents (A) | Output Connections |
| YX91G5-10A | G5 | 10 | M4/M6/M8 screw |
| YX91G5-20A | G5 | 20 | |
| YX91G5-30A | G5 | 30 | Terminal block |
| YX91G5-40A | G5 | 40 | |
| YX91G5-50A | G5 | 50 | Copper bar |
B: Copper bar S: Screw lug T: Terminal block
Tabulates:
| Model No. | Rated Current @40°C |
Terminal Options* | Leakage current 440V/50Hz | Electrical Schematic |
Rated Voltage(V) | Operating Frequency(Hz) | ||||||||||||||||||||||||||||||
| YX94G2-3A | 3A | Q | S | T |
<5.0mA |
Fig.1 |
250/440V |
50/60Hz |
||||||||||||||||||||||||||||
| YX94G3-6A | 6A | Q | S | T | Fig.1 | |||||||||||||||||||||||||||||||
| YX94G3-10A | 10A | Q | S | T | Fig.1 | |||||||||||||||||||||||||||||||
| YX94G3-15A | 15A | Q | S | T | Fig.1 | |||||||||||||||||||||||||||||||
| YX94G5-20A | 20A | - | S | T | Fig.1 | |||||||||||||||||||||||||||||||
| YX94G5-25A | 25A | - | S | T | Fig.1 | |||||||||||||||||||||||||||||||
| YX94G5-30A | 30A | - | S | T | Fig.1 | |||||||||||||||||||||||||||||||
| YX94G4-40A | 40A | - | S | T |
<10.0mA |
Fig.1 | ||||||||||||||||||||||||||||||
| YX94G4-50A | 50A | - | S | T | Fig.1 | |||||||||||||||||||||||||||||||
| YX94G4-60A | 60A | - | S | T | Fig.1 | |||||||||||||||||||||||||||||||
| YX94G4-70A | 70A | - | S | T | Fig.1 | |||||||||||||||||||||||||||||||
| YX94G4-80A | 80A | - | S | T | Fig.1 | |||||||||||||||||||||||||||||||
| YX94G4-100A | 100A | - | S | T | <20.0mA | Fig.1 | ||||||||||||||||||||||||||||||
| YX94G6-130A | 130A | - | S | T | Fig.1 | |||||||||||||||||||||||||||||||
*Q: Fast-on 6.35x0.8mm S: Screw lug T: Terminal block
| Case | A | B | C | D | E | F | G | H | I | J | K | L | M | ||||||||||||||||||||||||||||||
| G1 | 72 | 65 | 39 | 75 | 85 | 35 | 22 | 45 | M4 | M4/M6 | |||||||||||||||||||||||||||||||||
| G2 | 98 | 80 | 40 | 95 | 105 | 50 | 20 | 4.5*6.5 | 50 | M4 | M4/M6 | ||||||||||||||||||||||||||||||||
| G3 | 120 | 100 | 50 | 115 | 130 | 50 | 28 | 4*6 | 60 | M4 | M4/M6 | ||||||||||||||||||||||||||||||||
| G4 | 200 | 127 | 80 | 150 | 170 | 62 | 49.5 | 6*9 | 117 | M6/M8 | M8/M10 | ||||||||||||||||||||||||||||||||
| G5 | 150 | 105 | 60 | 120 | 135 | 55 | 35 | 4*6 | 90 | M6 | M8 | ||||||||||||||||||||||||||||||||
| G6 | 260 | 170 | 100 | 196 | 220 | 85 | 65 | 8*12 | 172 | M8 | M10 | ||||||||||||||||||||||||||||||||
| Tolerances | ±1 | ±1 | ±1 | ±0.15 | ±1 | ±0.5 | ±0.5 | ±0.15 | ±0.15 | ±0.15 | ±0.15 | ±2 | |||||||||||||||||||||||||||||||

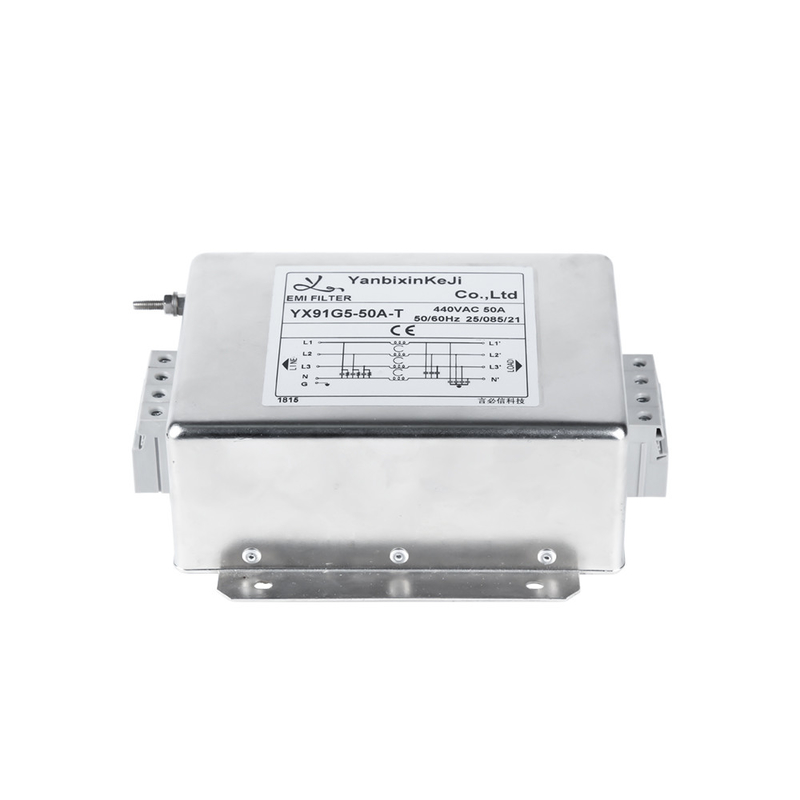

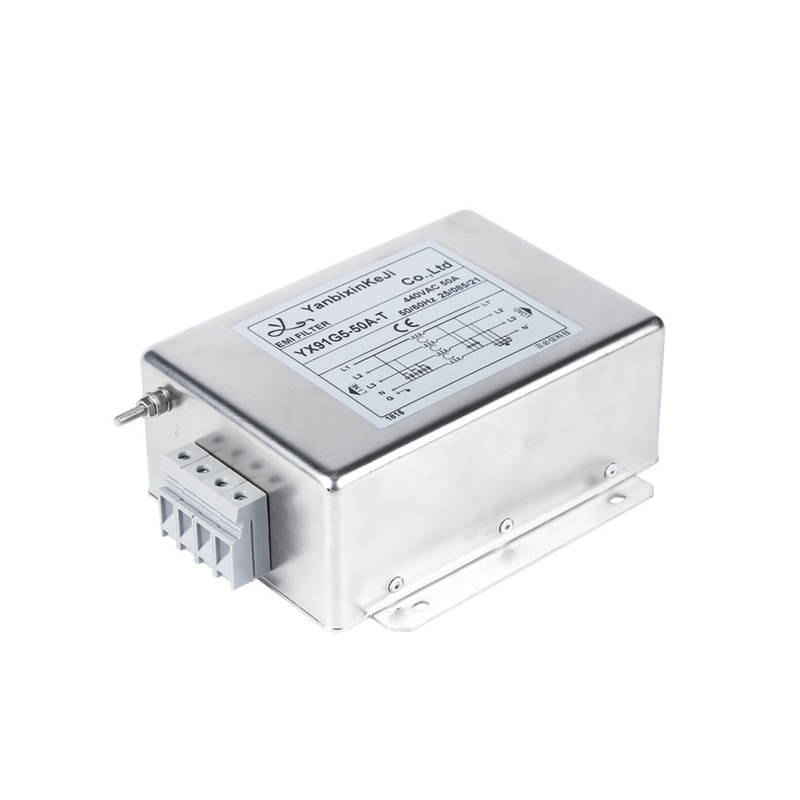

YX91G5-50A-T Three Phase Filter Picture:
Insertion loss table(In 50ohm system according IEC/CISPR No.17)
