Place of Origin:
China
Brand Name:
YBX
Certification:
cUL, TUV, CQC, CE, ROHS
Model Number:
YB12E4-20A-S
Contact Us
Video
Video
YB12E4-20A-S Power Line Filter M4 Screw Terminal 20A Single Phase EMI Filter For Measuring Equipment
20A One-stage Power Line Filter:
YB12E4-20A-S is the Single Phase Filter with excellent high frequency attenuation performance.The output can be Fast-on Terminal, Wire, M4 Screw, Or Terminal Block.The frequency range between 150 KHz and 30 MHz. Compliance with the limit values required under residential and industrial standards.
| Item | Power line Filter |
| Model | Power line Filter YB-E4 |
| Transfer Function | Low Pass |
| Package Type | Surface Mount |
| Nominal Center Frequency | 150K-30MHZ |
| Insertion Loss | 60~90dB |
| Input Impedance | 50Ω |
| Rated Voltage | 115V/250V |
| Rated Current | 1~20A |
| Environmental Temperature | 40°C |
| Temperature Range | 25 / 085 / 21 |
| Operating Frequency | 50/60HZ |
| Line to Line | 1450VDC |
| Line to Ground | 2250VDC |
| Maximum Leakage Current | 250VAC/60HZ 0.8mA Max |
| MOQ | 100pcs |
Filter Selection Table:
| Part No. | Case | Rated Currents (A) | Output Connections |
| YB12E4-6A | E4 | 6 | Wire |
| YB12E4-8A | E4 | 8 | |
| YB12E4-10A | E4 | 10 | M4 Screw |
| YB12E4-15A | E4 | 15 | |
| YB12E4-20A | E4 | 20 | Fast-on terminal |
*Q: Fast-on 6.35x0.8mm S: Screw lug W: UL1015 18awg

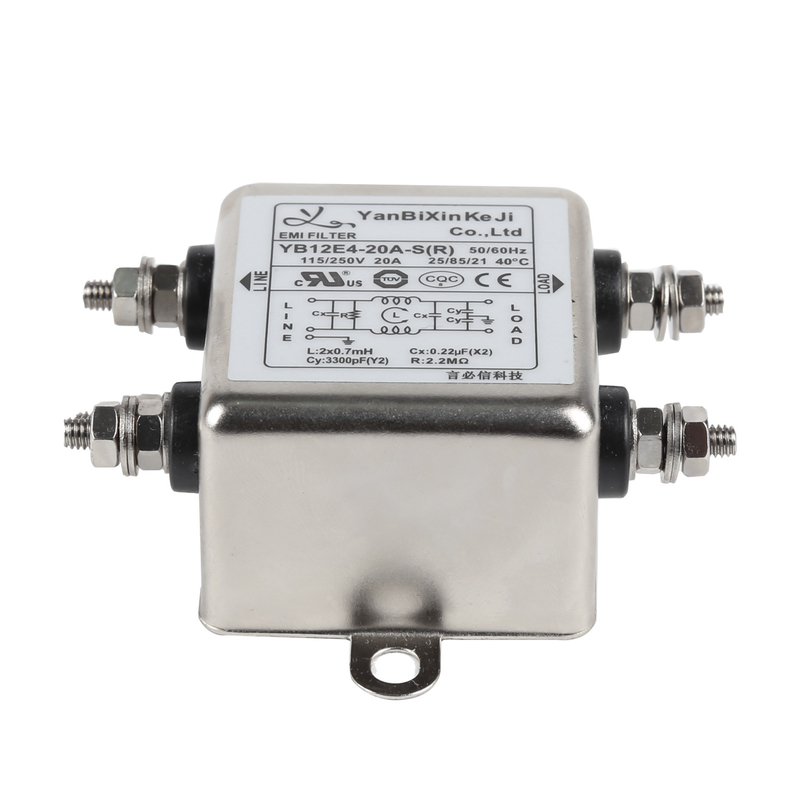

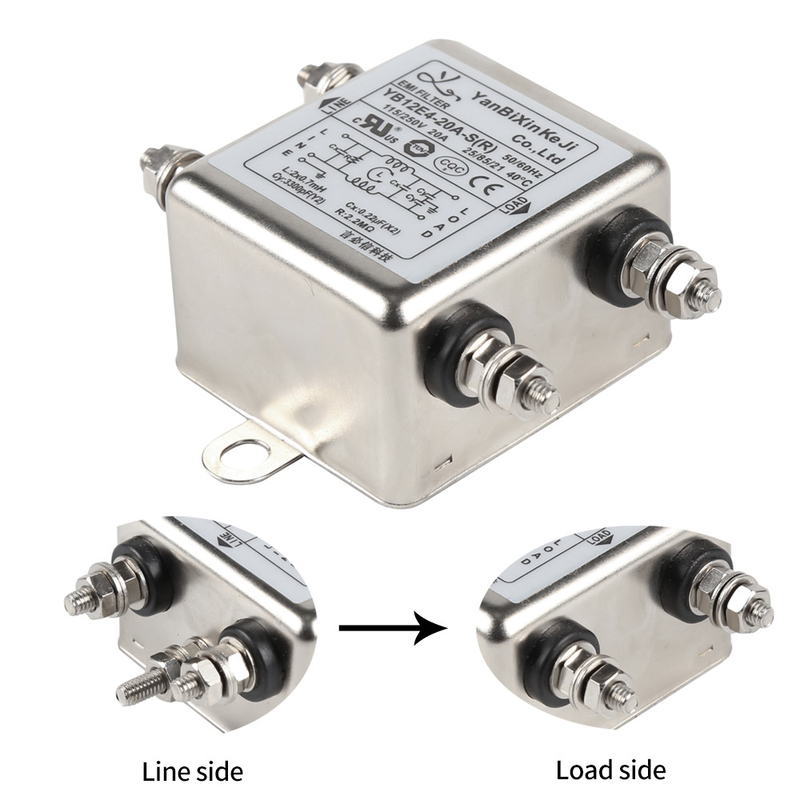

YB12E4-20A-S(R) Product Picture:
Electrical Schematic:
Mechanical Dimension(Unit: mm)
| Case | E3 | E4 | D1 | D2 | D3 | D4 | D5 | F1 | F2 | F3 | F4 | Tolerances | ||||||||||||||||||
| A | 32 | 44.5 | 51 | 51 | 63 | 63 | 73 | 72 | 98 | 120 | 150 | ±1 | ||||||||||||||||||
| B | 46 | 50.5 | 33 | 51 | 51 | 51 | 56 | 65 | 80 | 100 | 105 | ±1 | ||||||||||||||||||
| C | 22.5 | 30 | 29 | 21 | 29 | 38 | 44.5 | 39 | 41 | 50 | 60 | ±1 | ||||||||||||||||||
| D | 54 | 61.5 | 60 | 63 | 75 | 75 | 87 | 75 | 95 | 115 | 120 | ±0.15 | ||||||||||||||||||
| E | 62 | 70.5 | 68 | 72 | 85 | 85 | 98 | 45 | 50 | 80 | 90 | ±1 | ||||||||||||||||||
| F | 24 | 28 | 20 | 27 | 25 | 27 | 30 | 35 | 50 | 60 | 60 | ±0.5 | ||||||||||||||||||
| G | 12.5 | 10.5 | 10 | 10 | 10 | 15.5 | 16 | 22 | 24 | 26 | 35 | ±0.5 | ||||||||||||||||||
| H | 4.5 | 6 | 4.5 | 4.5 | 5 | 4.5 | 4.5 | 4.2 | 4.2 | 4*6 | 4*6 | ±0.15 | ||||||||||||||||||
| I | 4.5 | 4.2*6.2 | 4.2*6.2 | 4*6 | 4*6 | ±0.15 | ||||||||||||||||||||||||
| J | M4/M6 | M4/M6 | M4/M6 | M4/M6 | ||||||||||||||||||||||||||
| K | 6.3*0.8 | 6.3*0.8 | UL 1015 | 6.3*0.8 | 6.3*0.8 | 6.3*0.8 | 6.3*0.8 | M4 | M4 | M4 | M4 | ±0.15 | ||||||||||||||||||
| L | 35 | 50 | 60 | 60 | ±2 | |||||||||||||||||||||||||
