Single Phase EMI Filter Dual stage EMC Filter 10A Low Pass Power Line Filter

Single Phase EMI Filter Dual stage EMC Filter 10A Low Pass Power Line Filter

emc line filter

led emi filter

Place of Origin:

China

Brand Name:

YBX

Certification:

cUL, TUV, CQC, CE, ROHS

Model Number:

YB22D2-10A-W

Contact Us

Request A Quote
Product Details
Product:
Power Line Filter
Current:
1A-10A
Voltage:
115V/250VAC
Frequency:
50/60HZ
Packaging:
Carton
MOQ:
50pcs
Payment & Shipping Terms
Minimum Order Quantity
50pcs
Price
Negotiable
Packaging Details
56.5*28.5*22.5cm
Delivery Time
20-25 days
Payment Terms
T/T, L/C
Supply Ability
10000 Piece/Pieces per Month Ac 220V General Purpose Noise Filter
Product Description

Single Phase EMI Dual stage EMC Filter 10A Low Pass Power Line Filter



Dual Stage EMI Filter:



Wire connection YB22D2 is the single phase dual stage filter for general purpose.The current rated can be offered up to 20 amps and the rated voltage is 115/250vac. The operating frequency is 50/60Hz and the operating temparature is -25~+85°C. Low leakage current version upon requested. The YB22D2 meets the safety approval regulations, such as UL, CSA and CE marking. Typical applications include Electrical and electronic equipment, Household equipment, Automation equipment, Fitness machine, and Medical equipment.



Feature Of YB22D2 EMI Filter:



1. The rated current can be offered up to 20 amps.

2. Various output selections such as fast-on terminal.

3. Low leakage current version upon requested.

4. It meets the relevant safety approval regulations, such as UL, CSA and the CE marking.

5. Custom-specific versions are available on request.



Technical Specification:


--Rated Voltage: 115/250 VAC
--Rated Currents: 1 to 10A
--Operating Frequency: 50/60Hz

--Frequency Band: 10KHz-30MHz
--Hipot Rating (Line-to-Line): 1450VDC
--Hipot Rating (Line-to-Ground): 2250VDC
--Operating Temperature: -25 ~ +85°C
--Safety Compliance: UL, CSA, CE



Filter Selection Table:

Part No. Rated Currents (A) Output Connections
YB12D2 6 Fast-on terminal
YB21D2 10 Screw
YB22D2 15 Wire
YB24D2 20 Terminal block



Naming Rule:

YB 22 D2 —— 10A —— W
| | |   |   |
Our brand Circuit Dimension   Current   Output connections
  22:22 circuit D2   6A :6 amp   Q:fast-on tab 250
        10A:10amp   S:screw
        15A:15 amp   W:wire
        20A:20 amp   T:terminal block

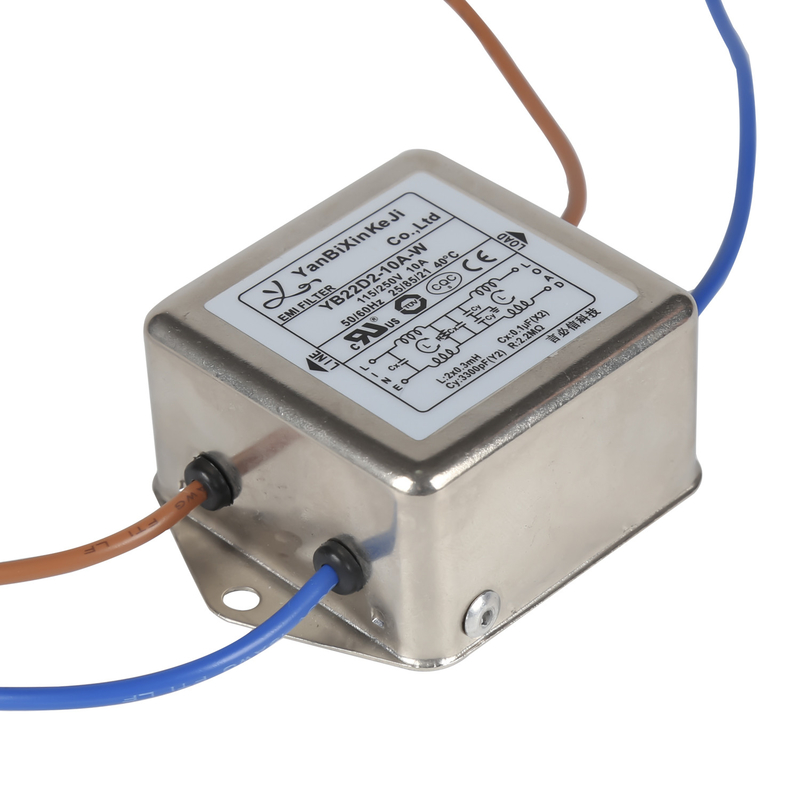

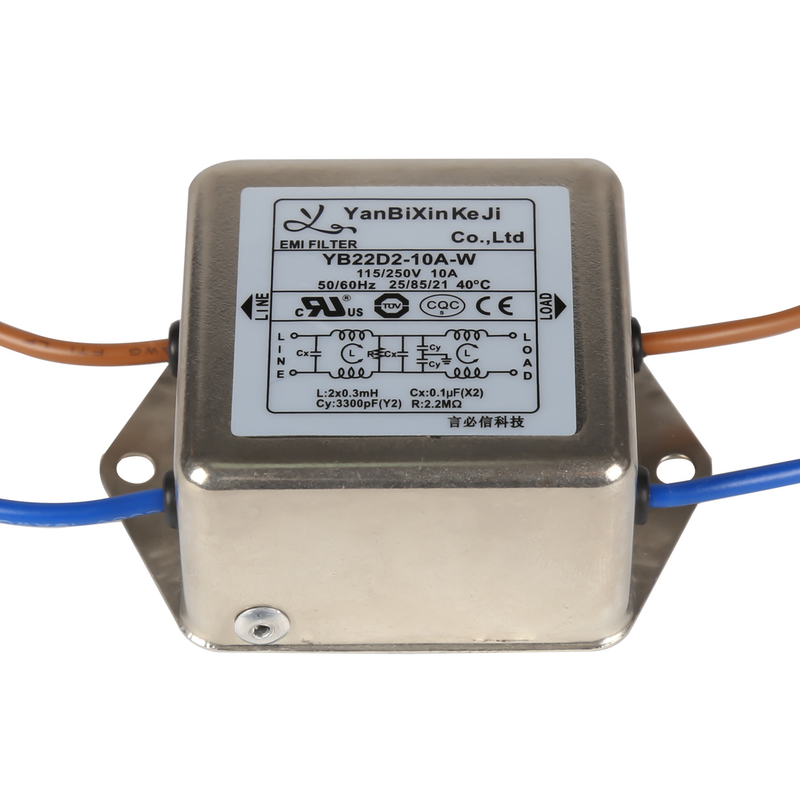

YB22D2-10A-W EMI Filter:

Single Phase EMI Filter Dual stage EMC Filter 10A Low Pass Power Line Filter 0



Medical Type Tabulates:

Model No. Rated Current
@40°C


Terminal Options

Medical equipment

Leakage current 250V/50Hz Electrical Schematic Rated Voltage(V) Operating Frequency(Hz)


YB22E4-1A-x(5) 1A~4A Q S W 5































<5μA

Fig.2































115/250V































50/60Hz

YB22E4-6A-x(5) 6A Q S W 5 Fig.2
YB22E4-8A-x(5) 8A Q S W 5 Fig.2
YB22E4-10A-x(5) 10A Q S W 5 Fig.2
YB22E4-15A-x(5) 15A Q S W 5 Fig.2
YB22D1-1A-x(5) 1A~4A Q - W 5 Fig.2
YB22D1-6A-x(5) 6A Q - W 5 Fig.2
YB22D2-6A-x(5) 6A Q S W 5 Fig.2
YB22D2-8A-x(5) 8A Q S W 5 Fig.2
YB22D2-10A-x(5) 10A Q S W 5 Fig.2
YB22D2-15A-x(5) 15A Q S - 5 Fig.2
YB22D3-8A-x(5) 8A Q S W 5 Fig.2
YB22D3-10A-x(5) 10A Q S W 5 Fig.2
YB22D3-15A-x(5) 15A Q S - 5 Fig.2
YB22D4-10A-x(5) 10A Q S W 5 Fig.2
YB22D4-15A-x(5) 15A Q S - 5 Fig.2
YB22D4-20A-x(5) 20A Q S - 5 Fig.2
YB22D5-15A-x(5) 15A Q S - 5 Fig.2
YB22D5-20A-x(5) 20A Q S - 5 Fig.2
YB22D5-30A-x(5) 30A - S - 5 Fig.2
YB22D6-20A-x(5) 20A Q S - 5 Fig.2
YB22F1-20A-x(5) 20A Q S - 5 Fig.2
YB22F1-30A-x(5) 30A - S - 5 Fig.2
YB22F2-30A-x(5) 30A - S - 5 Fig.2
YB22F2-40A-x(5) 40A - S - 5 Fig.2
YB22F2-50A-x(5) 50A - S - 5 Fig.2
YB22F3-50A-x(5) 50A - S - 5 Fig.2

Single Phase EMI Filter Dual stage EMC Filter 10A Low Pass Power Line Filter 1*Q: Fast-on 6.35x0.8mm        Single Phase EMI Filter Dual stage EMC Filter 10A Low Pass Power Line Filter 2S: Screw lug          Single Phase EMI Filter Dual stage EMC Filter 10A Low Pass Power Line Filter 3W: UL1015 18awg



Electrical schematic:

Single Phase EMI Filter Dual stage EMC Filter 10A Low Pass Power Line Filter 4

                          Fig. 2



Mechanical Dimension(Unit: mm)



Single Phase EMI Filter Dual stage EMC Filter 10A Low Pass Power Line Filter 5




Case E3 E4 D1 D2 D3 D4 D5 F1 F2 F3 F4 Tolerances
A 32 44.5 51 51 63 63 73 72 98 120 150 ±1
B 46 50.5 33 51 51 51 56 65 80 100 105 ±1
C 22.5 30 29 21 29 38 44.5 39 41 50 60 ±1
D 54 61.5 60 63 75 75 87 75 95 115 120 ±0.15
E 62 70.5 68 72 85 85 98 45 50 80 90 ±1
F 24 28 20 27 25 27 30 35 50 60 60 ±0.5
G 12.5 10.5 10 10 10 15.5 16 22 24 26 35 ±0.5
H 4.5 6 4.5 4.5 5 4.5 4.5 4.2 4.2 4*6 4*6 ±0.15
I   4.5           4.2*6.2 4.2*6.2 4*6 4*6 ±0.15
J               M4/M6 M4/M6 M4/M6 M4/M6
K 6.3*0.8 6.3*0.8 UL 1015 6.3*0.8 6.3*0.8 6.3*0.8 6.3*0.8 M4 M4 M4 M4 ±0.15
L               35 50 60 60 ±2



Insertion loss table(In 50ohm system according IEC/CISPR No.17)

           Common mode                            -------- differential mode



                              1A                                                                                 3A

    Single Phase EMI Filter Dual stage EMC Filter 10A Low Pass Power Line Filter 6                       Single Phase EMI Filter Dual stage EMC Filter 10A Low Pass Power Line Filter 7



                               6A                                                                                8A

    Single Phase EMI Filter Dual stage EMC Filter 10A Low Pass Power Line Filter 8                       Single Phase EMI Filter Dual stage EMC Filter 10A Low Pass Power Line Filter 9



                            10A                                                                                   20A

   Single Phase EMI Filter Dual stage EMC Filter 10A Low Pass Power Line Filter 10                          Single Phase EMI Filter Dual stage EMC Filter 10A Low Pass Power Line Filter 11
