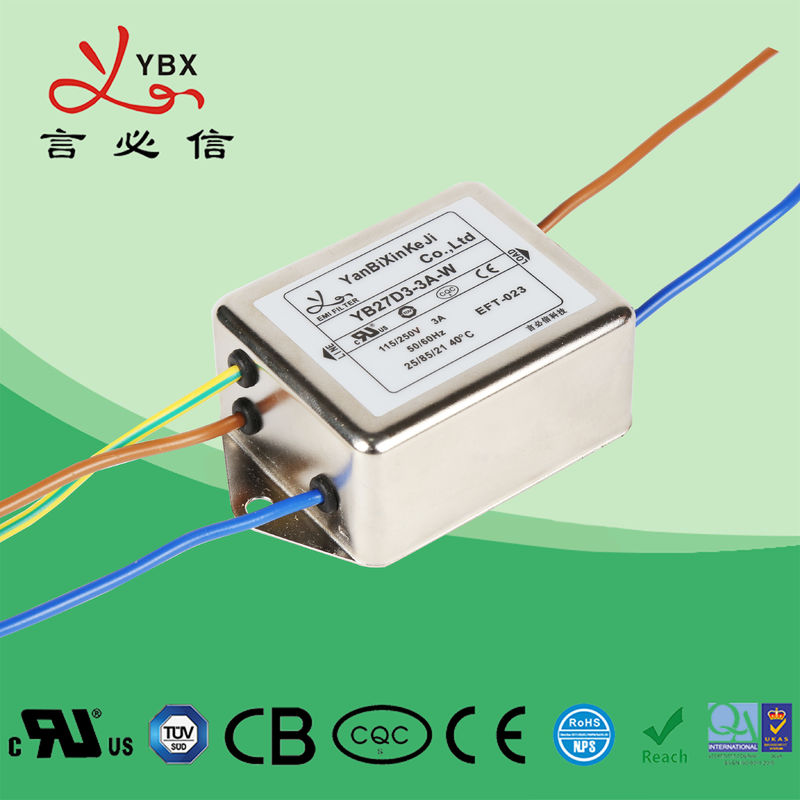

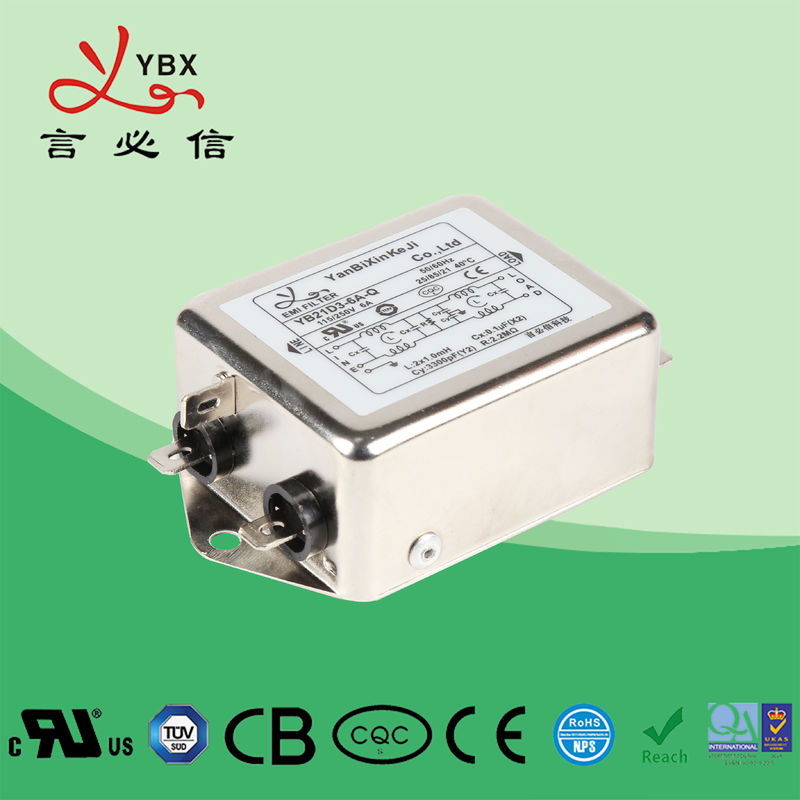

EMI EMC Electrical Power Line Filters 10A 120 250VAC For LED Light

emc line filter

led emi filter

Place of Origin:

China

Brand Name:

YBX

Certification:

cUL, TUV, CQC, CE, ROHS

Model Number:

YB22D3-10A-S

Request A Quote

EMI EMC Electrical Power Line Filters 10A 120 250VAC For LED Light

Product Details

Item:

YB22D3-10A-S

Current:

1A-20A

Voltage:

125V

Frequency:

50/60HZ

Packaging:

Box

MOQ:

50pcs

Type:

Noise Filter

Case:

Metal

Payment & Shipping Terms

Minimum Order Quantity

50pcs

Price

Negotiable

Packaging Details

56.5*28.5*22.5cm

Delivery Time

20-25 days

Payment Terms

T/T, L/C

Supply Ability

10000 Piece/Pieces per Month Ac 220V General Purpose Noise Filter

YBX New Type Single-Phase Filter Safe Plastic Housing EMI/EMC Filter With Terminal Block Cover

Get Best Price

Video

Single Phase Plastic Case Filter 10A Compact EMC Filter 115V/250V Power Supply Line Filter

Get Best Price

Video

YB12D4 Universal Single Phase Filter 1A~10A EMI Power Filter 220V EMC Noise For UPS

Get Best Price

YB22D6 20amp 220V Single Phase Filter Fast On Terminal EMI Filter For Laser Equipment

Get Best Price

+86 ‭18118799639‬

alisa@ybx-emc.com

86-755-27147101

Contact Now

Product Description

10A 120, 250VAC EMI EMC Filter Noise Electric Power Line Filter For LED Light

Technical Specification:

Item	Power line Filter
Model	Power line Filter YB-D
Transfer Function	Low Pass
Package Type	Surface Mount
Nominal Center Frequency	10K-30MHZ
Insertion Loss	60~90dB
Input Impedance	50Ω
Rated Voltage	115V/250V
Rated Current	1~10A
Environmental Temperature	40°C
Temperature Range	25 / 085 / 21
Operating Frequency	50/60HZ
Line to Line	1450VDC
Line to Ground	2250VDC
Maximum Leakage Current	250VAC/60HZ 0.8mA Max
MOQ	50pcs
Price	USD2~9.8/Meter
Lead Time	5~20 weekday

Features:

-- YB22 have designed two-stage filtering, with good differential and common-mode attenuation

-- Various terminal options allow you to select

-- There are a variety of parts and combinations to meet different customer's EMC tests

-- Excellent differential and common-mode attenuation

Typical Applications:

1. Electrical and electronic equipment

2. Medical equipment

3. Datacom equipment

4. Office automation equipment

Rule of Nomination:

YB 22 E4 - 10A - Q ( R 5 )

¦ ¦ ¦ ¦ ¦ ¦

circuit case current connection optional

Tabulates:

Model No.

Rated Current
@40°C

Terminal Options*

Leakage current 250V/50Hz

Electrical Schematic

Rated Voltage(V)

Operating Frequency(Hz)

YB22E4-1A

1A~4A

<0.8mA

Fig.1

115/250V

50/60Hz

YB22E4-6A

Fig.1

YB22E4-8A

Fig.1

YB22E4-10A

10A

Fig.1

YB22E4-15A

15A

Fig.1

YB22D1-1A

1A~4A

Fig.1

YB22D1-6A

Fig.1

YB22D2-6A

Fig.1

YB22D2-8A

Fig.1

YB22D2-10A

10A

Fig.1

YB22D2-15A

15A

Fig.1

YB22D3-8A

Fig.1

YB22D3-10A

10A

Fig.1

YB22D3-15A

15A

Fig.1

YB22D4-10A

10A

Fig.1

YB22D4-15A

15A

Fig.1

YB22D4-20A

20A

Fig.1

YB22D5-15A

15A

Fig.1

YB22D5-20A

20A

Fig.1

YB22D5-30A

30A

Fig.1

YB22D6-20A

20A

Fig.1

YB22D6-30A

30A

Fig.1

YB22F1-20A

20A

Fig.1

YB22F1-30A

30A

Fig.1

YB22F2-30A

30A

Fig.1

YB22F2-40A

40A

Fig.1

YB22F2-50A

50A

Fig.1

YB22F3-50A

50A

Fig.1

Medical Type Tabulates:

Model No.

Rated Current
@40°C

Terminal Options

Medical equipment

Leakage current 250V/50Hz

Electrical Schematic

Rated Voltage(V)

Operating Frequency(Hz)

YB22E4-1A-x(5)

1A~4A

<5μA

Fig.2

115/250V

50/60Hz

YB22E4-6A-x(5)

Fig.2

YB22E4-8A-x(5)

Fig.2

YB22E4-10A-x(5)

10A

Fig.2

YB22E4-15A-x(5)

15A

Fig.2

YB22D1-1A-x(5)

1A~4A

Fig.2

YB22D1-6A-x(5)

Fig.2

YB22D2-6A-x(5)

Fig.2

YB22D2-8A-x(5)

Fig.2

YB22D2-10A-x(5)

10A

Fig.2

YB22D2-15A-x(5)

15A

Fig.2

YB22D3-8A-x(5)

Fig.2

YB22D3-10A-x(5)

10A

Fig.2

YB22D3-15A-x(5)

15A

Fig.2

YB22D4-10A-x(5)

10A

Fig.2

YB22D4-15A-x(5)

15A

Fig.2

YB22D4-20A-x(5)

20A

Fig.2

YB22D5-15A-x(5)

15A

Fig.2

YB22D5-20A-x(5)

20A

Fig.2

YB22D5-30A-x(5)

30A

Fig.2

YB22D6-20A-x(5)

20A

Fig.2

YB22F1-20A-x(5)

20A

Fig.2

YB22F1-30A-x(5)

30A

Fig.2

YB22F2-30A-x(5)

30A

Fig.2

YB22F2-40A-x(5)

40A

Fig.2

YB22F2-50A-x(5)

50A

Fig.2

YB22F3-50A-x(5)

50A

Fig.2

EMI EMC Electrical Power Line Filters 10A 120 250VAC For LED Light 0 *Q: Fast-on 6.35x0.8mm S: Screw lug W: UL1015 18awg

Electrical schematic:

EMI EMC Electrical Power Line Filters 10A 120 250VAC For LED Light 3

Fig.1

EMI EMC Electrical Power Line Filters 10A 120 250VAC For LED Light 4

Fig. 2

Mechanical Dimension(Unit: mm)

EMI EMC Electrical Power Line Filters 10A 120 250VAC For LED Light 5

Case	E3	E4	D1	D2	D3	D4	D5	F1	F2	F3	F4	Tolerances

A	32	44.5	51	51	63	63	73	72	98	120	150	±1

B	46	50.5	33	51	51	51	56	65	80	100	105	±1

C	22.5	30	29	21	29	38	44.5	39	41	50	60	±1

D	54	61.5	60	63	75	75	87	75	95	115	120	±0.15

E	62	70.5	68	72	85	85	98	45	50	80	90	±1

F	24	28	20	27	25	27	30	35	50	60	60	±0.5

G	12.5	10.5	10	10	10	15.5	16	22	24	26	35	±0.5

H	4.5	6	4.5	4.5	5	4.5	4.5	4.2	4.2	4*6	4*6	±0.15

I		4.5						4.2*6.2	4.2*6.2	4*6	4*6	±0.15

J								M4/M6	M4/M6	M4/M6	M4/M6

K	6.3*0.8	6.3*0.8	UL 1015	6.3*0.8	6.3*0.8	6.3*0.8	6.3*0.8	M4	M4	M4	M4	±0.15

L								35	50	60	60	±2

Insertion loss table(In 50ohm system according IEC/CISPR No.17)

Common mode -------- differential mode

1A 3A

EMI EMC Electrical Power Line Filters 10A 120 250VAC For LED Light 6

6A 8A

EMI EMC Electrical Power Line Filters 10A 120 250VAC For LED Light 8

10A 20A

EMI EMC Electrical Power Line Filters 10A 120 250VAC For LED Light 10

30A

EMI EMC Electrical Power Line Filters 10A 120 250VAC For LED Light 12
