Yanbixin PCB Pin Power Line Filters Single Phase For Spot Welding Machine

Yanbixin PCB Pin Power Line Filters Single Phase For Spot Welding Machine

power supply noise filter

dc power supply noise filter

Place of Origin:

China

Brand Name:

YBX

Certification:

cUL, TUV, CQC, CE, ROHS

Model Number:

YB11P2-1A-S

Contact Us

Request A Quote
Product Details
P.N:
PCB-Mounting 1A Filter
Origin:
Shenzhen,China
Rated Current:
1A~6A
Input Impedance:
50MOhm
Packing:
Paper Box
Certify:
CUL, TUV, CE, CQC, ROHS, CB
Payment & Shipping Terms
Minimum Order Quantity
100pcs
Price
Negotiable
Packaging Details
56.5*28.5*22.5cm(one box)
Delivery Time
15-25 days
Payment Terms
L/C, T/T
Supply Ability
500000 Piece/Pieces per Month
Product Description



Yanbixin PCB Pin Power Line Filters Single Phase For Spot Welding Machine

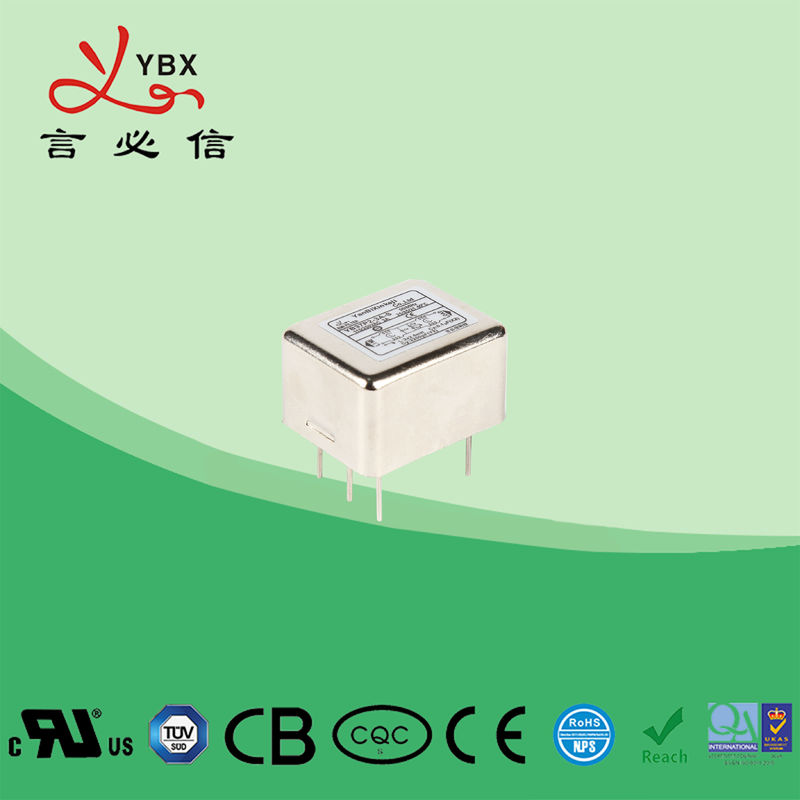

Product Picture



Yanbixin PCB Pin Power Line Filters Single Phase For Spot Welding Machine 0Yanbixin PCB Pin Power Line Filters Single Phase For Spot Welding Machine 1

Physical Dimensions

Yanbixin PCB Pin Power Line Filters Single Phase For Spot Welding Machine 2

Electrical Schematic

Yanbixin PCB Pin Power Line Filters Single Phase For Spot Welding Machine 3

Characteristics

(1) Voltage Rating............................................................................................115/250VAC

(2) Current Rating:

A.@115VAC............................................................................................... 6A RMS Max.

B.@250VAC............................................................................................... 6A RMS Max.

(3) Oprating Frequency:50/60Hz

(4) Leakage Current: each line to ground

A. 115VAC/60Hz........................................................................................... 0.4mA Max.

B. 250VAC/50Hz...........................................................................................0.8mA Max.

(5) Hipot Rating(for one minute)

A. Line to ground............................................................................................ 2250VDC

B. Line to line.................................................................................................. 1450VDC

(6) IR: 50M ohm A7 500VDC any input or output to ground

(7) Temperature Range: -25℃~+85℃



Our Company

1.Customized:We have a professional R&D team; our aims is we won't let customers

spend any extra money.

2.Listed company:National high-tech enterprises, brand assurance, reliable quality, and

we have the relevant product certifications.

3.Rectification test: We cooperate with top scientific research laboratories to provide free

EMC rectification technical support, samples; and free conduction test.

4.Scale production:Automation technology, scale production, great price,excellent, service,

fast delivery! Free replacement within three months, free maintenance within six years,

life-long maintenance!



Our Certificates
.png
Single Phase Filter:
cUL:20190321-E471748
TUV:B0899310001Rev.01
CQC:19001226449
CE:SZAIS180620005-01
ROHS:MMCRHRWM60371744
Three Phase Filter:
cUL:20190325-E502442
ENEC:ENEC-02580
CE:SZAIS180620005-01
ROHS:MMCRHRWM60371744

Our service

Sample

-- Sample Fee: Negotiate

-- Sample Time: 3~5 days



Payment

---Payment terms: Western Union, D/P, T/T,L/C

---Please remember to leave the correct contact information for delivery.



Packaging and Shipping

Packaging

Power Line Filter: CTN/300pcs

N/G W.: 13.5/14.3KG

Measures:0.565*0.285*0.225m



Shipment

---Shipping terms: DHL, UPS, FEDEX, TNT, EMS

---Port is Shenzhen or as requests.
