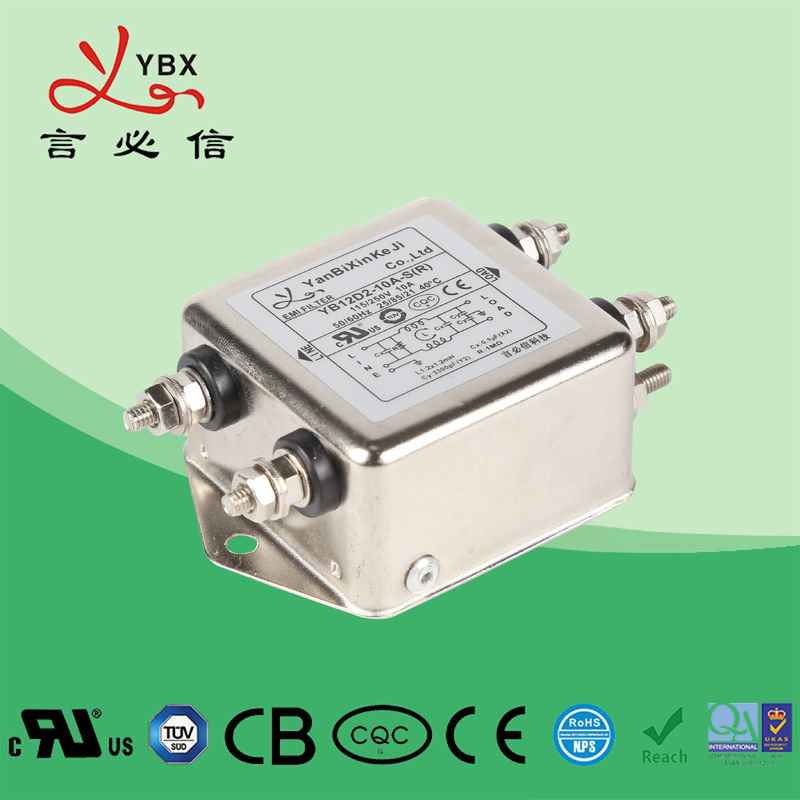

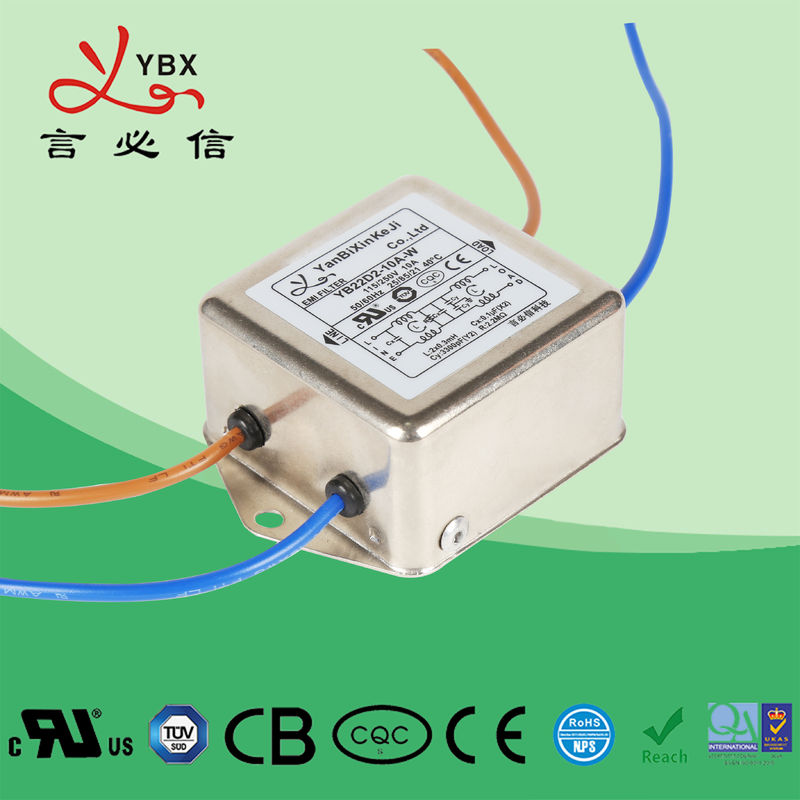

AC Medical Equipment EMI Noise Filter YB27D2-6A-S CE Certification

AC Medical Equipment EMI Noise Filter YB27D2-6A-S CE Certification

electrical line noise filter

electrical power line filters

Place of Origin:

China

Brand Name:

YBX

Certification:

cUL, TUV, CQC, CE, ROHS

Model Number:

YB27D2-6A-S

Contact Us

Request A Quote
Product Details
Item:
YB27D2-6A-S
Rated Current:
1A-10A
Case:
Metal
Brand:
YBX
Certificate:
ISO9001 CUL TUV CQC CE ROHS
Port:
SHENZHEN
Payment & Shipping Terms
Minimum Order Quantity
50pcs
Price
Negotiable
Packaging Details
56.5*28.5*22.5cm
Delivery Time
20-25 days
Payment Terms
T/T, L/C
Supply Ability
10000 Piece/Pieces per Month Ac 220V General Purpose Noise Filter
Product Description

YB27D2-6A-S 3A Electrical Noise Filter AC Medical Equipment EMI Noise Filter



Technical Specification:

Item Power line Filter
Model Power line Filter YB-D/F
Transfer Function Low Pass
Package Type Surface Mount
Nominal Center Frequency 10K-30MHZ
Insertion Loss 60~90dB
Input Impedance 50Ω
Rated Voltage 115V/250V
Rated Current 1~10A
Environmental Temperature 40°C
Temperature Range 25 / 085 / 21
Operating Frequency 50/60HZ
Line to Line 1450VDC
Line to Ground 2250VDC
Maximum Leakage Current 250VAC/60HZ 0.8mA Max
MOQ 50pcs
Price USD1~5/Meter
Lead Time 5~15 weekday



Features:



--  Designed 2 stage enhanced filtering to prevent the power supply may produce interference to the device



--  Various terminal options allow you to select



--  There are a variety of parts and combinations to meet different customer's EMC tests



--  Customized products according to customer's requirements.



Typical Applications:



-- Electrical and electronic equipment



-- Medical equipment



-- Building automation



-- Office automation and datacom equipment



Rule of Nomination:



YB    27    E4   -   10A    -     Q            (  5  )

            ¦        ¦               ¦              ¦                   ¦ ¦

     circuit  case     current connection optional



Tabulates:

Model No. Rated Current
@40°C
Terminal Options* Leakage current 250V/50Hz Electrical Schematic Rated Voltage(V) Operating Frequency(Hz)


YB27E4-1A 1A~4A Q S W



















<0.8mA

Fig.1



















115/250V



















50/60Hz

YB27E4-6A 6A Q S W Fig.1
YB27E4-8A 8A Q S W Fig.1
YB27D1-1A 1A~4A Q - W Fig.1
YB27D2-6A 6A Q S W Fig.1
YB27D2-8A 8A Q S W Fig.1
YB27D3-8A 8A Q S W Fig.1
YB27D3-10A 10A Q S W Fig.1
YB27D3-15A 15A Q S - Fig.1
YB27D4-10A 10A Q S W Fig.1
YB27D4-15A 15A Q S - Fig.1
YB27D4-20A 20A Q S - Fig.1
YB27D5-15A 15A Q S - Fig.1
YB27D5-20A 20A Q S - Fig.1
YB27F1-15A 15A Q S - Fig.1
YB27F2-20A 20A Q S - Fig.1



Medical Type Tabulates:

Model No. Rated Current
@40°C
Terminal Options Medical equipment
5
Leakage current 250V/50Hz Electrical Schematic Rated Voltage(V) Operating Frequency(Hz)


YB27E4-1A-x(5) 1A~4A Q S W 5















<5μA

Fig.2















115/250V















50/60Hz

YB27E4-6A-x(5) 6A Q S W 5 Fig.2
YB27E4-8A-x(5) 8A Q S W 5 Fig.2
YB27D1-1A-x(5) 1A~4A Q - W 5 Fig.2
YB27D2-6A-x(5) 6A Q S W 5 Fig.2
YB27D2-8A-x(5) 8A Q S W 5 Fig.2
YB27D3-8A-x(5) 8A Q S W 5 Fig.2
YB27D3-10A-x(5) 10A Q S W 5 Fig.2
YB27D3-15A-x(5) 15A Q S - 5 Fig.2
YB27D4-10A-x(5) 10A Q S W 5 Fig.2
YB27D4-15A-x(5) 15A Q S - 5 Fig.2
YB27D4-20A-x(5) 20A Q S - 5 Fig.2
YB27D5-15A-x(5) 15A Q S   5 Fig.2
YB27D5-20A-x(5) 20A Q S - 5 Fig.2
YB27F1-15A-x(5) 15A Q S - 5 Fig.2
YB27F2-20A-x(5) 20A Q S - 5 Fig.2

AC Medical Equipment EMI Noise Filter YB27D2-6A-S CE Certification 0*Q: Fast-on 6.35x0.8mm            AC Medical Equipment EMI Noise Filter YB27D2-6A-S CE Certification 1  S: Screw lug           AC Medical Equipment EMI Noise Filter YB27D2-6A-S CE Certification 2 W: UL1015 18awg



Electrical schematic:



AC Medical Equipment EMI Noise Filter YB27D2-6A-S CE Certification 3

                             Fig.1



AC Medical Equipment EMI Noise Filter YB27D2-6A-S CE Certification 4

                             Fig.2



Mechanical Dimension(Unit: mm)

AC Medical Equipment EMI Noise Filter YB27D2-6A-S CE Certification 5




Case E4 D1 D2 D3 D4 D5 F1 F2 Tolerances
A 44.5 51 51 63 63 73 72 98 ±1
B 50.5 33 51 51 51 56 65 80 ±1
C 30 29 21 29 38 45 39 41 ±1
D 61.5 60 63 75 75 87 75 95 ±0.15
E 70.5 68 72 85 85 98 45 50 ±1
F 28 20 27 25 27 30 35 50 ±0.5
G 10.5 10 10 10 15.5 16 22 24 ±0.5
H 6 4.5 4.5 5 4.5 4.5 4.2 4.2 ±0.15
I 4.5           4.2*6.2 4.2*6.2 ±0.15
J             M4/M6 M4/M6
K 6.3*0.8 18AWG 6.3*0.8 6.3*0.8 6.3*0.8 6.3*0.8 M4 M4 ±0.15
L             35 50 ±2







Insertion loss table(In 50ohm system according IEC/CISPR No.17)

                                 Common mode                            -------- differential mode



                                   1A                                                                               3A

         AC Medical Equipment EMI Noise Filter YB27D2-6A-S CE Certification 6                  AC Medical Equipment EMI Noise Filter YB27D2-6A-S CE Certification 7



                                   6A                                                                                15A

         AC Medical Equipment EMI Noise Filter YB27D2-6A-S CE Certification 8                   AC Medical Equipment EMI Noise Filter YB27D2-6A-S CE Certification 9
