YB11B1 High Performance EMI Power Inlet Filter Socket with Fuse Power Line Filter
IEC Inlet Emi Filter:
The IEC Inlet EMI filter is a passive electronic component designed to reduce or eliminate electromagnetic interference (EMI) transmitted through power lines and cables. IEC inlet EMI filter is designed to comply with the safety and performance standards of the International Electrotechnical Commission (IEC). Its commonly used current: 1A,3A,6A,8A,10A, etc., applicable voltage: 115V/250V, to meet the specific requirements of different applications.
Feature Of IEC Inlet Emi Filter:
1. Current Rating: Emi Filter is available in various current ratings to accommodate different equipment power requirements.
2. Voltage Rating: IEC Inlet Filter is available in various voltage ratings to accommodate different power supply voltage levels.
3. Safety: IEC Inlet EMI filter is designed to meet safety standards and regulations, including those set by the International Electrotechnical Commission (IEC) and other regulatory bodies.
(1) Voltage Rating............................................................................................115/250VAC
(2) Current Rating:
A.@115VAC............................................................................................... 6A RMS Max.
B.@250VAC............................................................................................... 6A RMS Max.
(3) Oprating Frequency:50/60Hz
(4) Leakage Current: each line to ground
A. 115VAC/60Hz........................................................................................... 0.4mA Max.
B. 250VAC/50Hz...........................................................................................0.8mA Max.
(5) Hipot Rating(for one minute)
A. Line to ground............................................................................................ 2250VDC
B. Line to line.................................................................................................. 1450VDC
(6) IR: 50M ohm A7 500VDC any input or output to ground
(7) Temperature Range: -25℃~+85℃
Typical Applications:
1. Portable electrical and electronic equipment
2. Medical equipment
3. Test and measurement equipment
4. Single-phase power supply,switch-mode power supply
YB11C1-6A-Q Specification:
| Item | YB-B Series Inlet Filter | Rated Current | 1~10A |
| Model | IEC Filter YB-C | Environmental Temperature | 40°C |
| Transfer Function | Low Pass | Temperature Range | 25 / 085 / 21 |
| Package Type | Surface Mount | Operating Frequency | 50/60HZ |
| Nominal Center Frequency | 10K-30MHZ | Line to Line | 1450VDC |
| Insertion Loss | 60~90dB | Line to Ground | 2250VDC |
| Input Impedance | 50Ω | Maximum Leakage Current | 250VAC/60HZ 0.8mA Max |
| Rated Voltage | 115V/250V | MOQ | 1pcs |

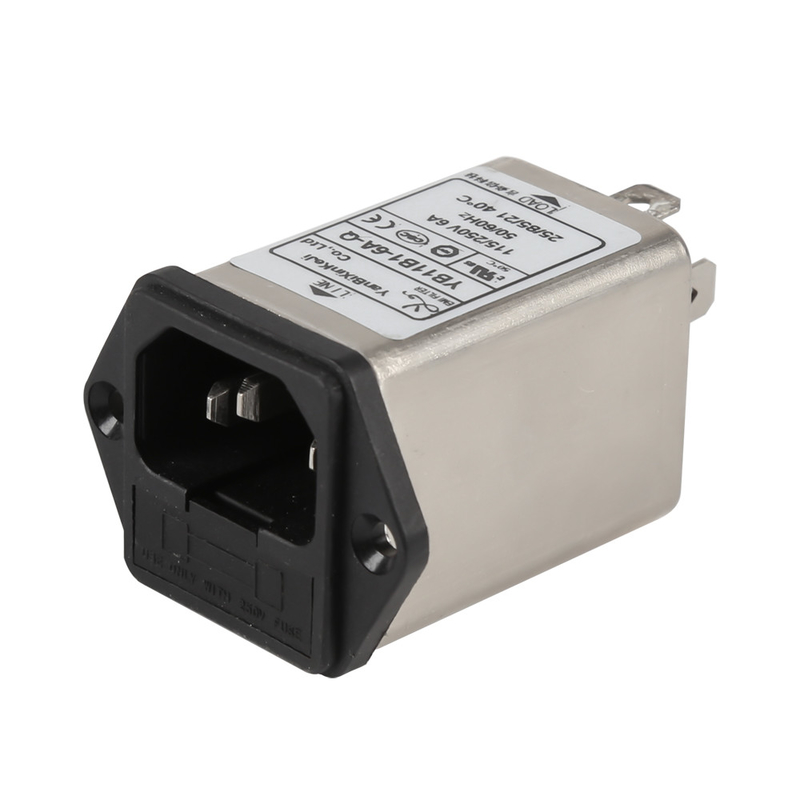

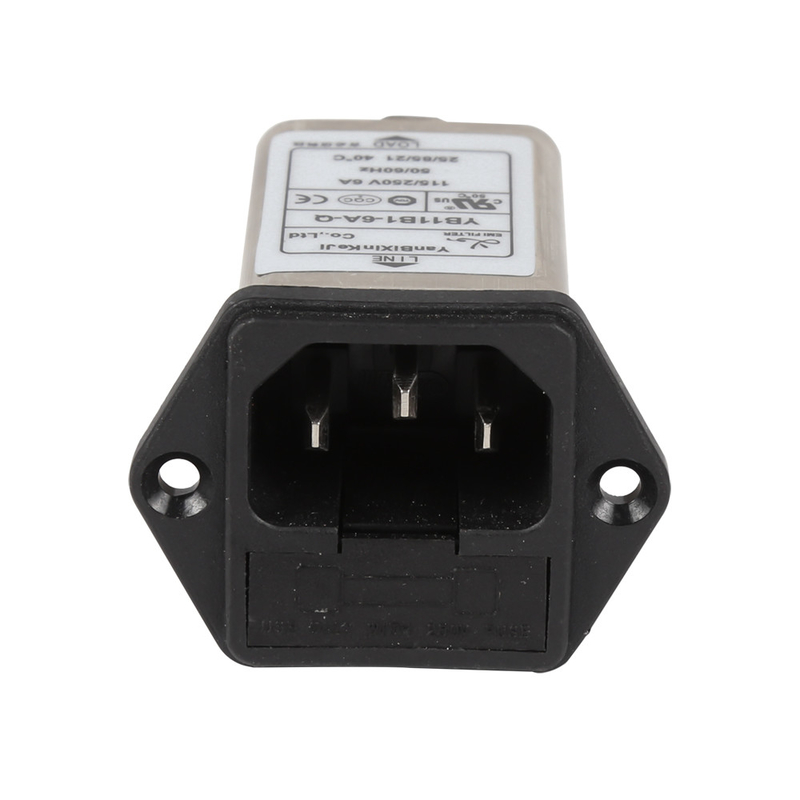

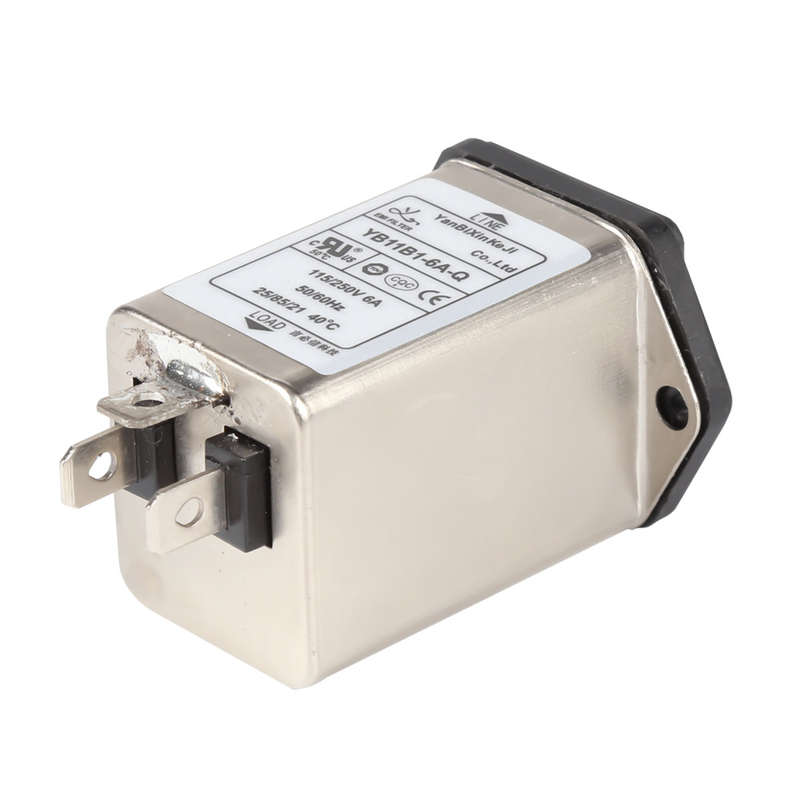

YB11B1-6A-Q Product Picture:
Physical Dimension:
Electrical Schematic:
Common Mode Differential Mode:
