YB21D4-15A-Q Low Pass EMI Filter 50/60Hz Frequency Compact Power Filter

YB21D4-15A-Q Low Pass EMI Filter 50/60Hz Frequency Compact Power Filter

power supply noise filter

power line rfi filter

Place of Origin:

China

Brand Name:

YBX

Certification:

cUL, TUV, CQC, CE, ROHS

Model Number:

YB21D4-15A-S

Contact Us

Request A Quote
Product Details
Item:
Compact Power Filter
Type:
EMI Filter
Voltage:
115V/250V
MAX Current:
15A
Transfer Function:
Low Pass
Line To Line:
1450VDC
Line To Ground:
2000VAC
Approval:
CUL TUV CQC CE ROHS ISO9001:2008
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiable
Packaging Details
56.5*28.5*22.5cm(one box)
Delivery Time
15-25 days
Payment Terms
L/C, T/T
Supply Ability
500000 Piece/Pieces per Month
Product Description

YB21D4-15A-Q Low Pass EMI Filter 50/60Hz Frequency Compact Power Filter



Description Of Low Pass EMI Filter:



Low Pass EMI Filter is an electronic component to reduce or eliminate unwanted high frequency electromagnetic interference from electrical circuits.It is usually made up of inductors, capacitors, resistors and metal enclosures.



  •

Our Advantages In The Field Of EMI Filter:



1. After years of development, our Low pass emi filter has obtained cUL, TUV, CQC, CE, ROSH certification, complete product certification, quality assurance



2. Cooperate with domestic first-class scientific research laboratory, provide free EMC rectification technical support, samples; free conduction test.



3. We have a professional R & D team, the core team members have more than 10 years of experience in EMI solutions.



Characteristic:

(1) Voltage Rating............................................................................................115/250VAC

(2) Current Rating:

A.@115VAC............................................................................................... 20A RMS Max.

B.@250VAC............................................................................................... 20A RMS Max.

(3) Oprating Frequency:50/60Hz

(4) Leakage Current: each line to ground

A. 115VAC/60Hz........................................................................................... 0.4mA Max.

B. 250VAC/50Hz...........................................................................................0.8mA Max.

(5) Hipot Rating(for one minute)

A. Line to ground............................................................................................ 2250VDC

B. Line to line.................................................................................................. 500VDC

(6) IR: 50M ohm A7 500VDC any input or output to ground

(7) Temperature Range: -25℃~+85℃



Parameter Of Low Pass EMI Filter:



Item 150K-30MHz EMI Filter Rated Current 1A~15A
Model YB21D4-15A-Q Rated Voltage 115V/250V
Operating Frequency 50/60HZ Line to Line 1450VDC
Output mode Screw Line to Ground 2250VDC
Transfer Function Low Pass Leakage Current 115VAC/50HZ 0.4mA Max
250VAC/60HZ 0.8mA Max
Package Type Surface Mount Environmental Temperature 40
Nominal Center Frequency 100K-30MHZ Input Impedance 50Ω
Insertion Loss 50~80dB Lead Time 5~15 weekday



Model No. Rated Current
@40°C
Terminal Options Medical equipment
5
Leakage current 250V/50Hz Electrical Schematic Rated Voltage(V) Operating Frequency(Hz)
    YB21D4-15A-Q Low Pass EMI Filter 50/60Hz Frequency Compact Power Filter 0
YB21D1-1A-x(5) 1A - - W 5 <5μA Fig.2 115/250V 50/60Hz
YB21D1-2A-x(5) 2A - - W 5 Fig.2
YB21D1-3A-x(5) 3A - - W 5 Fig.2
YB21D1-4A-x(5) 4A - - W 5 Fig.2
YB21D1-6A-x(5) 6A - - W 5 Fig.2
YB21D2-6A-x(5) 6A Q S W 5 Fig.2
YB21D2-8A-x(5) 8A Q S W 5 Fig.2
YB21D2-10A-x(5) 10A Q S W 5 Fig.2
YB21D2-15A-x(5) 15A Q S - 5 Fig.2
YB21D3-8A-x(5) 8A Q S W 5 Fig.2
YB21D3-10A-x(5) 10A Q S W 5 Fig.2
YB21D3-15A-x(5) 15A Q S - 5 Fig.2
YB21D4-10A-x(5) 10A Q S W 5 Fig.2
YB21D4-15A-x(5) 15A Q S - 5 Fig.2
YB21D4-20A-x(5) 20A Q S - 5 Fig.2
YB21D5-15A-x(5) 15A Q S - 5 Fig.2
YB21D5-20A-x(5) 20A Q S - 5 Fig.2
YB21D5-30A-x(5) 30A - S - 5 Fig.2
YB21D6-20A-x(5) 20A Q S - 5 Fig.2
YB21D6-30A-x(5) 30A - S - 5 Fig.2



YB21D4-15A-Q Low Pass EMI Filter 50/60Hz Frequency Compact Power Filter 1

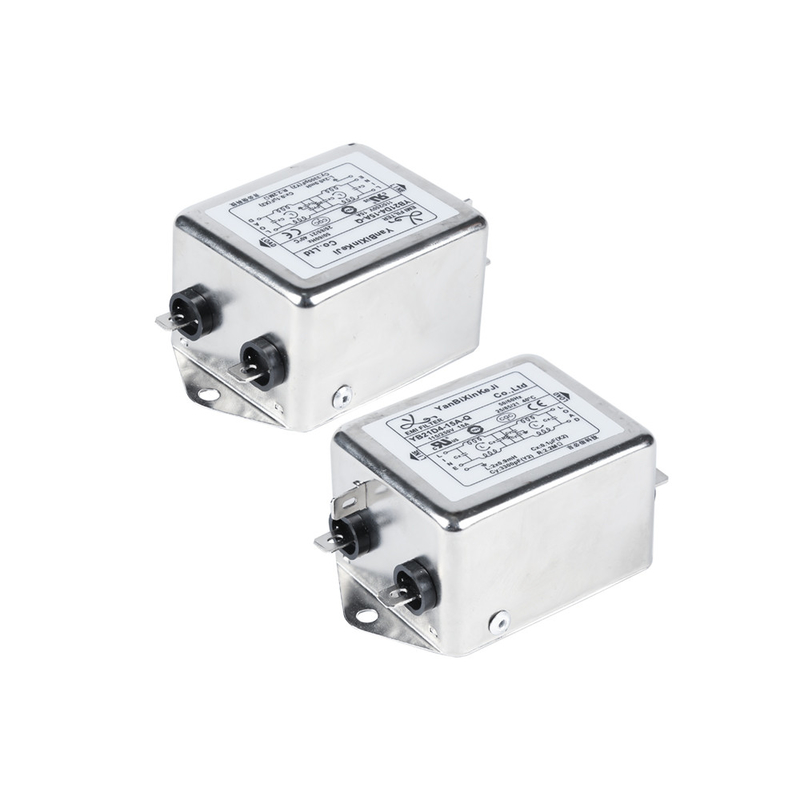

YB21D4-15A-Q EMI Filter Picture:



YB21D4-15A-Q Low Pass EMI Filter 50/60Hz Frequency Compact Power Filter 2

YB21D4-15A-Q Low Pass EMI Filter 50/60Hz Frequency Compact Power Filter 3



Physical Dimensions:



YB21D4-15A-Q Low Pass EMI Filter 50/60Hz Frequency Compact Power Filter 4

YB21D4-15A-Q Low Pass EMI Filter 50/60Hz Frequency Compact Power Filter 5



Electrical Schematic:



YB21D4-15A-Q Low Pass EMI Filter 50/60Hz Frequency Compact Power Filter 6



Our Certificates:



YB21D4-15A-Q Low Pass EMI Filter 50/60Hz Frequency Compact Power Filter 7
