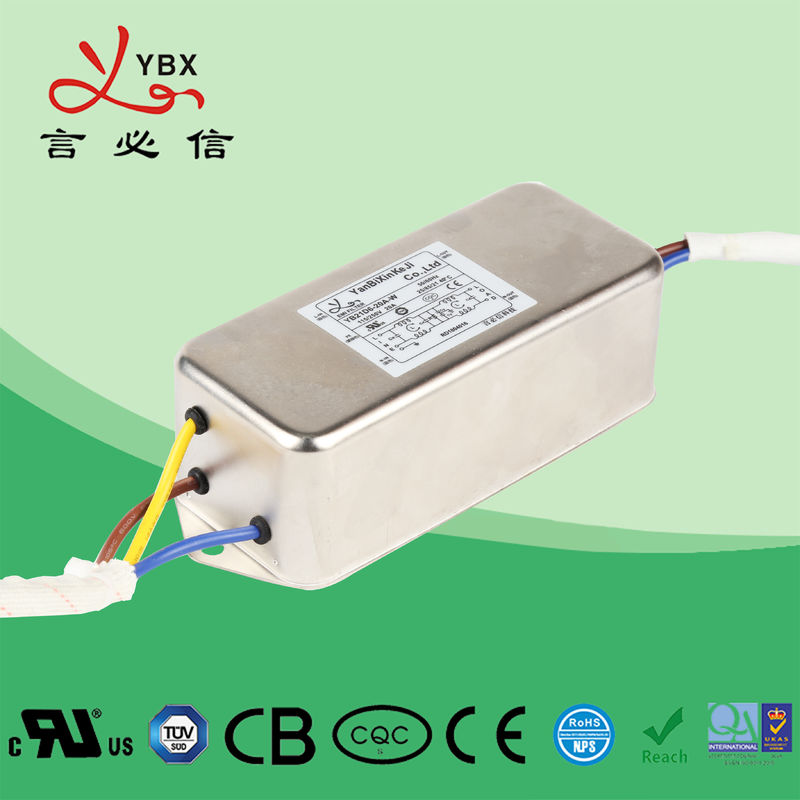

Multi - Stage 20A AC/DC EMI Power Supply Noise Filter Free Maintenance Within Six Years

Multi - Stage 20A AC/DC EMI Power Supply Noise Filter Free Maintenance Within Six Years

power supply noise filter

power line rfi filter

Place of Origin:

China

Brand Name:

Yanbixin

Certification:

cUL, TUV, CQC, CE, ROHS

Model Number:

YB42D6 - 20A - S

Contact Us

Request A Quote
Product Details
Product:
Excellent Performance D Series 20A EMI Filter
Voltage:
115V/250V
Current:
3A 6A 10A 15A 20A
Brand:
YBX
Line To Line:
1450VDC
Line To Ground:
2000VAC
Approval:
CUL TUV CQC CE ROHS ISO9001:2008
MOQ:
50pcs
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiable
Packaging Details
56.5*28.5*22.5cm(one box)
Delivery Time
15-25 days
Payment Terms
L/C, T/T
Supply Ability
500000 Piece/Pieces per Month
Product Description

Yanbixin High performance and efficiency multi-stage 20A AC/DC EMI Filter



Our Company



1.Customized:We have a professional R&D team; our aims is we won't let customers

spend any extra money.

2.Listed company:National high-tech enterprises, brand assurance, reliable quality, and

we have the relevant product certifications.

3.Rectification test: We cooperate with top scientific research laboratories to provide free

EMC rectification technical support, samples; and free conduction test.

4.Scale production:Automation technology, scale production, great price,excellent, service,

fast delivery! Free replacement within three months, free maintenance within six years,

life-long maintenance!





Physical Dimensions

Multi - Stage 20A AC/DC EMI Power Supply Noise Filter Free Maintenance Within Six Years 0



Electrical Schematic

Multi - Stage 20A AC/DC EMI Power Supply Noise Filter Free Maintenance Within Six Years 1



Characteristics

(1) Voltage Rating............................................................................................115/250VAC

(2) Current Rating:

A.@115VAC............................................................................................... 20A RMS Max.

B.@250VAC............................................................................................... 20A RMS Max.

(3) Oprating Frequency:50/60Hz

(4) Leakage Current: each line to ground

A. 115VAC/60Hz........................................................................................... 0.8mA Max.

B. 250VAC/50Hz...........................................................................................1.6mA Max.

(5) Hipot Rating(for one minute)

A. Line to ground............................................................................................ 2250VDC

B. Line to line.................................................................................................. 500VDC

(6) IR: 50M ohm A7 500VDC any input or output to ground

(7) Temperature Range: -25℃~+85℃






Our Certificates
.png
Single Phase Filter:
cUL:20190321-E471748
TUV:B0899310001Rev.01
CQC:19001226449
CE:SZAIS180620005-01
ROHS:MMCRHRWM60371744
Three Phase Filter:
cUL:20190325-E502442
ENEC:ENEC-02580
CE:SZAIS180620005-01
ROHS:MMCRHRWM60371744

Our service

Sample

Sample Fee: Negotiate

Sample Time: 3~5 days



Payment

---Payment terms: Western Union, D/P, T/T,L/C

---Please remember to leave the correct contact information for delivery.



Packaging and Shipping

Packaging

Power Line Filter: CTN/300pcs

N/G W.: 13.5/14.3KG

Measures:0.565*0.285*0.225m



Shipment

---Shipping terms: DHL, UPS, FEDEX, TNT, EMS

---Port is Shenzhen or as requests.
