1.YBX offers the widest selection of EMC/EMI filters in the world. Standardized and customer-specific solutions - with full engineering support - help to meet international compliance standards and improve the immunity and safety of electrical and electronic equipment.
2.Deeply cultivated in the EMI filter industry for 15 years, our products have obtained UL,CQC,CE,TUV,ROSH,ISO9001:2015 certification.
3.We have a professional design team and testing instruments, and provide EMC testing for free.
4.The production workshop covers an area of 3,000 square meters, with large-scale production, favorable price, good service and fast delivery.
5.YBX provides free EMI filter samples and a half-year replacement and lifetime warranty.
Product Paramenters
Product name

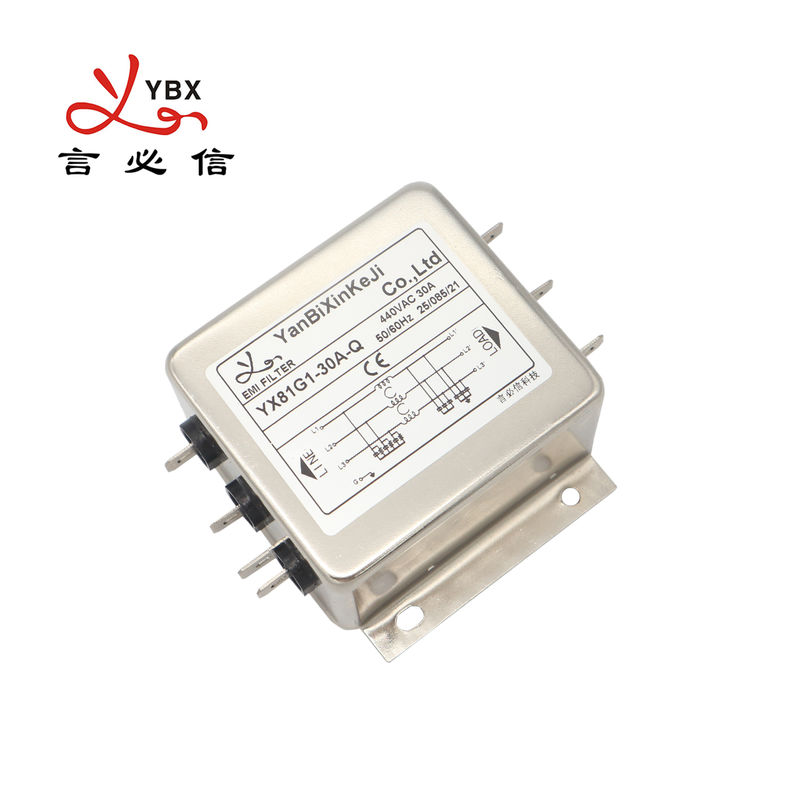

Three Phase Noise Filter
Model
YX81G1-6A-Q
Transfer Function
Low Pass
Package Type
Surface Mount
Nominal Center Frequency
10K-30MHZ
Insertion Loss
60~90dB
Input Impedance
50Ω
Rated Voltage
250V/440V
Rated Current
1A-100A
Environmental Temperature
40°C
Temperature Range
25 / 085 / 21
Operating Frequency
50/60HZ
Line to Line
1450VDC
Line to Ground
2250VDC or 2000VAC
Maximum Leakage Current
250VAC/60HZ 1.2mA Max. 440VAC/60HZ 2.5mA Max
MOQ
5pcs
Rule of Nomination:
YX
81
G1
—
10A
—
Q
|
|
|
|
|
Three Phase
Circuit
Dimension
3A :3 amps
Output connection
81: 81 circuit
G1
6A :6 amps
Q: Fast-on terminal
10A :10 amps
W: Wire

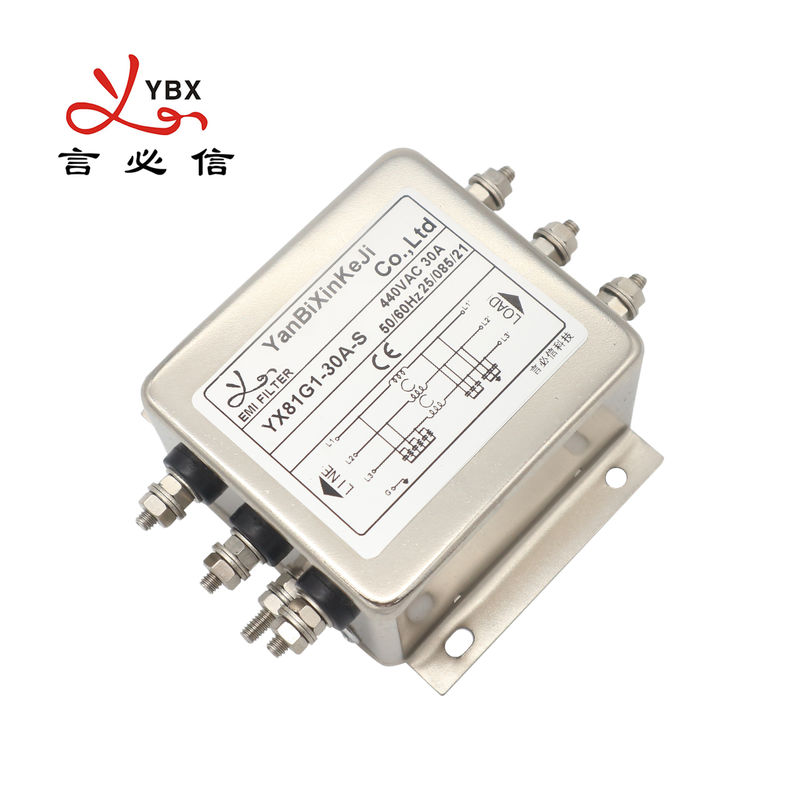

S: M4 Screw
EMI Filter Selection Table:
Model No.
Rated Current
@40°C
Terminal Options*
Leakage current 440V/50Hz
Electrical Schematic
Rated Voltage(V)
Operating Frequency(Hz)
YX81G1-1A
1A
Q
S
T
<1.0mA
Fig.1
250/440V
50/60Hz
YX81G1-3A
3A
Q
S
T
Fig.1
YX81G1-6A
6A
Q
S
T
Fig.1
YX81G1-10A
10A
Q
S
T
Fig.1
YX81G1-20A
20A
Q
S
T
Fig.1
YX81G1-30A
30A
-
S
T
Fig.1
YX81G2-30A
30A
-
S
T
<2.0mA
Fig.1
YX81G2-40A
40A
-
S
T
Fig.1
YX81G3-40A
40A
-
S
T
<5.0mA
Fig.1
YX81G3-50A
50A
-
S
T
Fig.1
YX81G3-60A
60A
-
S
T
Fig.1
YX81G5-80A
80A
-
S
T
<7.0mA
Fig.1
YX81G5-100A
100A
-
S
T
Fig.1
YX81G6-200A
200A
-
S
T
<10.0mA
Fig.1
Products Catergory
Company Profile
Shenzhen Yanbixin Technology Co., Ltd
Modern electronic products are in line with the miniaturization, high performance, high precision, high reliability, and high reactivity as the goal, so that the distribution density of circuit components is too high, the volume of the circuit is greatly reduced, but the more lightweight circuit becomes, there will be more components crowded in a small space, increasing the opportunity for interference, among which electromagnetic interference and noise is the most troubling. Electromagnetic interference has long been a blind spot in the design of electronic equipment and systems.
At YBX, we are at the forefront of EMI solutions. As electromagnetic specialists, we improve reliable solutions to reduce the complexity faced by our customers, YBX escorts your EMC testing
Shenzhen Yanbixin Technology Co., Ltd. was established in 2008, is a high-tech enterprise that integrates the production of electromagnetic compatibility (EMC) & power filter (EMI FILTER) products. Through the efforts of our staff for many years, our products have obtained cUL/UL, TUV, CQC, CE, CB, ENEC, ROHS, REACH and other certificates. We have also obtained the ISO9001:2015 quality system to ensure the quality of our products.
The company implements the "quality first, integrity-based" principle of doing things, and on the basis of communication and coordination, it does its best to meet the "technology, quality, price, delivery" needs of customers from all walks of life. We look forward to your support to witness our win-win situation.
The company's products have been widely used in many industries and fields; the company is based on professionalism, is keen on innovation, and has technical cooperation with well-known professional colleges in China! The company officially established a Dongguan production base in 2018 to automate large-scale production; and officially established a Dongguan laboratory to provide various customers with EMC technical rectification and services, and have successively solved many customers' technical problems.
Certifications
Custom praise
FAQ
Q1:What is your biggest advantage?
A1:We have a professional filter R&D and production team, which has been focusing on filters for 15 years.
Q2:Can you do OEM?
A2:Yes, if your demand can reach the minimum order quantity of OEM.
Q3:How long will your product be delivered?
A3:7-10 working days Delivery time for samples,15-25 working days Delivery time for samples for bulk product.
