3 Phase 3 Line Filter YX82G5 40A S Power Line Filter For Motor Drives

3 Phase 3 Line Filter YX82G5 40A S Power Line Filter For Motor Drives

three phase emi filter

3 phase power line filter

Place of Origin:

China

Brand Name:

Yanbixin

Certification:

cUL, TUV, CQC, CE, ROHS

Model Number:

YX83G5-40A-S

Contact Us

Request A Quote
Product Details
Product:
YX83G5 Power Line Filter
Type:
Three Phase Filter
Current:
1A-50A
MOQ:
380V/520V
Operating Frequency:
50/60HZ
Certificate:
CUL TUV CQC CE ROHS ISO9001
Payment & Shipping Terms
Minimum Order Quantity
100pcs
Price
Negotiable
Packaging Details
56.5*28.5*22.5cm
Delivery Time
20-25 days
Payment Terms
T/T, L/C
Supply Ability
10000 Piece/Pieces per Month DC 220V General Purpose Noise Filter
Product Description

High Performance Three Phase Three Wire Power Line Filter



Three Phase Filter:

YX83G5-40A-S is the Three Phase Filter with excellent high frequency attenuation performance.The output can be M4 Screw, Copper Bar Or Terminal Block.The frequency range between 150 KHz and 30 MHz. Compliance with the limit values required under industrial standards.



Features Of Three Phase Filter:
1. Good noise attenuation in both forward and reverse directions for common mode and normal mode.
2. High reliability designed for industrial equipment usage with 3-Phase 3-Wire and 3-Phase 4-Wire.
3. The rated current can be offered from 10 to 100 amps.
4. Various screw terminals output for different amps is designed for easy installation.
5. Custom-specific versions are available on request.



Technical Specification:

  • Rated Voltage: 380/520VAC
  • Rated Currents: 10A ~ 100A
  • Operating Frequency: 50/60Hz
  • Hipot Rating (Line-to-Line): 1450VDC
  • Hipot Rating (Line-to-Ground): 2250VDC
  • Operating Temperature: -25 ~ +85°C
  • Safety Compliance: CE

Application:

Applications comprising frequency inverters, motor drives and servo drives, Three-phase applications automation equipment



Filter Selection Table:

Part No. Case Rated Currents (A) Output Connections
YX83G5-10A G5 10 M4 Screw/M6 Screw
YX83G5-15A G5 15
YX83G5-20A G5 20 Terminal Block
YX83G5-30A G5 30
YX83G5-40A G5 40 Cooper Bar
YX83G5-50A G5 50

3 Phase 3 Line Filter YX82G5 40A S Power Line Filter For Motor Drives 0*Q: Fast-on 6.35x0.8mm 3 Phase 3 Line Filter YX82G5 40A S Power Line Filter For Motor Drives 1S: Screw lug 3 Phase 3 Line Filter YX82G5 40A S Power Line Filter For Motor Drives 2T: Terminal block



Naming Rule:

YX 83 G5 - 40A - S

Three Phase Circuit Dimension   Current   Output Connection
  83:83 circuit G5   20A :20 amp   S: M4/M6 screw
        30A :30 amp   T: Terminal Block
        40A :40 amp   B: Cooper Bar



Characteristics:

(1) Voltage Rating............................................................................................380/520VAC

(2) Current Rating:

A.@380VAC............................................................................................... 40A RMS Max.

B.@520VAC............................................................................................... 40A RMS Max.

(3) Oprating Frequency:50/60Hz

(4) Leakage Current: each line to ground

A. 380VAC/60Hz........................................................................................... 1mA Max.

B. 520VAC/50Hz...........................................................................................2mA Max.

(5) Hipot Rating(for one minute)

A. Line to ground............................................................................................ 2250VDC

B. Line to line.................................................................................................. 1450VDC

(6) IR: 50M ohm A7 500VDC any input or output to ground

(7) Temperature Range: -25℃~+85℃

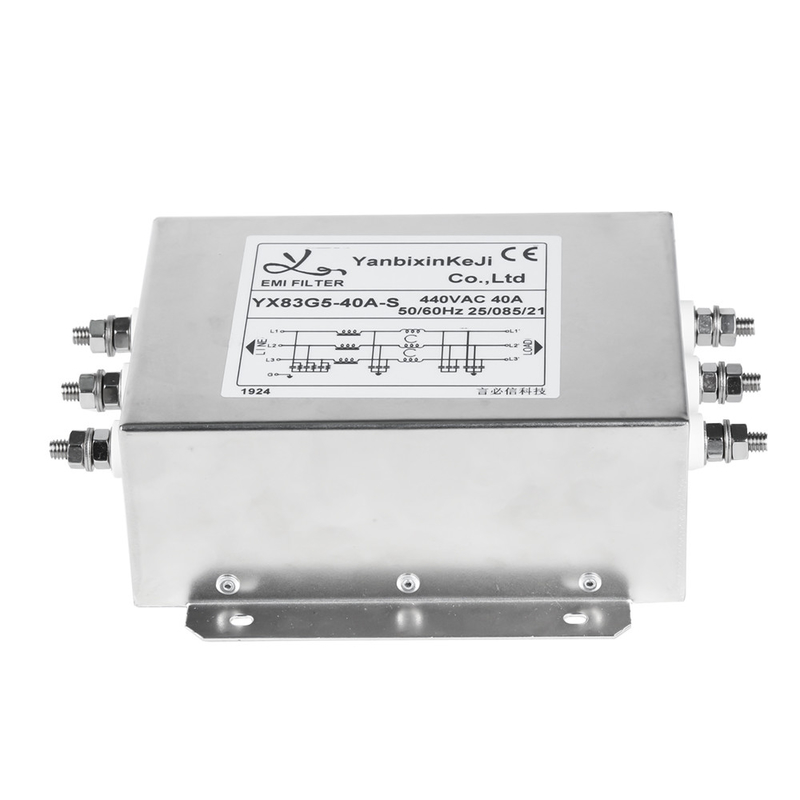

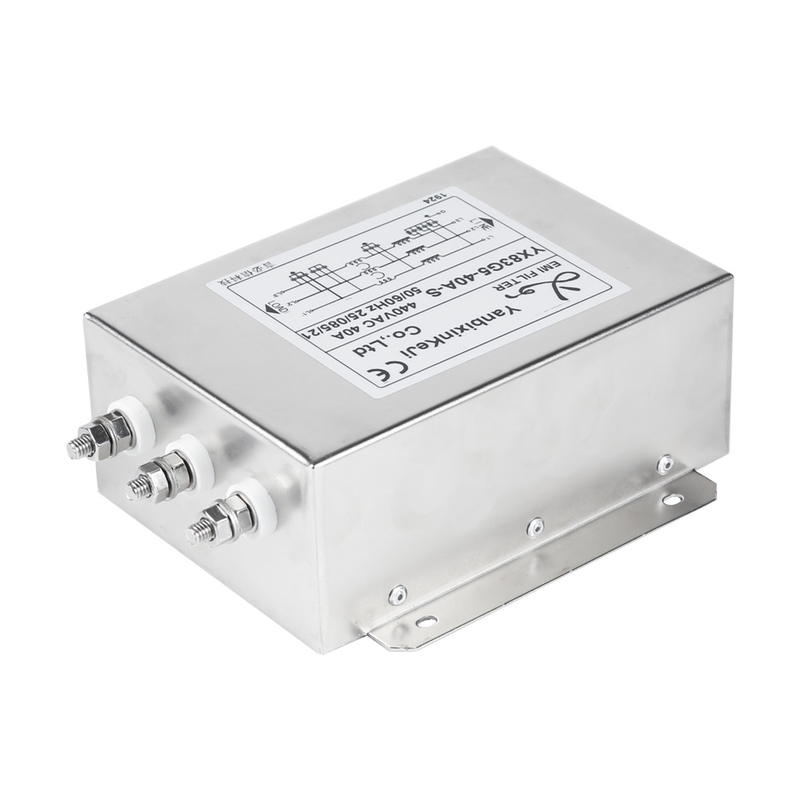

YX83G5-40A-S Filter Picture:

3 Phase 3 Line Filter YX82G5 40A S Power Line Filter For Motor Drives 3



Electrical Schematic:

3 Phase 3 Line Filter YX82G5 40A S Power Line Filter For Motor Drives 4



Mechanical Dimension(Unit: mm)

3 Phase 3 Line Filter YX82G5 40A S Power Line Filter For Motor Drives 5

3 Phase 3 Line Filter YX82G5 40A S Power Line Filter For Motor Drives 6



3 Phase 3 Line Filter YX82G5 40A S Power Line Filter For Motor Drives 7
