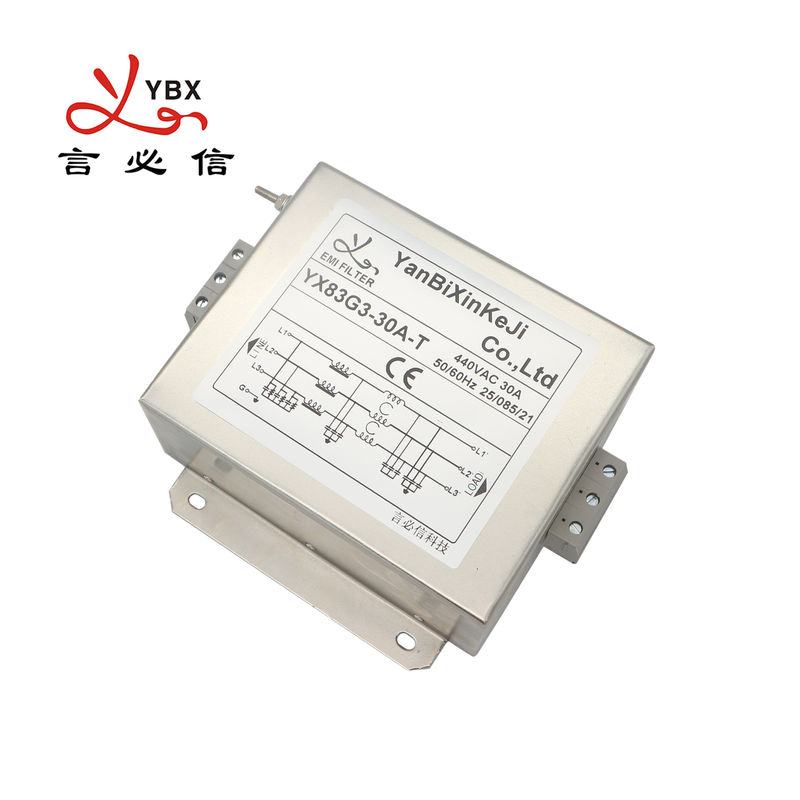

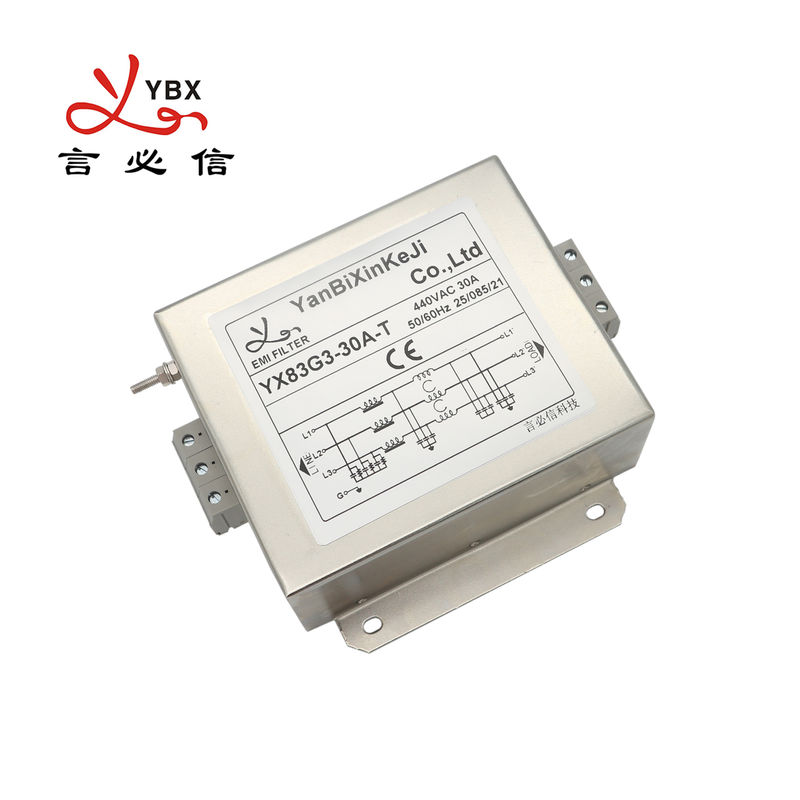

YX83G3 Industrial Three Phase Filter Terminal Block Connertion EMI Noise Filter

YX83G3 Industrial Three Phase Filter Terminal Block Connertion EMI Noise Filter

520VAC Three Phase Rfi Filter

300MHz Three Phase Rfi Filter

4000VDC Three Phase Rfi Filter

Place of Origin:

China

Brand Name:

YBX

Certification:

CE,ROHS

Model Number:

YX83G3-30A-T

Contact Us

Request A Quote
Product Details
Rated Voltage:
520VAC,50/60Hz
Operating Frequency:
50/ 60Hz
Rated Currents:
1~200A@50°C
L-N:
1600VDC
L/N-G:
4000VDC
Overload Current:
1.5x Rated Current For 1 Minute, Once Per Hour
Climatic Category:
-25°C~+85°C
Flammability Corresponding To:
UL 94V-0
TYPE:
YX83G3-30A-T
Transfer Function:
Low Pass
Payment & Shipping Terms
Minimum Order Quantity
10PCS
Price
Negotiable
Packaging Details
56.5*28.5*22.5cm(one box)
Delivery Time
10-20 days
Payment Terms
T/T
Supply Ability
5000 Piece/Pieces per Month
Product Description

YX83G3 Industrial Three Phase Filter Terminal Block Connertion EMI Noise Filter



We have the relevant product's certificates,Multipole installation options are available ,product can be customized,working with the top research LABS to provide free diagnostic test.



Typical Applications:



-- For photovoltaic systems and industrial applications



-- Three-phase motor drives



-- UPS/SMPS



-- Industrial automation equipment



Technical Specification:



Item

3 Phase EMI Filter

Model

3 Phase EMI Filter -YX83G3series

Transfer Function

Low Pass

Package Type

Surface Mount

Nominal Center Frequency

10K-30MHZ

Insertion Loss

60~90dB

Input Impedance

50Ω

Rated Voltage

380V/440V

Rated Current

1A-100A

Environmental Temperature

40°C

Temperature Range

25 / 085 / 21

Operating Frequency

50/60HZ

Line to Line

1450VDC

Line to Ground

2250VDC or 2000VAC

Maximum Leakage Current

115VAC/60HZ 1.4mA Max. 250VAC/60HZ 2.5mA Max

MOQ

10pcs

Lead Time

3~15 weekday for Low Pass EMI Filter



Features:



1. Rated currents from 1 to 1200A.



2. High attenuation performance up to 300 MHz.



3. Voltage rating 520VAC for world wide acceptance



4.  Approvals(100A MAX.)



Rule of Nomination:



YX----83-------G3------30A------------T

           ¦           ¦            ¦                  ¦

      circuit   case    current   connection



Tabulates:



Model No.

Rated Current
@40°C

Terminal Options*

Leakage current 440V/50Hz

Electrical Schematic

Rated Voltage(V)

Operating Frequency(Hz)



YX83G3 Industrial Three Phase Filter Terminal Block Connertion EMI Noise Filter 0

YX83G3 Industrial Three Phase Filter Terminal Block Connertion EMI Noise Filter 1

YX83G3 Industrial Three Phase Filter Terminal Block Connertion EMI Noise Filter 2

YX81G1-1A

1A

Q

S

T

<1.0mA

Fig.1

250/440V

50/60Hz

YX81G1-3A

3A

Q

S

T

Fig.1

YX81G1-6A

6A

Q

S

T

Fig.1

YX81G1-10A

10A

Q

S

T

Fig.1

YX81G1-20A

20A

Q

S

T

Fig.1

YX81G1-30A

30A

-

S

T

Fig.1

YX81G2-30A

30A

-

S

T

<2.0mA

Fig.1

YX81G2-40A

40A

-

S

T

Fig.1

YX81G3-40A

40A

-

S

T

<5.0mA

Fig.1

YX81G3-50A

50A

-

S

T

Fig.1

YX81G3-60A

60A

-

S

T

Fig.1

YX81G5-80A

80A

-

S

T

<7.0mA

Fig.1

YX81G5-100A

100A

-

S

T

Fig.1

YX81G6-200A

200A

-

S

T

<10.0mA

Fig.1

YX83G3 Industrial Three Phase Filter Terminal Block Connertion EMI Noise Filter 3*Q: Fast-on 6.35x0.8mm YX83G3 Industrial Three Phase Filter Terminal Block Connertion EMI Noise Filter 4S: Screw lug YX83G3 Industrial Three Phase Filter Terminal Block Connertion EMI Noise Filter 5T: Terminal block



Electrical Schematic:



YX83G3 Industrial Three Phase Filter Terminal Block Connertion EMI Noise Filter 6



Fig.1 Standard type



Insertion loss table(In 50ohm system according IEC/CISPR No.17)



YX83G3 Industrial Three Phase Filter Terminal Block Connertion EMI Noise Filter 7
