380V G5 3 Phase Filter Screw Terminal High Current EMI/RFI Filter For Industrial Automation

380V G5 3 Phase Filter Screw Terminal High Current EMI/RFI Filter For Industrial Automation

440V 3 Phase EMI Filter

380V 3 Phase EMI Filter

250VAC 3 phase power filter

Place of Origin:

China

Brand Name:

YBX

Certification:

cUL, TUV, CQC, CE, ROHS

Model Number:

YX81G5-100A-S

Contact Us

Request A Quote
Product Details
Product Name:
YX81G5 Three Phase Filter
Rated Voltage:
380V/440V
Rated Current:
1A-200A
Transfer Function:
High Pass
Operating Frequency:
50/60HZ
Line To Line:
1450DVC
Line To Ground:
2400VDC
Environmental Temperature:
40°C
Payment & Shipping Terms
Minimum Order Quantity
10pcs
Price
Negotiable
Packaging Details
56.5*28.5*22.5cm
Delivery Time
20-25 days
Payment Terms
T/T, L/C
Supply Ability
50000 Piece/Pieces per Month
Product Description

380V G5 3 Phase Filter Screw Terminal High Current EMI/RFI Filter For Industrial Automation



Customized Products RFI Power Filter With 380V, 440V OEM Noise EMI Filter



Technical Specification:



Item YX81G5 Three Phase Filter
Model YX81G5-100A-S
Transfer Function Low Pass
Package Type Surface Mount
Nominal Center Frequency 150K-30MHZ
Insertion Loss 60~90dB
Input Impedance 50Ω
Rated Voltage 380V/440V
Rated Current 1~200A
Environmental Temperature 40°C
Temperature Range 25 / 085 / 21
Operating Frequency 50/60HZ
Line to Line 1450VDC
Line to Ground 2250VDC
Maximum Leakage Current 380VAC/60HZ 2.5mA Max
MOQ 5pcs
Price USD1.5~98.8/Meter
Lead Time 5~15 weekday



Features:



--  Protection against interference of voltage



--  New connection terminal block, with safety protection



--  There are a variety of parts and combinations to meet different customer's EMC tests



--  Customized products according to customer's requirements



Typical Applications:



-- For photovoltaic systems and industrial applications



-- Three-phase motor drives



-- UPS/SMPS



-- Industrial automation equipment



Filter Selection Table:



Part No. Case Rated Currents (A) Output Connections
YX81G5-10A G5 10 M4/M6/M8 screw
YX81G5-20A G5 20
YX81G5-30A G5 30 Terminal block
YX81G5-40A G5 40
YX81G5-50A G5 50 Copper bar



380V G5 3 Phase Filter Screw Terminal High Current EMI/RFI Filter For Industrial Automation 0 B: Copper bar 380V G5 3 Phase Filter Screw Terminal High Current EMI/RFI Filter For Industrial Automation 1 S: Screw lug 380V G5 3 Phase Filter Screw Terminal High Current EMI/RFI Filter For Industrial Automation 2 T: Terminal block



This nomination and the below informations just for your reference, we will make different part number and parameters according to customer's requests.



If you want to know more, pls email or consult us directly, we are ready to provide the service to you anytime!



Thank you!!!



Tabulates:



Model No. Rated Current
@40°C


Terminal Options*

Leakage current 440V/50Hz

Electrical Schematic

Rated Voltage(V) Operating Frequency(Hz)






YX81G5-10A-T 10A - - T





<1.0mA

Fig.1









250/440V









50/60Hz

YX81G5-20A-T 20A - - T Fig.1
YX81G5-30A-T 30A - - T Fig.1
YX81G5-40A-T 40A - - T Fig.1
YX81G5-50A-T 50A - - T Fig.1
YX81G5-60A-T 60A - - T Fig.1
YX81G5-80A-T 80A - - T

<2.0mA

Fig.1
YX81G5-100A-T 100A - - T Fig.1
YX81G5-120A-T 120A - - T

<5.0mA

Fig.1
YX81G5-160A-T 160A - - T Fig.1



Electrical Schematic:



380V G5 3 Phase Filter Screw Terminal High Current EMI/RFI Filter For Industrial Automation 3



Mechanical Dimension(Unit: mm)



380V G5 3 Phase Filter Screw Terminal High Current EMI/RFI Filter For Industrial Automation 4



380V G5 3 Phase Filter Screw Terminal High Current EMI/RFI Filter For Industrial Automation 5

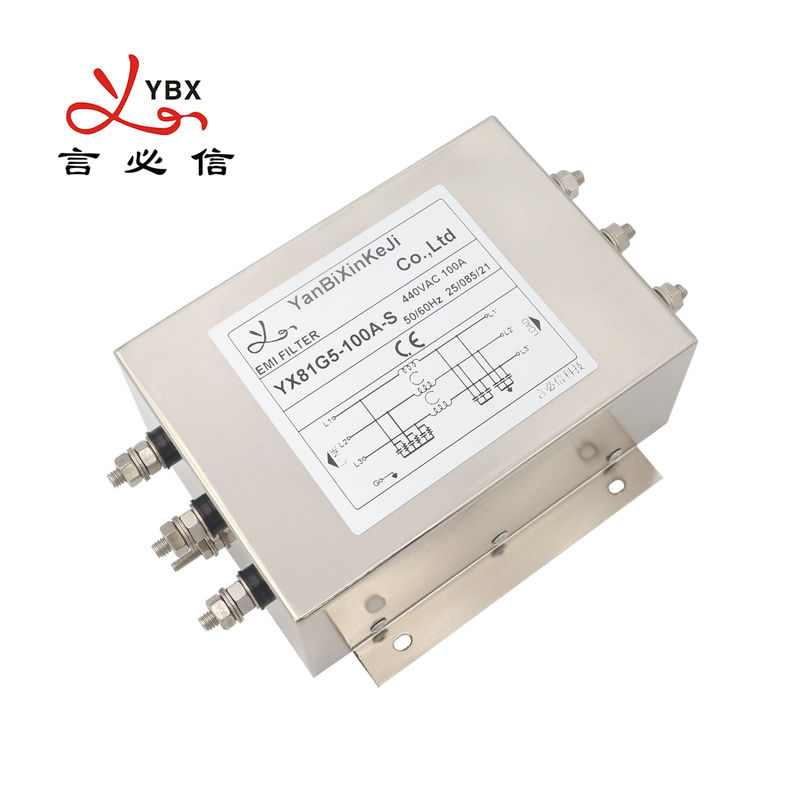

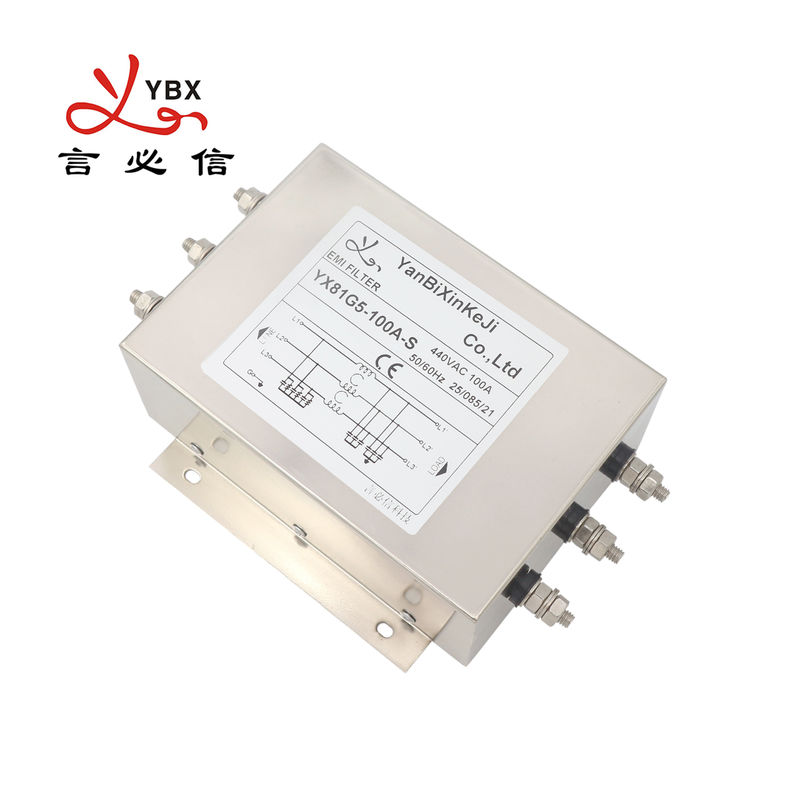

YX81G5-100A-S EMI Filter Picture:
