Two Stage Power Line Filter 115V 250V Single Phase EMI Filter Metal Case
YB22D1-3A-Q Power Line Filter:
YB22D1-3A-Q is the Dual-Stage Single Phase Filter. According to different equipment to choose the appropriate output mode, its connection mode can be selected fast-on terminal, M4 screw, electronic wire. The maximum rated current up to 50 amps. Designed with both common mode and differential mode performing high noise suppression.
Technical Specification:
Item | Power line Filter |
Model | EMI Filter YB22D1-3A-Q |
Transfer Function | Low Pass |
Package Type | Surface Mount |
Nominal Center Frequency | 10K-30MHZ |
Insertion Loss | 60~90dB |
Input Impedance | 50Ω |
Rated Voltage | 115V/250V |
Rated Current | 1~10A |
Environmental Temperature | 40°C |
Temperature Range | 25 / 085 / 21 |
Operating Frequency | 50/60HZ |
Line to Line | 1450VDC |
Line to Ground | 2250VDC |
Maximum Leakage Current | 250VAC/60HZ 0.8mA Max |
MOQ | 50pcs |
Features:
-- Designed 2 stage enhanced filtering to prevent the power supply may produce interference to the device
-- Various terminal options allow you to select
-- There are a variety of parts and combinations to meet different customer's EMC tests
-- Customized products according to customer's requirements.
Typical Applications:
-- Electrical and electronic equipment
-- Medical equipment
-- Building automation
-- Office automation and datacom equipment
Naming Rule:
YB | 22 | D1 | - | 3A | - | Q |
∣ | ∣ | ∣ | ∣ | ∣ | ||
Our brand | Circuit | Dimension | Current | Output Connection | ||
22:22 circuit | D1 | 6A :6 amp | Q:fast-on tab 250 | |||
10A :10 amp | W:wire | |||||
20A :20 amp | S:M4 screw |
Part No. | Case | Rated Currents (A) | Output Connections |
YB22D1-6A | D1 | 6 | Fast-on terminal |
YB22D1-10A | D1 | 10 | |
YB22D1-15A | D1 | 15 | Wire |
YB22D1-20A | D1 | 20 | |
YB22D1-30A | D1 | 30 | M4 Screw |
YB22D1-40A | D1 | 40 |
*Q: Fast-on 6.35x0.8mm
S: Screw lug
W: UL1015 18awg

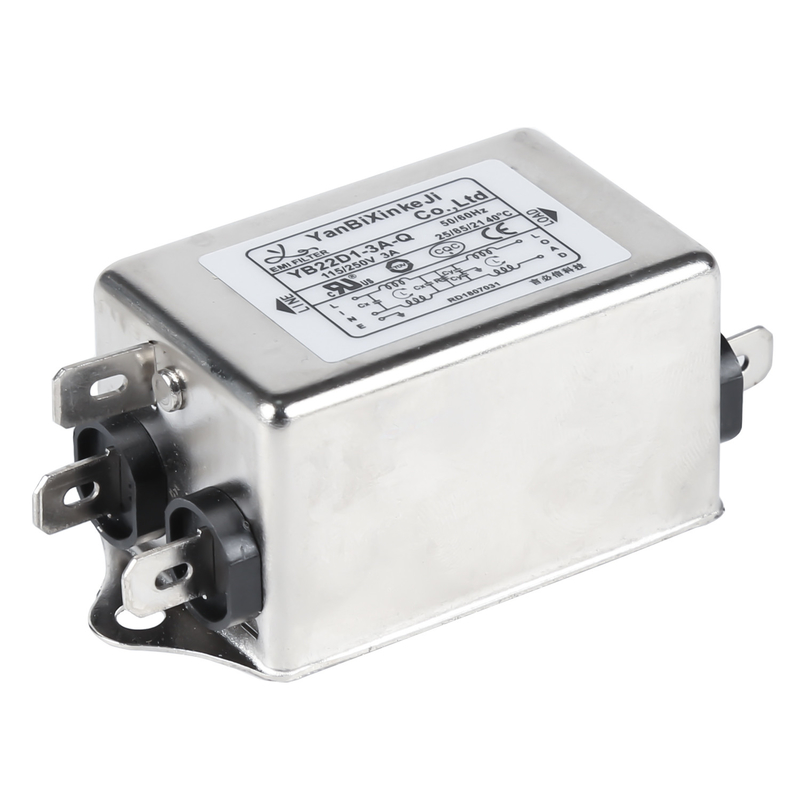

YB22D1-3A-Q EMI Filter Picture:
Electrical Schematic:
Mechanical Dimension(Unit: mm)
