50A Three Phase EMI Filter Four Lin RFI Suppression Filters For Plasma Etcher
YX93G5-50A-S 3 phase emi filter common mode noise filters emi suppression for VFD and Inverter
Description
Purify the power supply and filter out high-order harmonics. That is to say, the normal alternating current is a sine wave, but nowadays, there are a large number of rectifier and inverter equipment in the regional grid, so that there are high-order harmonics in the transmission line. These high-order harmonics will interfere with the normal operation of electronic equipment. When demanding electricity, users need to use a three-phase three-wire power filter to filter out higher harmonics, so as not to damage the electronic equipment
Feature
1. Under rated power, the harmonic current removal rate is as high as 95%, and the response speed is fast, and the response time of the harmonic compensation current will not exceed 10ms.
2. The three-phase power filter can inject single-phase dynamic compensation current into the power system, thereby effectively improving the three-phase unbalance of the system.
3. It can automatically eliminate resonance and ensure the safe operation of equipment, equipment and systems. The output and 100% current limit output can be set to ensure stable operation of the equipment for a long time.
4. Have good system voltage overvoltage protection, undervoltage protection, output overvoltage protection, overheat protection, control undervoltage protection
Specification
|
Item |
Three Phase Filter |
Rated Current |
50A |
|
Model |
YX93G5-50A-S |
Environmental Temperature |
40°C |
|
Transfer Function |
Low Pass |
Temperature Range |
25 / 085 / 21 |
|
Package Type |
Surface Mount |
Operating Frequency |
50/60HZ |
|
Nominal Center Frequency |
10K-30MHZ |
Line to Line |
1450VDC |
|
Insertion Loss |
50-90db |
2250VDC |
|
|
Rated Voltage |
250/440VAC |
Maximum Leakage Current |
440VAC/60HZ 3-10mA Max |
|
Flammability corresponding to |
UL 94V-0 |
MOQ |
Negotiable |
|
Lead Time |
3-7 days |
Price |
Negotiable |
Application
Public safety, renewable energy, touch screen, general dimmer; specific industries are medical and health care, industrial and commercial transportation, machinery industry, data communication, lighting, telecommunications and automation and control.
Advantage
1. After years of efforts of the company's personnel, products successively obtained the cUL,
TUV, CQC, CE, ROSH certifications.
2. We have a professional R&D team; our aim is we won't let customers spend any extra money!
3. National high-tech enterprises, brand assurance, reliable quality, and we have the relevant
product certifications.
4. We cooperate with top scientific research laboratories to provide free EMC rectification technical
support, samples; and free conduction test.
5. Automation technology, scale production, great price, excellent, service, fast delivery! Free replacement within three months, free maintenance within six years, life-long maintenance!
Filter Selection Table:
| Part No. | Case | Rated Currents (A) | Output Connections |
| YX93G5-10A | G5 | 10 | M4/M6/M8 screw |
| YX93G5-20A | G5 | 20 | |
| YX93G5-30A | G5 | 30 | Terminal block |
| YX93G5-40A | G5 | 40 | |
| YX93G5-50A | G5 | 50 | Copper bar |
B: Copper bar S: Screw lug T: Terminal block

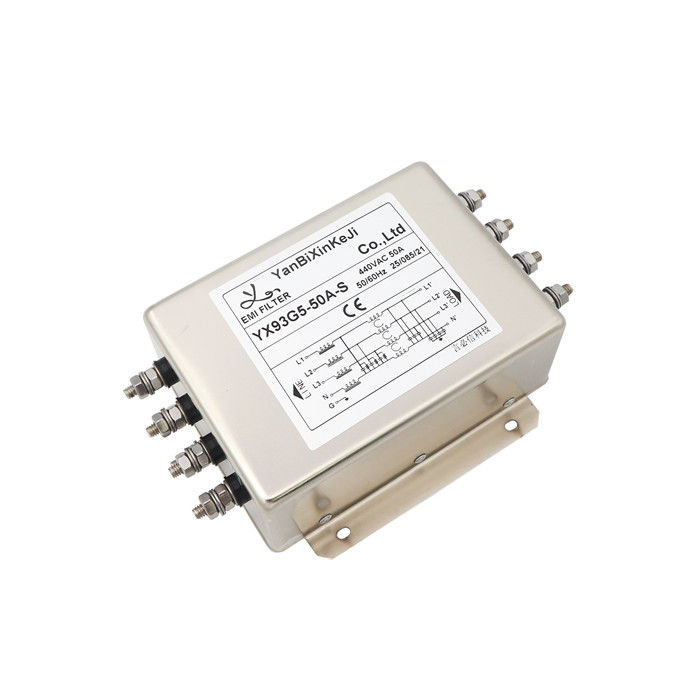

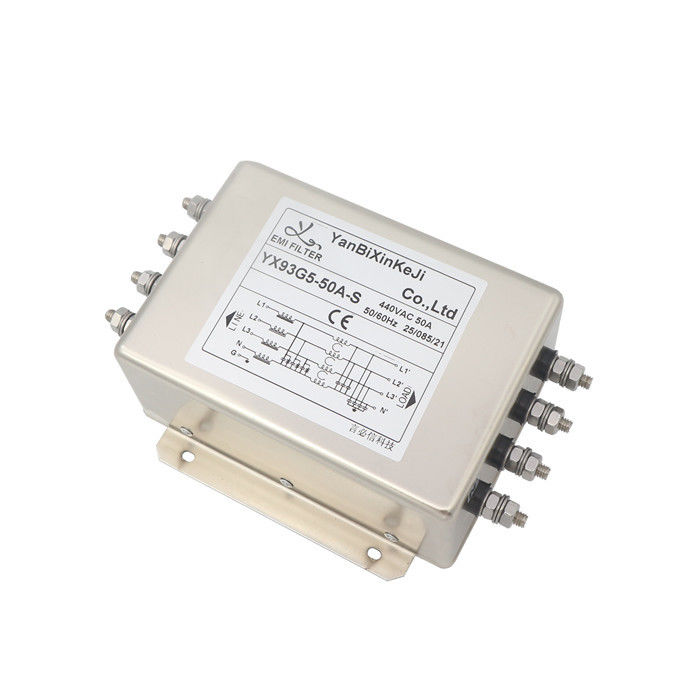

YX93G5-50A-S EMI Filter Picture:
Electrical Schematic
Mechanical Dimension
