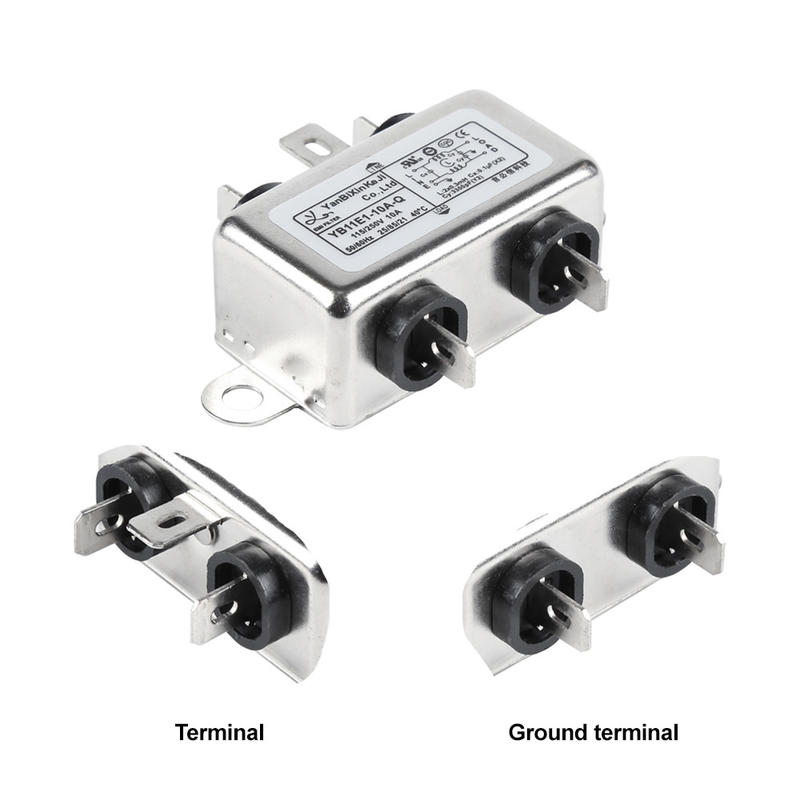

Low Pass Electrical Equipment AC 250V Socket EMI Filter 10A

Low Pass Electrical Equipment AC 250V Socket EMI Filter 10A
Low Pass Electrical Equipment AC 250V Socket EMI Filter 10A Low Pass Electrical Equipment AC 250V Socket EMI Filter 10A

Large Image :  Low Pass Electrical Equipment AC 250V Socket EMI Filter 10A

Product Details:
Place of Origin: China/shenzhen
Brand Name: YBX
Certification: UL, TUV, CE, CQC, ROHS
Model Number: YB11E1-10A-Q
Payment & Shipping Terms:
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: standard packaging
Delivery Time: 7-15days
Payment Terms: L/C, T/T
Supply Ability: 100000 Piece/Pieces per Month

Low Pass Electrical Equipment AC 250V Socket EMI Filter 10A

Description
Rated Voltage: 250/440VAC,50/60Hz Rated Current: 10A
Line To Line: 1450VDC Line To Ground: 2250VDC
Insertion Loss: 60~100dB Overload Current: 1.5x Rated Current For 1 Minute, Once Per Hour
High Light:

AC 250V Socket EMI Filter

,

10A EMI Filter

,

100dB EMI Filter

Low Pass Electrical Equipment AC 250V Socket EMI Filter 10A



emi filter 10A low pass electrical and electronic equipment





Description



Performance driven EMI filters are used to regulate and protect sensitive electronics from interference. These EMI filters not only drive technology, but are also used in other fields such as telecommunications. EMI filters protect all kinds of electrical apparatus, as all electrical and electronic appliances, equipment and systems have the potential to disturb other ones. Therefore, this must prevent such electromagnetic interference to a level which is acceptable to it’s surroundings. Therefore the noise emission must be low.



Feature



Product name: AC Socket EMI Filter
Rated voltage: AC 250V, 50/60Hz
Rated current: 10A
Number of positions: 3
Mounting type: Panel mount, flange; through hole
Termination: Solder quick connect
Material: Metal & plastic



Specification Of EMI Power Filter



Item

single-phase EMI FILTER

Rated Current

10A

Model

YB11E1-10A-Q

Environmental Temperature

40°C

Transfer Function

Low Pass

Temperature Range

25 / 085 / 21

Package Type

Surface Mount

Operating Frequency

50/60HZ

Nominal Center Frequency

10K-30MHZ

Line to Line

1450VDC

Insertion Loss

50~100dB

Line to Ground

2250VDC

Rated Voltage

250/115VAC

Maximum Leakage Current

220VAC/60HZ  3-10mA Max

Flammability corresponding to

UL 94V-0

MOQ

Negotiable

Lead Time

7-15 weekday

Price

Negotiable





Applications:



Hybrid vehicles; fuel cell vehicles; 42V power supply DC/DC converters; electric vehicle chargers; transmitters and receivers of sensors, etc.Electronic data processing and office equipment: personal computers; printers; computer peripherals; fax machines; copiers ;Monitor; plotter; computer host drive and control equipment: frequency converter; inverter



Advantages:



1. Customized:We have a professional R&D team; our aims is we won't let customers

spend any extra money.

2. Listed company:National high-tech enterprises, brand assurance, reliable quality, and

we have the relevant product certifications.

3. Rectification test: We cooperate with top scientific research laboratories to provide free EMC rectification technical support, samples; and free conduction test.

4. Scale production:Automation technology, scale production, great price,excellent, service, fast delivery! Free replacement within three months, free maintenance within six years, life-long maintenance!



Naming Rule:



YB 11-------E1----------10A-------------S/T/B

        |            |                |                    |

   circuit     case        current         connection

                                                     S: Screw

                                                     T: Terminal Block

                                                     B: Copper bar


Electrical Schematic
