Place of Origin:
China
Brand Name:
YBX
Certification:
cUL, ENEC, CE, ROHS, ISO
Model Number:
YX81G3-50A-S
Contact Us

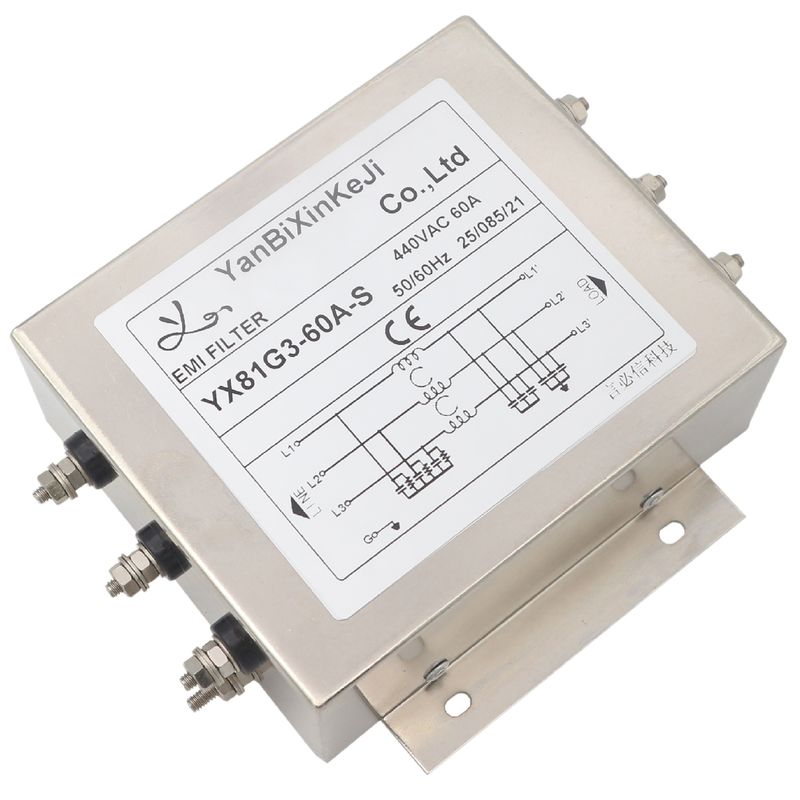

380V/440V Three Phase Filter High Attenuation Type 50A EMI/RFI Filter
Manufacturer 380V 440V 3 Phase EMI Filter Power AC line Noise EMC Filter with screw
Technical Specification:
| Item | 3 Phase EMI Filter |
| Model | 3 Phase EMI Filter -YX81G series |
| Transfer Function | Low Pass |
| Package Type | Surface Mount |
| Nominal Center Frequency | 10K-30MHZ |
| Insertion Loss | 60~90dB |
| Input Impedance | 50Ω |
| Rated Voltage | 380V/440V |
| Rated Current | 1A-100A |
| Environmental Temperature | 40°C |
| Temperature Range | 25 / 085 / 21 |
| Operating Frequency | 50/60HZ |
| Line to Line | 1450VDC |
| Line to Ground | 2250VDC |
| Maximum Leakage Current | 250VAC/60HZ 5mA Max. 440VAC/60HZ 10mA Max |
| MOQ | Negotiable |
| Price |
Negotiable |
| Lead Time | 15~25 weekday |
Features:
-- Protection against interference of voltage.
-- YX81 filters provide a broadband common and differential-mode attenuation performance, it still can be available when the interference is larger.
-- Customized products according to customer's requirements.
Typical Applications:
-- For photovoltaic systems and industrial applications
-- Three-phase motor drives
-- UPS/SMPS
-- Industrial automation equipment
Rule of Nomination:
YB-----81-------G3----------50A---------S
¦ ¦ ¦ ¦
circuit case current connection
Tabulates:
| Model No. | Rated Current @40°C |
Terminal Options* |
Leakage current 440V/50Hz | Electrical Schematic |
Rated Voltage(V) | Operating Frequency(Hz) | ||||||||||||||||||||||||||||||
| YX81G1-1A | 1A | Q | S | T | <1.0mA | Fig.1 | 250/440V | 50/60Hz | ||||||||||||||||||||||||||||
| YX81G1-3A | 3A | Q | S | T | Fig.1 | |||||||||||||||||||||||||||||||
| YX81G1-6A | 6A | Q | S | T | Fig.1 | |||||||||||||||||||||||||||||||
| YX81G1-10A | 10A | Q | S | T | Fig.1 | |||||||||||||||||||||||||||||||
| YX81G1-20A | 20A | Q | S | T | Fig.1 | |||||||||||||||||||||||||||||||
| YX81G1-30A | 30A | - | S | T | Fig.1 | |||||||||||||||||||||||||||||||
| YX81G2-30A | 30A | - | S | T | <2.0mA | Fig.1 | ||||||||||||||||||||||||||||||
| YX81G2-40A | 40A | - | S | T | Fig.1 | |||||||||||||||||||||||||||||||
| YX81G3-40A | 40A | - | S | T | <5.0mA | Fig.1 | ||||||||||||||||||||||||||||||
| YX81G3-50A | 50A | - | S | T | Fig.1 | |||||||||||||||||||||||||||||||
| YX81G3-60A | 60A | - | S | T | Fig.1 | |||||||||||||||||||||||||||||||
| YX81G5-80A | 80A | - | S | T | <7.0mA | Fig.1 | ||||||||||||||||||||||||||||||
| YX81G5-100A | 100A | - | S | T | Fig.1 | |||||||||||||||||||||||||||||||
| YX81G6-200A | 200A | - | S | T | <10.0mA | Fig.1 | ||||||||||||||||||||||||||||||
| Case | A | B | C | D | E | F | G | H | I | J | K | L | ||||||||||||||||||||||||||||
| G1 | 72 | 65 | 39 | 75 | 85 | 35 | 22 | 45 | M4 | M4/M6 | ||||||||||||||||||||||||||||||
| G2 | 98 | 80 | 40 | 95 | 105 | 50 | 20 | 4.5*6.5 | 50 | M4 | M4/M6 | |||||||||||||||||||||||||||||
| G3 | 120 | 100 | 50 | 115 | 130 | 50 | 28 | 4*6 | 60 | M4 | M4/M6 | |||||||||||||||||||||||||||||
| G5 | 150 | 105 | 60 | 120 | 135 | 55 | 35 | 4*6 | 90 | M6 | M8 | |||||||||||||||||||||||||||||
| G6 | 260 | 170 | 100 | 196 | 220 | 85 | 65 | 8*12 | 172 | M8 | M10 | |||||||||||||||||||||||||||||
| Tolerances | ±1 | ±1 | ±1 | ±0.15 | ±1 | ±0.5 | ±0.5 | ±0.15 | ±0.15 | ±0.15 | ||||||||||||||||||||||||||||||
Insertion loss table(In 50ohm system according IEC/CISPR No.17)
6/10A 20A
30A 40/50A
100/200A
The packing Specification:
CTN: 56.5*28.5*20.5CM 40PCS/CTN
N.W/PCS: 0.38KG
G.W/PCS: 0.39KG
The factory introduction:
The quality certifications:
Sample
Sample Fee: Negotiate
Sample Time: 3~5 days
Payment
---Payment terms: Western Union, D/P, T/T, L/C
---Please remember to leave the correct contact information for delivery.
Shipment
---Shipping terms: DHL, UPS, FedEx, TNT, EMS
---Port is Shenzhen or as requests.
RFQ:
Q: What are the main products of your company?
A: IEC inlet socket EMI filter, single-phase filter, Three-phase RFI filter, house appliance noise filter, Medical equipment filter, inver/converter EMC filter, etc.
Q: How is the quality of your product?
A: All our products have pass UL, TUV, CE, ROHS, ISO9001 approval. which ensures the quality of the product.
Q: What are services available for pre-batch orders?
A: Free samples and EMC technical rectification services are supplied before-sale
Q: What are services available after-sale?
A: Free replacement within three-month, free maintenance within six-year, life-long maintenance.
Q: What facilities do you have?
A: We have our own laboratory and production base to establish large-scale production.
Q: What the delivery time for 1000pcs of EMI FILTER?
A: Normally 15-20 days, but we can coordinate for a better delivery time if it is urgent.
