6A 220V Three Phase EMI Filter Mechanical Equipment Power Line Output

6A 220V Three Phase EMI Filter Mechanical Equipment Power Line Output

Three Phase EMI Filter Mechanical

220V Three Phase EMI Filter

6A Output Three Phase EMI Filter

Place of Origin:

China

Brand Name:

YBX

Certification:

CUL,TUV,CQC,CE,ROHS,CB,ENEC,REACH

Model Number:

YX81G1-6A-W

Contact Us

Request A Quote
Product Details
Product Name:
Power Line EMI Filter
Rated Voltage:
115/250VAC
Rated Current:
1-20A
Withstand Voltage:
L-N 500VDC | L/N-G 2250VDC
Climate Category:
-25°C~+85°C(25/85/21)
Transfer Function:
Low Pass
Input Impedance:
50Ω
Operating Frequency:
50/60HZ
Payment & Shipping Terms
Minimum Order Quantity
1000PCS
Price
Negotiable
Packaging Details
56.5*28.5*22.5cm(one box)
Delivery Time
5-8 Work Days
Payment Terms
T/T
Supply Ability
500000 Piece/Pieces per Month
Product Description

6A 220V Three Phase EMI Filter Mechanical Equipment Filter Power Line Output



1.Product Parameters:



Item name Power Line EMI Filter
Product series YX 81 series
Rated current 1A-20A
Rated voltage 120/250VAC
Maximum voltage 250VAC,50/60Hz
Operating frequency 50/ 60Hz
Rated current 1~50A@50°C
Design standard UL1283, CSA C22.2 No.8, IEC/EN 60939, CQC GB 15288/GB 15287-2008
Fire rating UL 94V-0
Applications Three phase motors, UPS/switching power supplies, industrial automation equipment
Related Certifications UL/cUL, ENEC, CE, RoHS



Product List:



Model No. Rated Current
@40°C
Terminal Options*

Leakage current

440V/50Hz

Electrical Schematic



Rated Voltage

(V)



Operating Frequency

(Hz)

6A 220V Three Phase EMI Filter Mechanical Equipment Power Line Output 0 6A 220V Three Phase EMI Filter Mechanical Equipment Power Line Output 1 6A 220V Three Phase EMI Filter Mechanical Equipment Power Line Output 2
YX81G1-1A 1A Q S T <1.0mA Fig.1 250/440V 50/60Hz
YX81G1-3A 3A Q S T Fig.1
YX81G1-6A 6A Q S T Fig.1
YX81G1-10A 10A Q S T Fig.1
YX81G1-20A 20A Q S T Fig.1

YX81G2-30A 30A - S T <2.0mA Fig.1
YX81G2-40A 40A - S T Fig.1
YX81G3-40A 40A - S T <5.0mA Fig.1
YX81G3-50A 50A - S T Fig.1
YX81G3-60A 60A - S T Fig.1
YX81G5-80A 80A - S T <7.0mA Fig.1
YX81G5-100A 100A - S T Fig.1
YX81G6-200A 200A - S T <10.0mA Fig.1



6A 220V Three Phase EMI Filter Mechanical Equipment Power Line Output 3

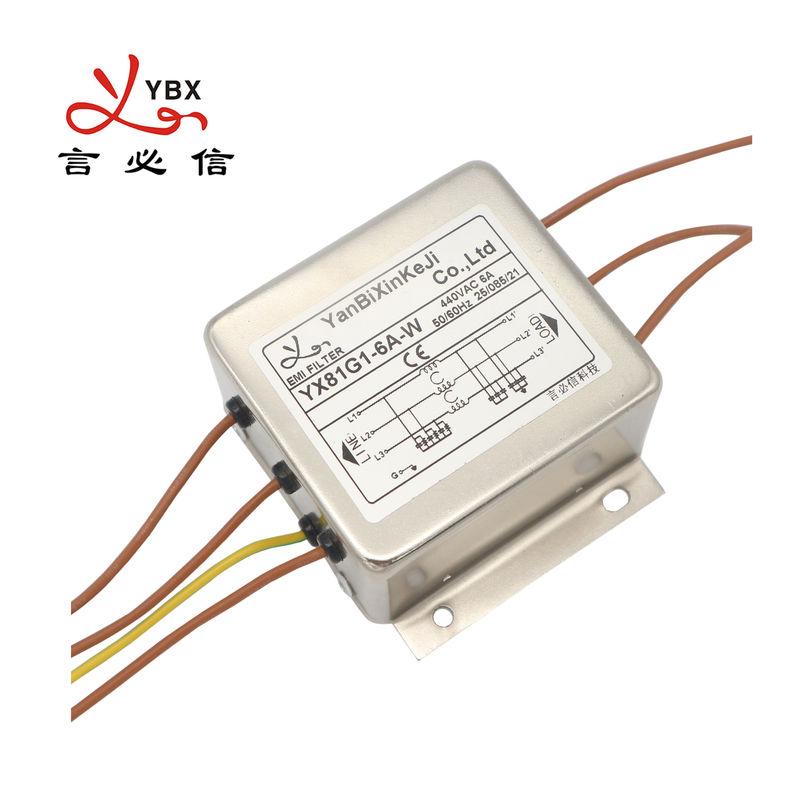

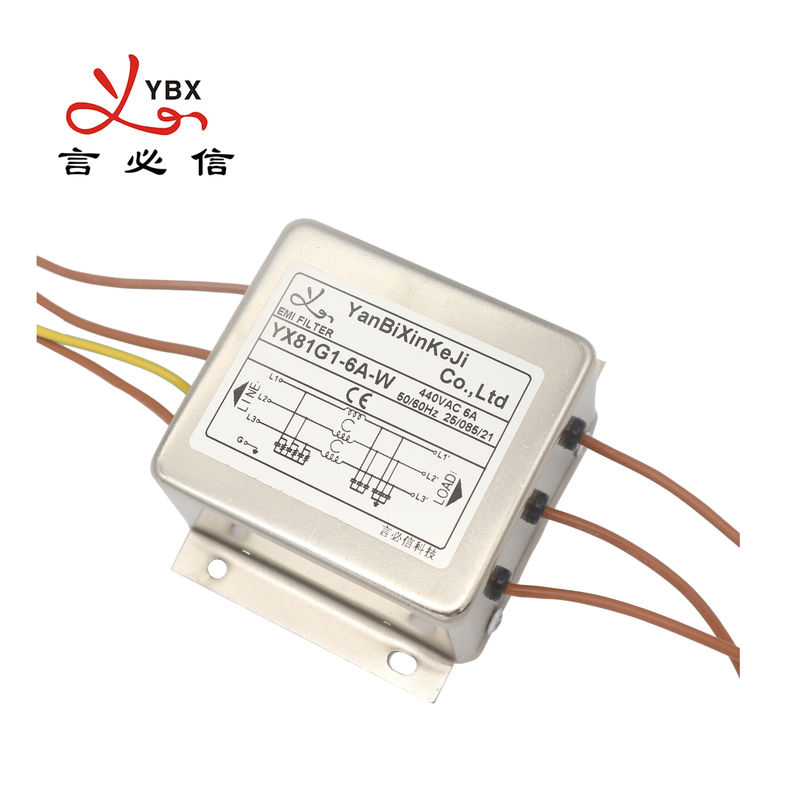

Product Picture:



6A 220V Three Phase EMI Filter Mechanical Equipment Power Line Output 46A 220V Three Phase EMI Filter Mechanical Equipment Power Line Output 5



Physical Dimensional:



6A 220V Three Phase EMI Filter Mechanical Equipment Power Line Output 6

6A 220V Three Phase EMI Filter Mechanical Equipment Power Line Output 7



Electrical schematic:



6A 220V Three Phase EMI Filter Mechanical Equipment Power Line Output 8



Insertion Loss (50 Ohm test system, IEC/CISPR No.17)



6A 220V Three Phase EMI Filter Mechanical Equipment Power Line Output 9







2.Typical Application



--Computer supporting equipment

--Testing and measuring instruments

--Household electrical equipment

--Mechanical and electrical products

--Medical equipment

--Medical beauty instruments

--New energy vehicles



6A 220V Three Phase EMI Filter Mechanical Equipment Power Line Output 10



3.Why choose us?



1.After years of efforts of the company's personnel, products successively obtained the cUL,TUV,CQC, CE, ROSH certifications.

2.We have a professional R&D team; our aims is we won't let customers spend any extra money!

3.National high-tech enterprises, brand assurance, reliable quality, and we have the relevant product certifications.

4.We cooperate with top scientific research laboratories to provide free EMC rectification technical support, samples; and free conduction test.

5.Automation technology, scale production, great price,excellent, service, fast delivery! Free replacement within three months, free maintenance within six years, life-long maintenance!



6A 220V Three Phase EMI Filter Mechanical Equipment Power Line Output 11



4.Certification



We have obtained ISO9001,CUL,TUV,CQC, CE, ROSH and other certifications.



6A 220V Three Phase EMI Filter Mechanical Equipment Power Line Output 12



5.FAQ



Q1: Do you support custom products?
A: Yes, we can develop new mold at you need if you can provide us with the samples or drawings and specification.

Q2: Are you a factory or a trader?
A: We are a manufacturer of EMI filters with 15 years of production experience.

Q3: How long is the delivery time?
A: We ensure fast delivery. Generally, it will take 2-5 days for samples; 10 to 15 for small orders, 15-25days for mass production after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Please contact us for details.

Q4: How about the payment terms?
A: We usually require T/T in advance. If the amount is more than 5000USD, we can do a 30% T/T deposit, a 70% T/T deposit before shipment, and a balance against shipment. And we also accept the L/C, Western Union, Paypal, etc.

Q5: What certifications do you have for your products?
A: We have certificates such as:ISO 9001, CE, TUV, UL, ROHS, ENEC, REACH, etc.
