4A 6A 10A Power Line Filter Low Pass EMI For Household Appliances

4A 6A 10A Power Line Filter Low Pass EMI For Household Appliances

Power Line Filter Low Pass EMI

10A Power Line Filter

250VAC Power Line Noise Filter

Place of Origin:

China

Brand Name:

YBX

Certification:

CUL,TUV,CQC,CE,ROHS,CB,ENEC,REACH

Model Number:

YB27D4-6A-W

Contact Us

Request A Quote
Product Details
Filter Name:
Power Line Noise Filter
Transfer Function:
Low Pass
Nominal Center Frequency:
50/60Hz
Insertion Loss:
30-100dB
Rated Current:
1A-10A
Rated Voltage:
115/250VAC
Payment & Shipping Terms
Minimum Order Quantity
1000PCS
Price
Negotiable
Packaging Details
56.5*28.5*22.5cm(one box)
Delivery Time
5-8 Work Days
Payment Terms
T/T
Supply Ability
500000 Piece/Pieces per Month
Product Description

4A 6A 10A Power Line Filter Low Pass EMI Filter For Household Appliances



1.Product Features:



Product Name Low Pass EMI Filter
Model YB27D4-6A-W
Transfer Function Low Pass
Package Type Surface Mount/Bolts Mount
Nominal Center Frequency 150KHZ-30MHZ
Insertion Loss 30~90dB
Input Impedance 50Ω
Rated Voltage 115V/250V
Rated Current 1~10A
Environmental Temperature 40°C
Temperature Range -25℃~+85℃
Operating Frequency 50/60HZ
Line to Line 500VDC
Line to Ground 2250VDC
Maximum Leakage Current 250VAC/60HZ 7mA Max
MOQ 1000pcs
Price Ask customer service
Lead Time 5~20 weekday

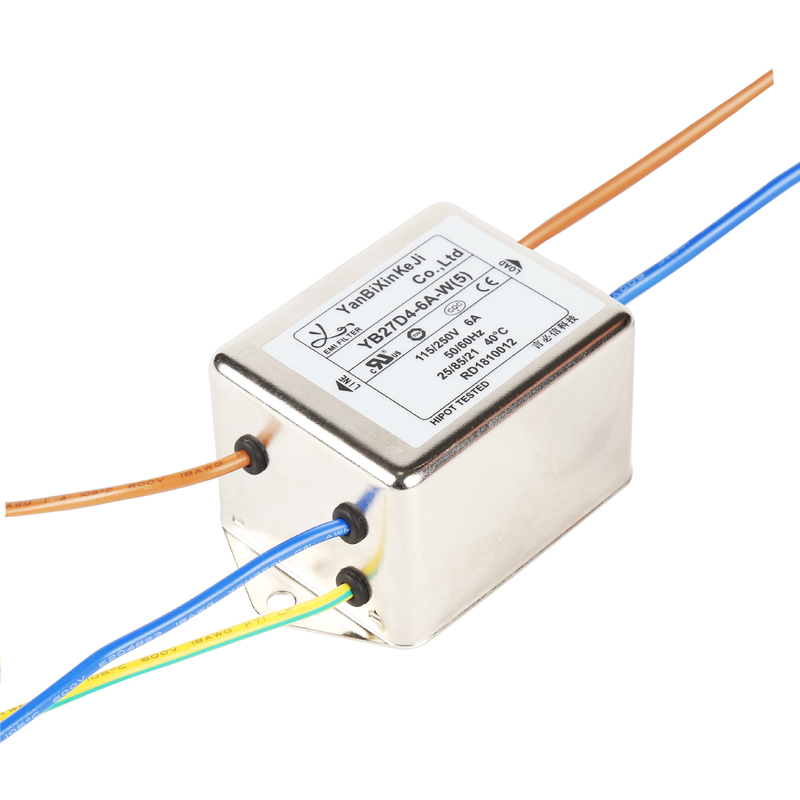

Product Picture:



4A 6A 10A Power Line Filter Low Pass EMI For Household Appliances 0



Physical Dimensional:

4A 6A 10A Power Line Filter Low Pass EMI For Household Appliances 1



Electrical Schematic:



4A 6A 10A Power Line Filter Low Pass EMI For Household Appliances 2



2.Typical Application



--LED lighting equipment

--Computer supporting equipment

--Financial equipment

--Testing and measuring instruments

--Household electrical equipment

--Fitness equipment

--Mechanical and electrical products

--Medical equipment

--Medical beauty instruments

--New energy vehicles



4A 6A 10A Power Line Filter Low Pass EMI For Household Appliances 3



3.Our Strengths



1.After years of efforts of the company's personnel, products successively obtained the cUL,TUV,CQC, CE, ROSH certifications.

2.We have a professional R&D team; our aims is we won't let customers spend any extra money!

3.National high-tech enterprises, brand assurance, reliable quality, and we have the relevant product certifications.

4.We cooperate with top scientific research laboratories to provide free EMC rectification technical support, samples; and free conduction test.

5.Automation technology, scale production, great price,excellent, service, fast delivery! Free replacement within three months, free maintenance within six years, life-long maintenance!



4A 6A 10A Power Line Filter Low Pass EMI For Household Appliances 4



4.Certification



We have obtained ISO9001,CUL,TUV,CQC, CE, ROSH and other certifications.



4A 6A 10A Power Line Filter Low Pass EMI For Household Appliances 5

5.FAQ



Q1: Do you support custom products?
A: Yes, we can develop new mold at you need if you can provide us with the samples or drawings and specification.

Q2: Are you a factory or a trader?
A: We are a manufacturer of EMI filters with 15 years of production experience.

Q3: How long is the delivery time?
A: We ensure fast delivery. Generally, it will take 2-5 days for samples; 10 to 15 for small orders, 15-25days for mass production after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Please contact us for details.

Q4: How about the payment terms?
A: We usually require T/T in advance. If the amount is more than 5000USD, we can do a 30% T/T deposit, a 70% T/T deposit before shipment, and a balance against shipment. And we also accept the L/C, Western Union, Paypal, etc.

Q5: What certifications do you have for your products?
A: We have certificates such as:ISO 9001, CE, TUV, UL, ROHS, ENEC, REACH, etc.
