Place of Origin:
China
Brand Name:
YBX
Certification:
CUL,TUV,CQC,CE,ROHS,CB,ENEC,REACH
Model Number:
YB21D2-6A-Q
Contact Us
Video
Video
YB21D2-6A-Q EMI Filter Fast Terminals Output Filter Single Phase Filter
1.Product Details
| Product Name | Fast Terminals Output Filter |
| Model | YB21D3-6A-Q |
| Transfer Function | Low Pass |
| Package Type | Surface Mount/Bolts Mount |
| Nominal Center Frequency | 150K-30MHZ |
| Insertion Loss | 30~90dB |
| Input Impedance | 50Ω |
| Rated Voltage | 120V/250V |
| Rated Current | 1~10A |
| Environmental Temperature | 40°C |
| Temperature Range | -25℃~+85℃ |
| Operating Frequency | 50/60HZ |
| Line to Line | 500VDC |
| Line to Ground | 2250VDC |
| Maximum Leakage Current | 250VAC/60HZ 7mA Max |
| MOQ | 1000pcs |
| Packing of one box | 56.5*28.5*22.5cm |
| Lead Time | 5~20 weekday |

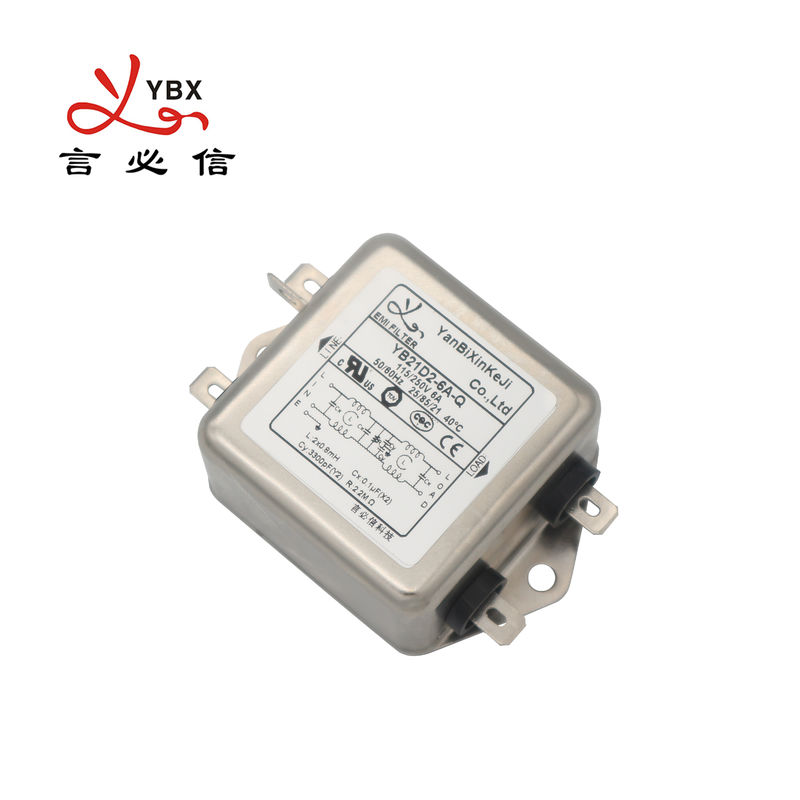

Product Picture:
Physical Dimensional:
Electrical Schematic:
2.Application Field
--LED lighting equipment
--Computer supporting equipment
--Financial equipment
--Testing and measuring instruments
--Household electrical equipment
--Fitness equipment
--Mechanical and electrical products
--Medical equipment
--Medical beauty instruments
--New energy vehicles
3.Certification
We have obtained ISO9001,CUL,TUV,CQC, CE, ROSH and other certifications.
4. FAQ
Q1: What is the price of the EMI Filter?
A1: The price of the product will be determined by the order quantity and the specific model.
Q2: Are you a factory or a trader?
A2: We are a manufacturer of EMI filters with 15 years of production experience.
Q3: How long is the delivery time?
A3: We ensure fast delivery. Generally, it will take 2-5 days for samples; 10 to 15 for small orders, 15-25days for mass production after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Please contact us for details.
Q4: How about the payment terms?
A4: We usually require T/T in advance. If the amount is more than 5000USD, we can do a 30% T/T deposit, a 70% T/T deposit before shipment, and a balance against shipment. And we also accept the L/C, Western Union, Paypal, etc.
Q5: What certifications do you have for your products?
A5: We have certificates such as:ISO 9001, CE, TUV, UL, ROHS, ENEC, REACH, etc.
