YB16T5 White Plastic Housing EMI Filter 220V 16A Power Filter For Washing Machine
1. Low leakage, high security and reliability.
Technical Specification:
| Item | White Plastic Housing EMI Filter |
| Model | YB16T5-16A-Q(R) |
| Transfer Function | Low Pass |
| Package Type | Surface Mount |
| Nominal Center Frequency | 10K-30MHZ |
| Insertion Loss | 60~90dB |
| Input Impedance | 50Ω |
| Rated Voltage | 115V/250V |
| Rated Current | 1~16A |
| Environmental Temperature | 40°C |
| Temperature Range | 25 / 085 / 21 |
| Operating Frequency | 50/60HZ |
| Line to Line | 1450VDC |
| Line to Ground | 2250VDC |
| Maximum Leakage Current | 250VAC/60HZ 0.8mA Max |
Features:
-- Rated currents from 1 to 10A
-- General purpose filtering performance
-- Optional medical versions((R5) type)
-- Customized products according to customer's requirements.
Typical Applications:
-- Electrical and electronic equipment
-- Medical equipment
-- Datacom equipment
-- Office automation equipment
Filter Selection Table:
| Part No. | Case | Rated Currents (A) | Output Connections |
| YB16T5-1A | T5 | 1 | Fast-on terminal |
| YB16T5-4A | T5 | 4 | |
| YB16T5-8A | T5 | 8 | M4/M6/M8 Screw |
| YB16T5-10A | T5 | 10 | |
| YB16T5-16A | T5 | 16 | Wire |
*Q: Fast-on 6.35x0.8mm S: Screw lug W: UL1015 18awg
Tabulates:
| Model No. | Rated Current @40°C |
Terminal Options | Leakage current 250V/50Hz | Electrical Schematic | Rated Voltage(V) | Operating Frequency(Hz) | ||
| YB16T1-1A | 1A | Q | - | W | <0.8mA | Fig.1 | 115/250V | 50/60Hz |
| YB16T1-4A | 4A | Q | - | W | Fig.1 | |||
| YB16T1-10A | 10A | Q | - | W | Fig.1 | |||
| YB16T2-6A | 6A | Q | - | W | Fig.1 | |||
| YB16T2-10A | 10A | Q | - | W | Fig.1 | |||
| YB16T2-16A | 16A | Q | - | W | Fig.1 | |||
| YB16T3-6A | 6A | Q | - | W | Fig.1 | |||
| YB16T3-10A | 10A | Q | - | W | Fig.1 | |||
| YB16T3-16A | 6A | Q | - | W | Fig.1 | |||
| YB16T4-6A | 1A | Q | - | W | Fig.1 | |||
| YB16T4-10A | 3A | Q | - | W | Fig.1 | |||
| YB16T4-16A | 6A | Q | - | W | Fig.1 | |||
| YB12T5-4A | 4A | Q | - | W | Fig.2 | |||
| YB12T5-6A | 6A | Q | - | W | Fig.2 | |||
Electrical Schematic & Mechanical Dimension(Unit: mm)

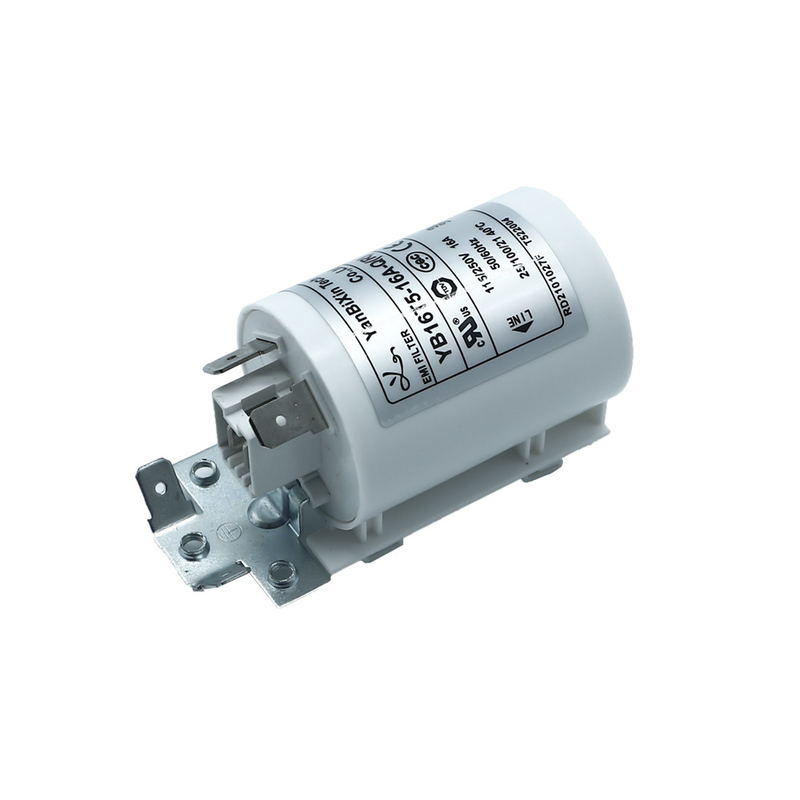

YB16T5-16A-Q(R) EMI Filter Picture:
Insertion loss table(In 50ohm system according IEC/CISPR No.17)
