YB16T5-16A-Q 115V 250V 16A EMI EMC Filter White Plastic Housing Mains Filter For Home Appliances

YB16T5-16A-Q 115V 250V 16A EMI EMC Filter White Plastic Housing Mains Filter For Home Appliances

16A EMI EMC Filter

White Plastic EMI EMC Filter

YB16T5-16A-Q EMI EMC Filter

Place of Origin:

China

Brand Name:

YBX

Certification:

CQC CE CB TUV ROHSE

Model Number:

YB16T5-16A-Q(R)

Contact Us

Request A Quote
Product Details
Product Name:
Plastic Case Power Filter
Rated Voltage:
120/250VAC
Rated Current:
1A~16A
Input Impedance:
50ohm
Insertion Loss:
30-100dB
Application:
Home Appliances
Payment & Shipping Terms
Minimum Order Quantity
200pcs
Price
Negotiable
Packaging Details
56.5*28.5*22.5cm
Delivery Time
5-8 work day
Payment Terms
T/T, L/C
Supply Ability
60000 Pieces/month
Product Description

YB16T5-16A-Q White Plastic Housing Mains Filter Home 115V/250V 16A EMI Filter for Home Appliances



We have the relevant product's certificates,multiple installation options are available, product can be customized working with the top research LABS to provide free EMC diagnostic test



Product Features:

1. Low leakage, high security and reliability.

2. Plastic cover, easy to install.
3. Especially designed for household electric appliances, with high performance/price ratio.



Technical Specification:



Item Mains Filter For Home Appliance
Model YB16T5-16A-Q(R)
Transfer Function Low Pass
Package Type Surface Mount
Nominal Center Frequency 10K-30MHZ
Insertion Loss 60~90dB
Input Impedance 50Ω
Rated Voltage 115V/250V
Rated Current 1~16A
Environmental Temperature 40°C
Temperature Range 25 / 085 / 21
Operating Frequency 50/60HZ
Line to Line 1450VDC
Line to Ground 2250VDC
Maximum Leakage Current 250VAC/60HZ 0.8mA Max



Features:



-- Rated currents from 1 to 16A



-- General purpose filtering performance



-- Optional medical versions((R5) type)



-- Customized products according to customer's requirements.



Typical Applications:



-- Electrical and electronic equipment



-- Medical equipment



-- Datacom equipment



-- Office automation equipment







Filter Selection Table:



Part No. Case Rated Currents (A) Output Connections
YB16T5-1A T5 1 Fast-on terminal
YB16T5-4A T5 4
YB16T5-8A T5 8 M4/M6/M8 Screw
YB16T5-10A T5 10
YB16T5-16A T5 16 Wire



YB16T5-16A-Q 115V 250V 16A EMI EMC Filter White Plastic Housing Mains Filter For Home Appliances 0*Q: Fast-on 6.35x0.8mm YB16T5-16A-Q 115V 250V 16A EMI EMC Filter White Plastic Housing Mains Filter For Home Appliances 1S: Screw lug YB16T5-16A-Q 115V 250V 16A EMI EMC Filter White Plastic Housing Mains Filter For Home Appliances 2W: UL1015 18awg



Tabulates:



Model No. Rated Current
@40°C
Terminal Options Leakage current 250V/50Hz Electrical Schematic Rated Voltage(V) Operating Frequency(Hz)

YB16T1-1A 1A Q - W <0.8mA Fig.1 115/250V 50/60Hz
YB16T1-4A 4A Q - W Fig.1
YB16T1-10A 10A Q - W Fig.1
YB16T2-6A 6A Q - W Fig.1
YB16T2-10A 10A Q - W Fig.1
YB16T2-16A 16A Q - W Fig.1
YB16T3-6A 6A Q - W Fig.1
YB16T3-10A 10A Q - W Fig.1
YB16T3-16A 6A Q - W Fig.1
YB16T4-6A 1A Q - W Fig.1
YB16T4-10A 3A Q - W Fig.1
YB16T4-16A 6A Q - W Fig.1
YB12T5-4A 4A Q - W Fig.2
YB12T5-6A 6A Q - W Fig.2



Electrical Schematic & Mechanical Dimension(Unit: mm)



YB16T5-16A-Q 115V 250V 16A EMI EMC Filter White Plastic Housing Mains Filter For Home Appliances 3

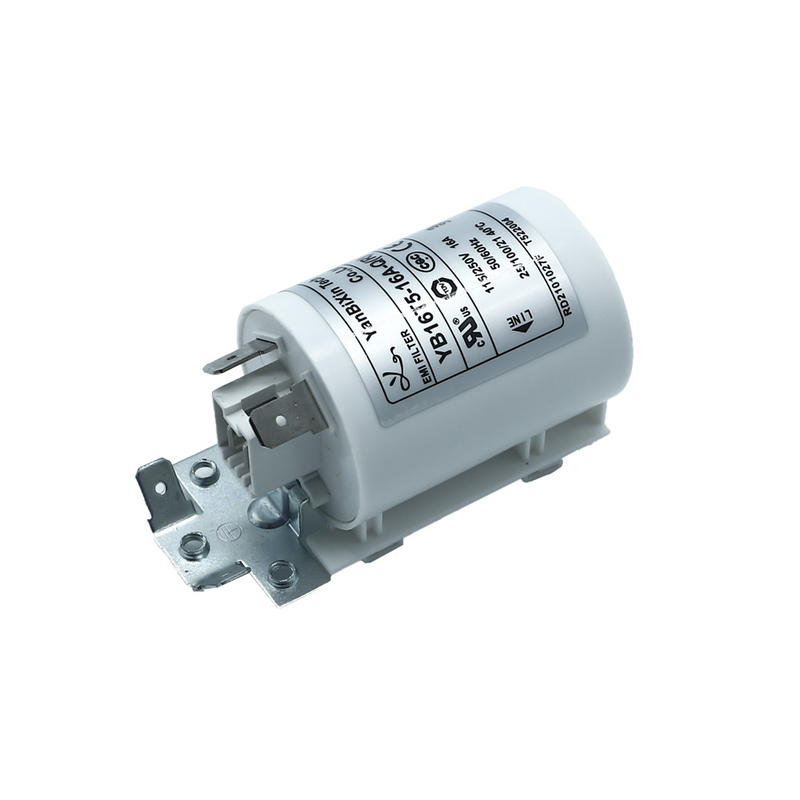

YB16T5-16A-Q(R) EMI Filter Picture:



YB16T5-16A-Q 115V 250V 16A EMI EMC Filter White Plastic Housing Mains Filter For Home Appliances 4


Insertion loss table(In 50ohm system according IEC/CISPR No.17)



YB16T5-16A-Q 115V 250V 16A EMI EMC Filter White Plastic Housing Mains Filter For Home Appliances 5
