YB22A5-20A-Q IEC Inlet EMI Filter UL Certificates 115V 250V Socket Type Mains Filter

YB22A5-20A-Q IEC Inlet EMI Filter UL Certificates 115V 250V Socket Type Mains Filter

IEC Inlet EMI Filter

YB22A5-20A-Q Inlet EMI Filter

Place of Origin:

China

Brand Name:

YBX

Certification:

CQC CE CB TUV ROHSE

Model Number:

YB22A5-20A-Q

Contact Us

Request A Quote
Product Details
Product Name:
A5 IEC Inlet EMI Filter
Rated Current:
1A~20A
Rated Voltage:
115VAC/250VAC
Operating Frequency:
50/60Hz
Insertion Loss:
30-100dB
Inlet Socket:
IEC60320 C14
Payment & Shipping Terms
Minimum Order Quantity
200pcs
Price
Negotiable
Packaging Details
56.5*28.5*22.5cm
Delivery Time
5-8 work day
Payment Terms
T/T, L/C
Supply Ability
60000 Pieces/month
Product Description

YB22A5-20A-Q IEC Inlet EMI Filter UL Certificates 115V/250V Socket Type Mains Filter



We have the relevant product's certificates,multiple installation options are available, product can be customized working with the top research LABS to provide free EMC diagnostic test



Technical Specification:



Item A5 IEC Inlet Filter
Model YB22A5-20A-Q
Transfer Function Low Pass
Package Type Surface Mount
Nominal Center Frequency 10K-30MHZ
Insertion Loss 60~90dB
Input Impedance 50Ω
Rated Voltage 125VAC 250VAC
Rated Current 1A~20A
Environmental Temperature 40°C
Temperature Range 25 / 085 / 21
Operating Frequency 50/60HZ
Line to Line 1450VDC
Line to Ground 2250VDC
Maximum Leakage Current 115VAC/50HZ 0.3uA Max
MOQ 500pcs
Price USD1~2/Meter
Lead Time 5~15 weekday



Features:



-- Excellent performance/compact structure



-- Screw-on version from front rear side



-- Optional medical versions((R5) type)



-- Quick connect(6.35*0.8mm),solder or wire



-- High performance and high attenuation power filters with IEC 320 socket



-- (R5) types comply with the requirements of IEC/EN60601-1 for safety clearance, leakage current and high hipot testing.



-- There are a variety of parts and combinations to meet different customer's EMC tests.



-- Customized products according to customer's requirements



Typical Applications:



-- Specially designed for LCD and PDP TV,medical applications,general electrical appliances.



-- Medical equipment



-- Test and measurement equipment



-- Small and medium-sized machines and household equipment



-- Single-phase power supplies, switch-mode power supplies



Rule of Nomination:



YB 22 A5 - 20A - Q
| | |   |   |
Single Phase Circuit Dimension   Current   Output Connection
  22:22 circuit A15   10A : 10 amp   Q:fast-on tab 250
        15A : 15 amp   W:wire
        20A : 20 amp   S:Solder Lug Terminals



YB22A5-20A-Q IEC Inlet EMI Filter UL Certificates 115V 250V Socket Type Mains Filter 0*Q: Fast-on 6.35x0.8mm YB22A5-20A-Q IEC Inlet EMI Filter UL Certificates 115V 250V Socket Type Mains Filter 1 S: solder 4.0x0.8mm YB22A5-20A-Q IEC Inlet EMI Filter UL Certificates 115V 250V Socket Type Mains Filter 2 W: UL1015 18awg



Tabulates:



Model No. Rated Current
@40°C
Terminal Options* Bleeder resistor (optional) G (optional) Leakage current 250V/50Hz Electrical Schematic Rated Voltage Operating Frequency (Hz)


YB11A1-1A 1A Q S W - -

  <0.8mA

Fig.1













115/250V













50/60Hz

YB11A1-2A 2A Q S W - - Fig.1
YB11A1-3A 3A Q S W - - Fig.1
YB11A1-4A 4A Q S W - - Fig.1
YB11A1-6A 6A Q S W - - Fig.1
YB11A1-8A 8A Q S W - - Fig.1
YB11A1-10A 10A Q S W - - Fig.1
YB11A1-15A 15A Q S W - - Fig.1
YB11A2-1A 1A Q S W - - Fig.1
YB11A2-2A 2A Q S W - - Fig.1
YB11A2-3A 3A Q S W - - Fig.1
YB11A2-4A 4A Q S W - - Fig.1
YB11A2-6A 6A Q S W - - Fig.1
YB11A2-8A 8A Q S W - - Fig.1
YB11A2-10A 10A Q S W - - Fig.1
YB11A2-15A 15A Q S W - - Fig.1

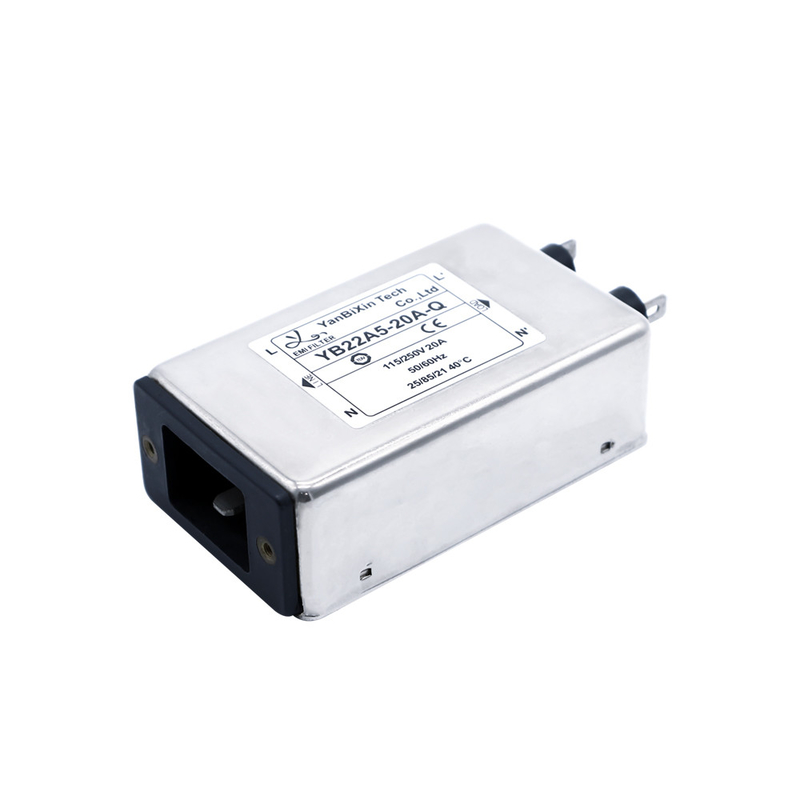

YB22A5-20A-Q IEC Inlet Filter Picture:



YB22A5-20A-Q IEC Inlet EMI Filter UL Certificates 115V 250V Socket Type Mains Filter 3



YB22A5-20A-Q IEC Inlet EMI Filter UL Certificates 115V 250V Socket Type Mains Filter 4



Insertion loss table(In 50ohm system according IEC/CISPR No.17)



YB22A5-20A-Q IEC Inlet EMI Filter UL Certificates 115V 250V Socket Type Mains Filter 5
